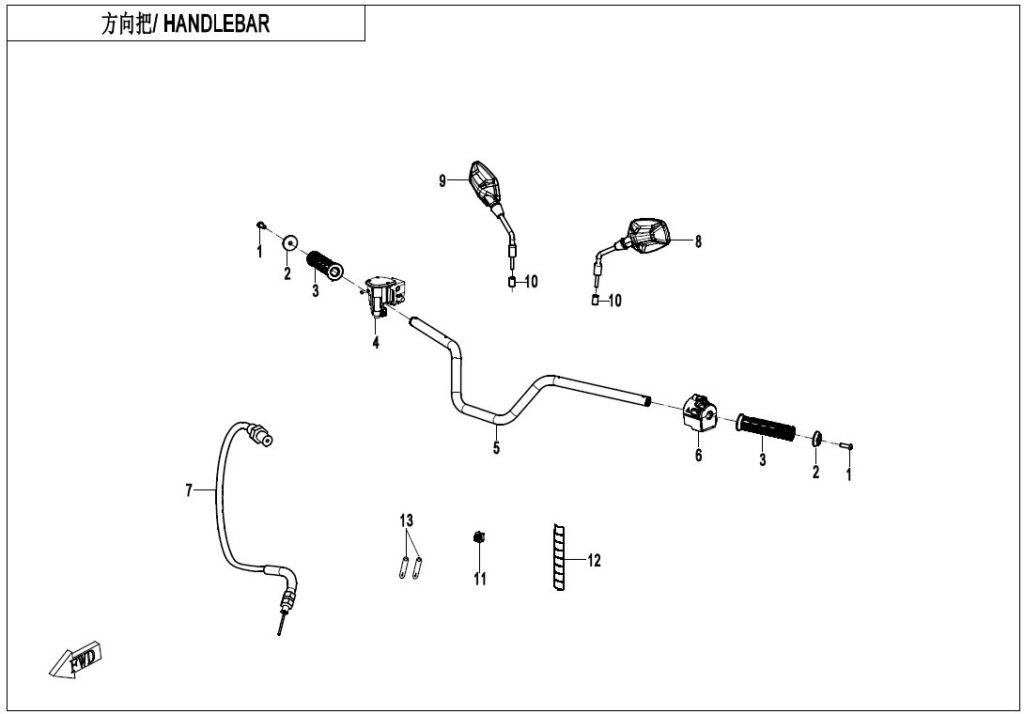

F10-1 HANDLEBAR
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SCREW M8x20 30121-080020870 | Skladem | 15,54 Kč | ||
| 2 | END CAP, HANDLEBAR 9DQV-100003-3000 | Skladem | 15,54 Kč | ||
| 3 | HANDLEBAR RUBBER SLEEVE 9NTV-100002-1200 | Skladem | 201,97 Kč | ||
| 4 | 2WD/4WD SWITCH ASSY 9DQV-169080-1600 | Skladem | 1 879,90 Kč | ||
| 4 | 2WD/4WD SWITCH ASSY 9DQV-169080-1100 | Skladem | 1 973,12 Kč | ||
| 5 | HANDLEBAR ASSY 9DQV-101100-1101-0BP00 | Skladem | 1 273,98 Kč | ||
| 6 | LH HANDLEBAR SWITCH ASSY 9DQV-166000-1100 | Skladem | 1 973,12 Kč | ||
| 7 | THROTTLE CABLE 9DQV-105000-1102 | Skladem | 186,44 Kč | ||
| 8 | LH REARVIEW MIRROR ASSY 9DQV-200100-1100 | Skladem | 295,19 Kč | ||
| 9 | RH REARVIEW MIRROR ASSY 9DQV-200200-1100 | Skladem | 295,19 Kč | ||
| 10 | REARVIEW MIRROR BUSHING 9NTV-100813-1200-0BP00 | Skladem | 62,15 Kč | ||
| 11 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 12 | SPIRAL PROTECTIVE SLEEVE 9DQV-100004-1100 | Skladem | 31,07 Kč | ||
| 13 | TIE BAND, CLUTCH 6KJ0-100002 | Skladem | 29,02 Kč | ||
