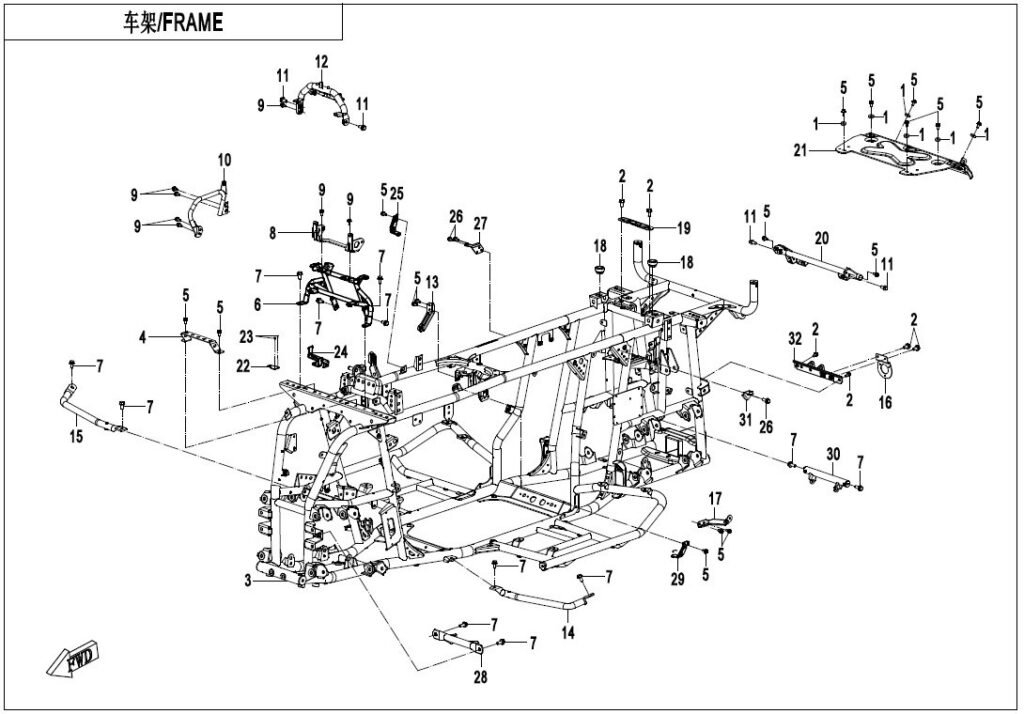

F03 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Podložka 30309-060900 | Skladem | 15,54 Kč | ||
| 2 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 3 | FRAME ASSY 9CQV-031000-1302-0BP00 | Skladem | 32 517,69 Kč | ||
| 4 | CABLE LOCK PLATE 1 9DQV-032005-1101 | Skladem | 77,68 Kč | ||
| 5 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 6 | DASHBOARD GUARD BRACKET ASSY 9DQV-171300-1102 | Skladem | |||
| 7 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 8 | DASHBOARD GUARD MOUNTING PLATE 9DQV-171400-1101 | Skladem | 233,05 Kč | ||
| 9 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 10 | COVER SUPPORT ASSY 9DQV-032200-1100 | Skladem | 217,51 Kč | ||
| 11 | Šroub 30023-080016810 | Není skladem | 15,54 Kč | ||
| 12 | SEAT FRONT BRACKET 9DQV-130020-1101 | Skladem | 341,80 Kč | ||
| 12 | SEAT FRONT BRACKET 9DQV-130020-1102 | Skladem | |||
| 13 | RH COVER MOUNTING PLATE 9DQV-032112-1100 | Skladem | 46,61 Kč | ||
| 14 | FOOT PEDAL FRONT LH SUPPORT PIPE ASSY 9CQV-032001-1301 | Skladem | 264,12 Kč | ||
| 15 | FOOT PEDAL FRONT RH SUPPORT PIPE ASSY 9CQV-032002-1301 | Skladem | 264,12 Kč | ||
| 16 | BRACKET 2. TRAILER POWER 9DQV-400030-3000 | Není skladem | 124,29 Kč | ||
| 17 | LH COVER MOUNTING PLATE 9DQV-032113-1100 | Skladem | 46,61 Kč | ||
| 18 | LIMIT BLOCK 9NTV-133000-1200 | Skladem | 46,61 Kč | ||
| 19 | SEAT LOCK HOOK ASSY 9DQV-130010-1100 | Skladem | 77,68 Kč | ||
| 20 | TAIL LIGHT COVER SUPPORT 9DQV-032001-1100 | Skladem | 264,12 Kč | ||
| 21 | REAR FENDER HEAT INSULATOR 9DQV-021350-1100 | Skladem | 745,75 Kč | ||
| 22 | RELAY BRACKET 9DQV-032008-1100 | Skladem | 15,54 Kč | ||
| 23 | SELF-TAPPING SCREW ST3.5×9.5 30110-350095010 | Skladem | 15,54 Kč | ||
| 24 | T-BOX BRACKET 9DQV-032300-1102 | 1 | |||
| 25 | AIR FILTER RH MOUNTING PLATE 9DQV-032004-1100 | Skladem | 46,61 Kč | ||
| 26 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 27 | REAR RH FENDER MOUNTING ASSY 9DQV-031821-1100 | Skladem | 62,15 Kč | ||
| 28 | FRONT GEAR CASE UPPER FIXED SEAT 9DQV-310010-1100 | Skladem | 279,66 Kč | ||
| 29 | AIR FILTER LH MOUNTING PLATE 9DQV-032003-1100 | Skladem | 46,61 Kč | ||
| 30 | REAR GEAR CASE UPPER FIXED SEAT 9DQV-330010-1100 | Skladem | 419,48 Kč | ||
| 31 | REAR LH FENDER MOUNTING ASSY 9DQV-031820-1100 | Skladem | 62,15 Kč | ||
| 32 | MUFFLER MOUNTING PLATE 9DQV-021310-1100 | Skladem | 201,97 Kč | ||
