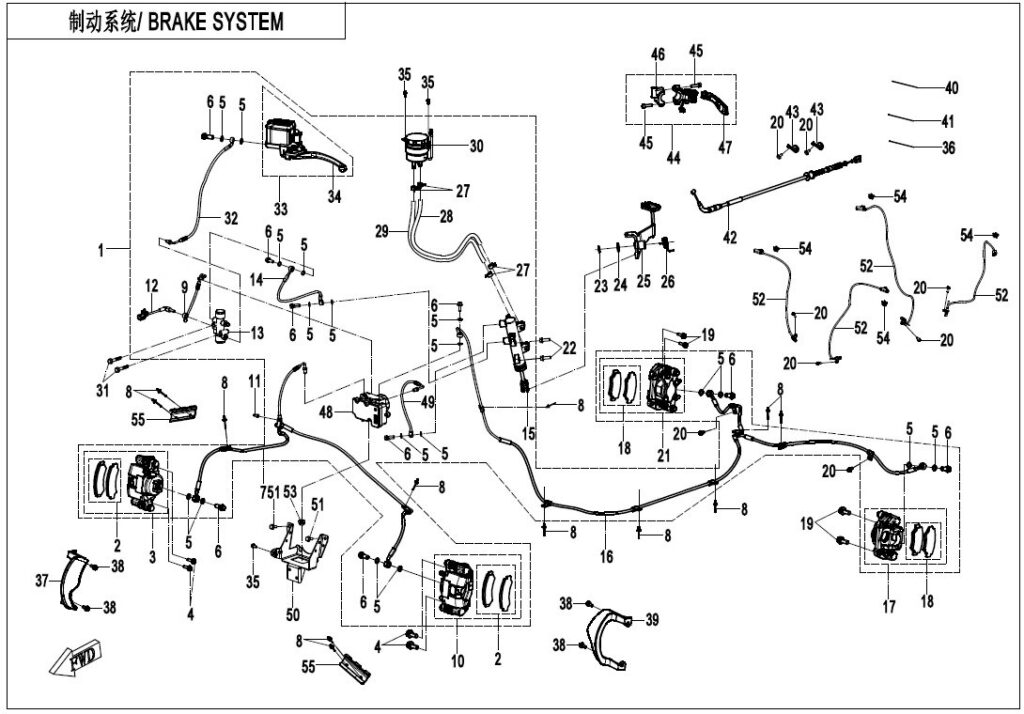

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | ABS HYDRAULIC BRAKE ASSY 9CRV-081000-1201 | 1 | |||
| 2 | BRAKE PAD ASSY SH-9DQV-0813A0-1100 | Skladem | 1 382,74 Kč | ||
| 3 | FRONT RH BRAKE CALIPER ASSY 9DQV-081400-1200 | Skladem | 4 163,76 Kč | ||
| 4 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 5 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 6 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 7 | ABS FRONT BRAKE FLUID OUTLET PIPE 9DQV-082400-1201 | 1 | |||
| 8 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 9 | ABS BRAKE FRONT FLUID INLET PIPE 9DQV-082200-1200 | 1 | |||
| 10 | FRONT LH BRAKE CALIPER ASSY 9DQV-081300-1200 | Skladem | 4 163,76 Kč | ||
| 11 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 12 | HYDRAULIC SENSOR SWITCH 9DQV-080010-1200 | 1 | |||
| 13 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 14 | BRAKE MASTER CYLINDER FLUID HOSE 9DQV-082600-1200 | 1 | |||
| 15 | BRAKE MASTER CYLINDER ASSY 9DQV-081800-1200 | 1 | |||
| 16 | ABS REAR BRAKE OUTLET PIPE 9CRV-082500-1201 | 1 | |||
| 17 | REAR LH BRAKE CALIPER ASSY 9DQV-081500-1200 | 1 | |||
| 18 | BRAKE PAD ASSY SH-9DQV-0815A0-1100 | Skladem | 1 211,84 Kč | ||
| 19 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 20 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 21 | REAR RH BRAKE CALIPER ASSY 9DQV-081600-1200 | 1 | |||
| 22 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 23 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 24 | Podložka 30304-140410 | Skladem | 15,54 Kč | ||
| 25 | FOOT BRAKE PEDAL ASSY 9DQV-080210-1100-0BP00 | Skladem | 341,80 Kč | ||
| 26 | FOOT BRAKE RETURN SPRING 9DQV-080310-1100 | Skladem | 31,07 Kč | ||
| 27 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 28 | FLUID RESERVOIR HOSE 1 9DQV-080101-1201 | 1 | |||
| 29 | RESERVOIR HOSE 2 9DQV-080102-1200 | 1 | |||
| 30 | FLUID RESERVOIR ASSY 9DQV-081010-1100 | Skladem | 1 134,16 Kč | ||
| 31 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 32 | HAND BRAKE FLUID HOSE 9DQV-080130-1200 | 1 | |||
| 33 | LH HAND BRAKE MASTER CYLINDER ASSY 9DQV-081100-3002 | Skladem | 2 501,36 Kč | ||
| 34 | LEVER 9DQV-081100-3000-22 | Skladem | 668,07 Kč | ||
| 35 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 36 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 37 | GUARD, FRONT RH CV JOINT 9DS#-080002-6001 | Skladem | 87,05 Kč | ||
| 38 | COLLAR BOLT M6×12 9DQV-080004-1100 | Skladem | 15,54 Kč | ||
| 39 | GUARD, FRONT LH CV JOINT 9DS#-080001-6001 | Skladem | 87,05 Kč | ||
| 40 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 41 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 42 | REAR BRAKE PARKING CABLE 9CQV-080300-1201 | Skladem | 466,09 Kč | ||
| 43 | FIXING CLIP 9AWA-080004 | Skladem | 62,15 Kč | ||
| 44 | RH PARKING LEVER 9DQV-084300-1101 | Skladem | 2 175,10 Kč | ||
| 45 | BOLT 9DQV-084300-1100-25 | Skladem | 31,07 Kč | ||
| 46 | HOLDER 2 9DQV-084300-1100-28 | Skladem | 186,44 Kč | ||
| 47 | PARKING BRAKE LEVER 9NTV-084300-1400-20 | Skladem | 636,99 Kč | ||
| 48 | ABS CONTROLLER 9CRV-082100-1200 | 1 | |||
| 49 | ABS REAR BRAKE FLUID INLET PIPE 9DQV-082300-1200 | 1 | |||
| 50 | ABS CONTROLLER BRACKET 9DQV-080017-1201 | 1 | |||
| 50 | ABS CONTROLLER BRACKET 9DQV-080017-1200 | 1 | |||
| 51 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 52 | RPM SENSOR 9DQV-080001-1200 | 4 | |||
| 53 | DAMPING RUBBER SLEEVE, MSC CONTROLLER 6L30-080008 | Skladem | 62,15 Kč | ||
| 54 | CLIP 6AQV-150001-1000-M1 | Skladem | 15,54 Kč | ||
| 55 | FRONT BRAKE OIL HOSE CLIP 9DQV-042041-1100 | Skladem | 31,07 Kč | ||
