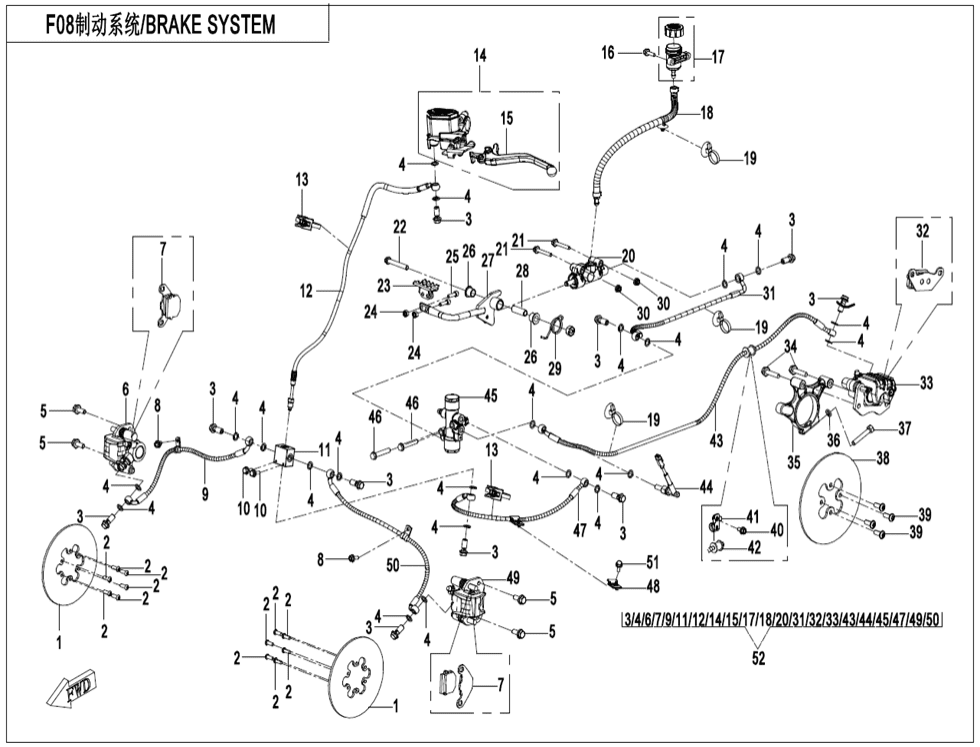

Brzdový systém
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT BRAKE DISC HH4V-080001-1000 | Skladem | 481,63 Kč | ||
| 02 | INNER HEX SCREW M6x16 6NQ#-000206-6001 | Skladem | 31,07 Kč | ||
| 03 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 04 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 05 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 06 | RH FRONT BRAKE CALIPER HH4V-081600-1000 | Skladem | 2 081,88 Kč | ||
| 07 | FRONT BRAKE PAD HH4V-08150A | Skladem | 341,80 Kč | ||
| 08 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 09 | RH FRONT BRAKE FLUID HOSE HH4V-080120-1000 | Skladem | 1 320,59 Kč | ||
| 10 | Šroub 30006-050016810 | Skladem | 15,54 Kč | ||
| 11 | JOINT PIPE HH4V-081001-1000 | Není skladem | |||
| 12 | FLUID HOSE, HAND BRAKE MASTER CYLINDER HH4V-080150-1000 | Skladem | 1 305,06 Kč | ||
| 13 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 14 | LH HAND BRAKE MASTER CYLINDER HH4V-081700-1000 | Skladem | 1 910,98 Kč | ||
| 15 | BRAKE LEVER HH4V-081700-1000-20 | Skladem | 264,12 Kč | ||
| 16 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 17 | BRAKE FLUID RESERVOIR HH4V-082400-1000 | Skladem | 450,56 Kč | ||
| 18 | HOSE, RESERVOIR HH4V-082001-1000 | Skladem | 319,44 Kč | ||
| 19 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 20 | FOOT BRAKE MASTER CYLINDER HH4V-081100-1000 | Skladem | 2 004,20 Kč | ||
| 21 | Šroub 30006-060040810 | Není skladem | |||
| 22 | Šroub 30006-080055810 | Skladem | 31,07 Kč | ||
| 23 | BRAKE PEDAL HH4V-084030-1000-0BP00 | Skladem | 108,75 Kč | ||
| 24 | NUT M6 30202-060150 | Není skladem | |||
| 25 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 26 | Pouzdro HH4V-081303-1000 | Není skladem | |||
| 27 | BRAKE PEDAL ROD ASSY HH4V-084040-1000 | Není skladem | |||
| 28 | SHAFT SLEEVE HH4V-081302-1000 | Není skladem | |||
| 29 | FOOT BRAKE RETURN SPRING HH4V-081301-1000 | Skladem | 46,61 Kč | ||
| 30 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 31 | FLUID HOSE,FOOT BRAKE MASTER CYLINDER HH4V-080130-1000 | Skladem | 1 320,59 Kč | ||
| 32 | REAR BRAKE PAD HH4V-08180B | Skladem | 466,09 Kč | ||
| 33 | REAR BRAKE CALIPER HH4V-081800-1000 | Skladem | 1 367,20 Kč | ||
| 34 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 35 | BRACKET, REAR BRAKE CALIPER HH4V-080003-1000 | Skladem | 1 103,08 Kč | ||
| 36 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 37 | INNER HEX SCREW M8x50 30102-080050810 | Skladem | 15,54 Kč | ||
| 38 | REAR BRAKE DISC HH4V-080002-1000 | Skladem | 481,63 Kč | ||
| 39 | SCREW M8x20 30121-080020870 | Skladem | 15,54 Kč | ||
| 40 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 41 | HOSE CLIP HH4V-080410-1000 | Není skladem | |||
| 42 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 43 | REAR BRAKE FLUID HOSE HH4V-080140-1000 | Skladem | 1 507,03 Kč | ||
| 44 | HYDRAULIC SENSOR SWITCH HH4V-080010-1000 | Není skladem | |||
| 45 | HYDRAULICDISTRIBUTIONVALVE 7020-081070 | Skladem | 1 258,45 Kč | ||
| 46 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 47 | DISPENSE VALVE HOSE HH4V-080160-1000 | Skladem | 1 072,01 Kč | ||
| 48 | CLIP, REAR BRAKE FLUID PIPE 5HY0-080002 | Není skladem | |||
| 49 | LH FRONT BRAKE CALIPER HH4V-081500-1000 | Skladem | 2 081,88 Kč | ||
| 50 | LH FRONT BRAKE FLUID HOSE HH4V-080110-1000 | Skladem | 1 320,59 Kč | ||
| 51 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 52 | Brzdový systém HH4V-081000-1000 | Není skladem | |||
