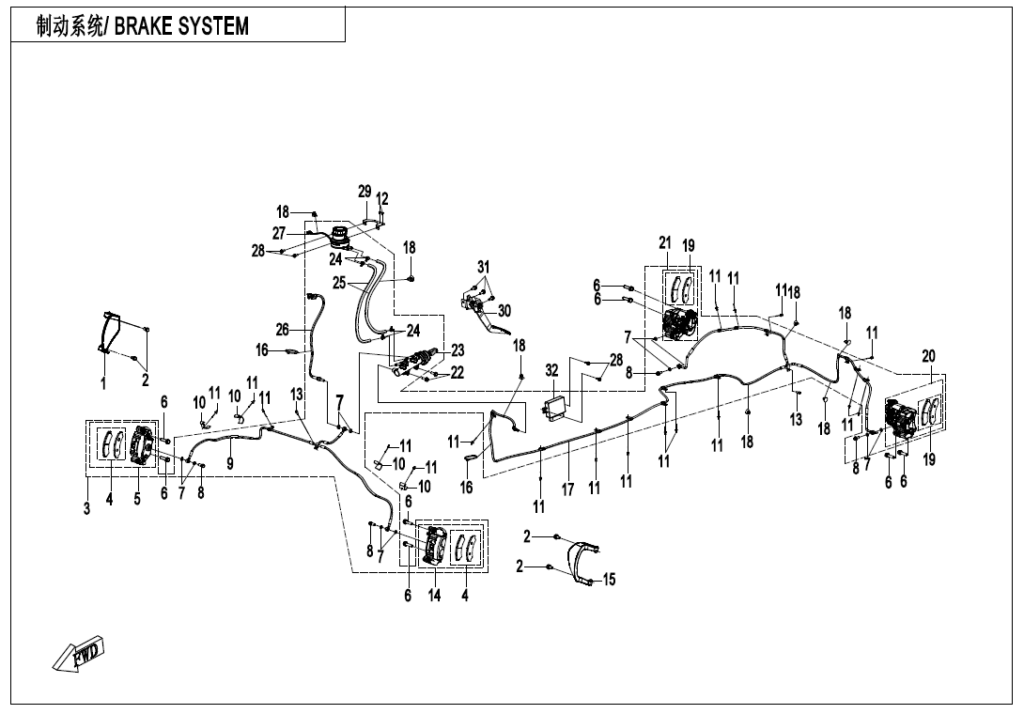

F08-A BRAKE SYSTEM(WITHOUT ABS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT RH BRAKE CALIPER GUARD 5HYV-080009-6000 | Skladem | 108,75 Kč | ||
| 2 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 3 | HYDRAULIC BRAKE ASSY 5HYV-081000-6002 | Skladem | |||
| 4 | FRONT BRAKE PAD ASSY 5HYV-0811A0-6000 | Skladem | 1 305,06 Kč | ||
| 5 | FRONT RH BRAKE CALIPER 5HYV-081200-6000 | Skladem | 4 987,18 Kč | ||
| 6 | Šroub 30006-102040810 | Skladem | 31,07 Kč | ||
| 7 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 8 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 9 | FRONT BRAKE FLUID PIPE 5HYV-081010-6002 | Skladem | |||
| 10 | PLASTIC CLASP 1 9DQV-080001-3000 | Skladem | |||
| 11 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 12 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 13 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 14 | FRONT LH BRAKE CALIPER 5HYV-081100-6000 | Skladem | 4 987,18 Kč | ||
| 15 | FRONT LH BRAKE CALIPER GUARD 5HYV-080008-6000 | Skladem | 108,75 Kč | ||
| 16 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 17 | REAR BRAKE FLUID HOSE 5HYV-081020-6000 | Skladem | 7 053,53 Kč | ||
| 18 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 19 | REAR BRAKE PAD ASSY 5HYV-0810A0-6000 | Skladem | 1 149,69 Kč | ||
| 20 | REAR LH E-BRAKE ASSY 5HYV-081050-6000 | Skladem | 11 636,76 Kč | ||
| 21 | REAR RH E-PARKING ASSY 5HYV-081060-6000 | Skladem | 11 636,76 Kč | ||
| 22 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 23 | MASTER CYLINDER ASSY 5HYV-081800-6000 | Skladem | 2 485,82 Kč | ||
| 24 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 25 | RESERVOIR PIPE 1 5HYV-080101-6000 | Skladem | 155,36 Kč | ||
| 26 | HYDRAULIC SENSOR SWITCHASSY 5HYV-080010-6000 | Skladem | 947,72 Kč | ||
| 27 | FLUID RESERVOIR ASSY 5HYV-080150-6000 | Skladem | 1 227,38 Kč | ||
| 28 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 29 | BRACKET, OIL CUP 5UWB-030110 | Skladem | 108,75 Kč | ||
| 30 | BRAKE PEDAL ASSY 5HYV-082100-6000 | Skladem | 1 103,08 Kč | ||
| 31 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 32 | EPB CONTROLLER 5HYV-159010-6000 | Skladem | 47 991,94 Kč | ||
