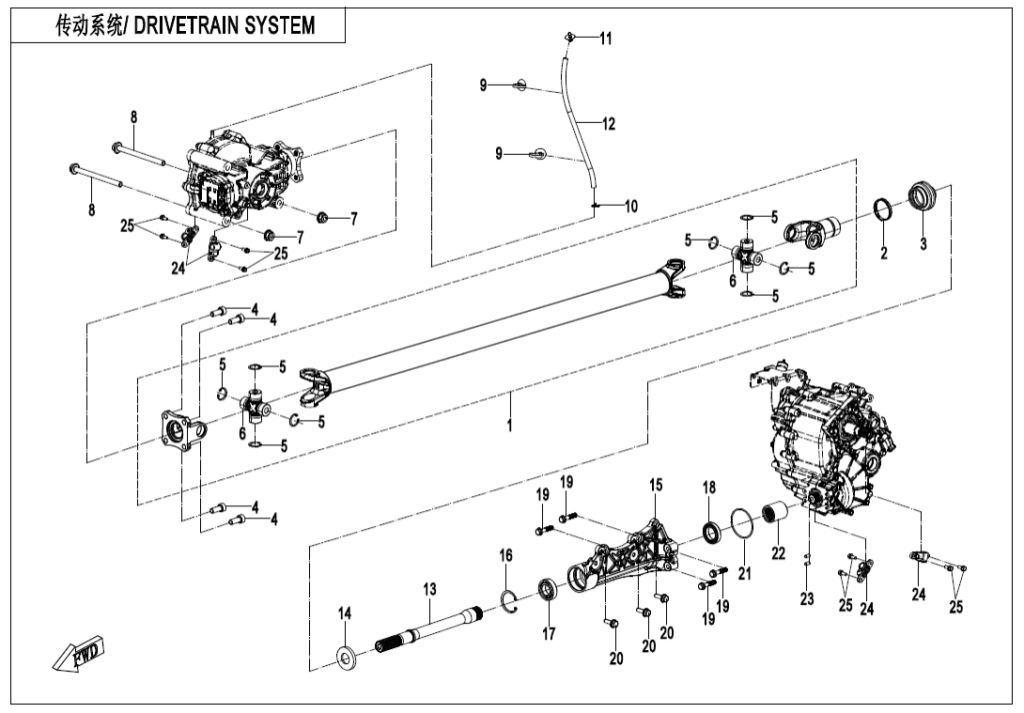

F30 DRIVETRAIN SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT DRIVE SHAFT 5HYV-290100-6001 | Skladem | 6 571,90 Kč | ||
| 2 | BIG RING 9GQ0-290104 | Skladem | 62,15 Kč | ||
| 3 | SLEEVE 5HYV-290101-6000 | Skladem | 62,15 Kč | ||
| 4 | Šroub (vrut) 30102-102025810 | Skladem | 31,07 Kč | ||
| 5 | CIRCLIP FOR HOLE A-D25 30800-02505 | Skladem | 15,54 Kč | ||
| 6 | UNIVERSAL JOINT Φ25X64 7020-290130-10000 | Skladem | 450,56 Kč | ||
| 7 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 8 | Šroub 30006-102130810 | Skladem | 116,16 Kč | ||
| 9 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 10 | CLAMP A8 30601-108010 | Skladem | 15,54 Kč | ||
| 11 | BREATHER HOSE CONNECTOR 9AWV-315001-8000 | Skladem | 58,08 Kč | ||
| 12 | BREATHER HOSE, FRONT GEAR CASE 9010-310001 | Skladem | 62,15 Kč | ||
| 13 | OUTPUT SPLINE SHAFT 0NYV-069609-1001 | Skladem | 2 206,17 Kč | ||
| 14 | OIL SEAL 0NYV-069607-1000 | Skladem | 201,97 Kč | ||
| 15 | GEARBOX BRACKET 1 0NYV-069601-1000 | Skladem | 2 501,36 Kč | ||
| 15 | GEARBOX BRACKET 1 0NYV-069601-1001 | Skladem | 2 501,36 Kč | ||
| 16 | CIRCLIP FOR HOLE 47 30803-04705 | Skladem | |||
| 17 | BEARING 6005 0NYV-069603-1000 | Skladem | |||
| 18 | BEARING 61906 0NYV-069604-1000 | Skladem | |||
| 19 | BOLT M8×38 0110-060010-0030 | Skladem | 43,52 Kč | ||
| 20 | Šroub 0130-011114-00001 | Skladem | 31,07 Kč | ||
| 21 | O-SEAL RING 63×2.5 0800-014003 | Skladem | 43,52 Kč | ||
| 22 | OUTPUT SPLINE SLEEVE 0NYV-069608-1000 | Skladem | 310,73 Kč | ||
| 23 | DOWEL PIN Dia 6×12 01A0-056004 | Skladem | 15,54 Kč | ||
| 24 | MOUNTING BRACKET, ABS SENSOR Q850-330005 | Skladem | 155,36 Kč | ||
| 25 | Šroub 30006-050012810 | Skladem | 15,54 Kč | ||
