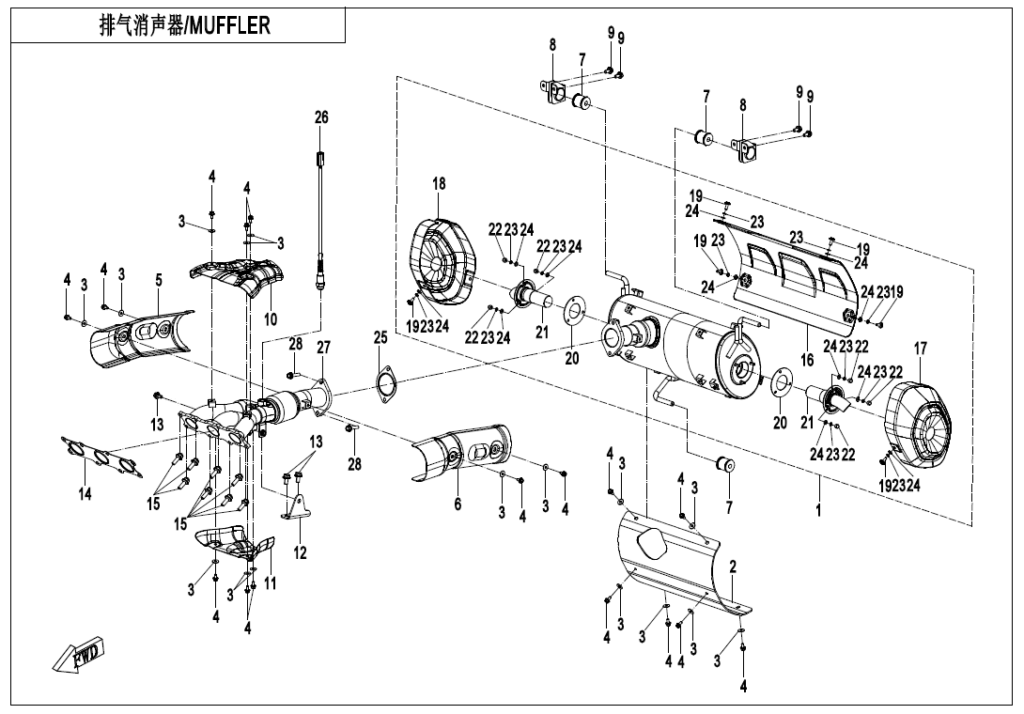

F02-V1 MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MUFFLER ASSY 5HYV-021200-6001 | Skladem | 24 485,37 Kč | ||
| 2 | MUFFLER BODY HEAT INSULATOR GUARD 5HYV-021220-6000 | Skladem | 963,26 Kč | ||
| 3 | Podložka 30309-060900 | Skladem | 15,54 Kč | ||
| 4 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 5 | EXHAUST PIPE HEAT INSULATOR GUARD 3 5HYV-021140-6000 | Skladem | 590,38 Kč | ||
| 6 | EXHAUST PIPE HEAT INSULATOR GUARD 4 5HYV-021150-6000 | Skladem | 590,38 Kč | ||
| 7 | MUFFLER RUBBER 5HYV-020004-6001 | Skladem | 559,31 Kč | ||
| 8 | MUFFLER BRACKET ASSY 5HYV-020003-6001 | Skladem | 155,36 Kč | ||
| 9 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 10 | EXHAUST MANIFOLD HEAT INSULATOR 1 5HYV-021120-6000 | Skladem | 357,34 Kč | ||
| 11 | EXHAUST MANIFOLD HEAT INSULATOR 2 5HYV-021130-6000 | Skladem | 295,19 Kč | ||
| 12 | EXHAUST MANIFOLD BRACKET 5HYV-020001-6001 | Skladem | |||
| 14 | SUPERCHARGER FLANGE GASKET 0NYV-190001-2000 | Skladem | 139,83 Kč | ||
| 15 | FLANGE NUT M8 0010-011700-0010 | Skladem | 15,54 Kč | ||
| 16 | MUFFLER GUARD 1 5HYV-021010-6001 | Skladem | 1 460,42 Kč | ||
| 17 | MUFFLER GUARD 2 5HYV-021020-6001 | Skladem | 1 087,55 Kč | ||
| 18 | MUFFLER GUARD 3 5HYV-021030-6001 | Skladem | 1 087,55 Kč | ||
| 19 | INNER HEX SCREW M6x16 6WWV-046802-5000 | Skladem | 15,54 Kč | ||
| 20 | SEAL GASKET,GRAPHITE 9DS#-021001-6000 | Skladem | 201,97 Kč | ||
| 21 | SPARK ARRESTOR 5HYV-021230-6000 | Skladem | 295,19 Kč | ||
| 22 | Matice 30206-060510 | Skladem | |||
| 23 | Podložka 30303-060900 | Skladem | 15,54 Kč | ||
| 24 | WASHER 6 30306-060800 | Skladem | 31,07 Kč | ||
| 25 | SEAL GASKET 5HYV-020002-6000 | Skladem | 31,07 Kč | ||
| 26 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 27 | EXHAUST MANIFOLD SUB ASSY 5HYV-021100-6001 | Skladem | 8 948,97 Kč | ||
| 28 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
