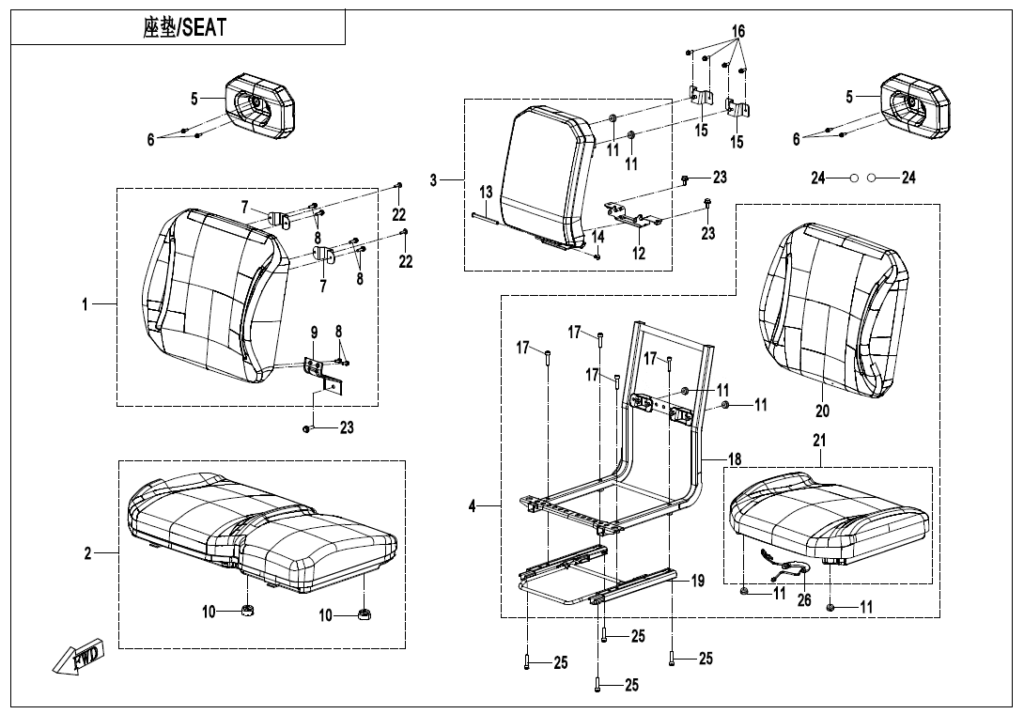

F13 SEAT
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | PASSENGER BACKREST ASSY 5HYV-136000-6000 | Skladem | 2 672,26 Kč | ||
| 1 | PASSENGER BACKREST ASSY 5HYV-136000-6001 | Skladem | |||
| 2 | PASSENGER SEAT ASSY 5HYV-132000-6000 | Skladem | 5 608,64 Kč | ||
| 3 | MIDDEL BACKREST ASSY 5HYV-134000-6000 | Skladem | 2 516,90 Kč | ||
| 3 | MIDDLE BACKREST ASSY 5HYV-134000-6001 | Skladem | |||
| 4 | DRIVER SEAT ASSY 5HYV-137000-7001 | Skladem | 10 642,43 Kč | ||
| 5 | HEAD REST 5ASV-134000-6000 | Skladem | 1 398,28 Kč | ||
| 6 | BOLT M6x17 5HY#-040002-1000 | Skladem | 15,54 Kč | ||
| 7 | BACKREST UPPER BRACKET 5HYV-133300-6000 | Skladem | |||
| 7 | BACKREST UPPER BRACKET 5HYV-133300-6001 | Skladem | 77,68 Kč | ||
| 8 | BOLT 0010-023010 | Skladem | |||
| 9 | BACKREST LOWER BRACKET 5HYV-133400-6000 | Skladem | 155,36 Kč | ||
| 10 | RUBBER SLEEVE, REAR SEAT 7020-130001 | Skladem | 62,15 Kč | ||
| 11 | BACKREST DAMPING MAT 5HY#-130002-1000 | Skladem | 31,07 Kč | ||
| 12 | MIDDLE BACKREST BRACKET 5HYV-134100-6000 | Skladem | |||
| 12 | MIDDLE BACKREST BRACKET 5HYV-134100-6001 | Skladem | 124,29 Kč | ||
| 13 | PIN SHAFT 5HYV-134000-6000-24 | Skladem | 46,61 Kč | ||
| 14 | BOLT 5HYV-134000-6000-25 | Skladem | 15,54 Kč | ||
| 15 | REAR BRACKET 5HY#-133001-1000 | Skladem | 46,61 Kč | ||
| 16 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 17 | Šroub (vrut) 30102-080035810 | Skladem | 15,54 Kč | ||
| 18 | DRIVER SEAT FRAME ASSY 5HYV-131310-6000 | Skladem | 2 656,72 Kč | ||
| 19 | SLIDE RAIL ASSY 5HYV-131320-6000 | Skladem | 1 786,69 Kč | ||
| 20 | DRIVER BACK CUSHION ASSY 5HYV-131400-6000 | Skladem | 2 361,53 Kč | ||
| 21 | DRIVER SEAT ASSY 5HYV-137100-7001 | Skladem | 4 987,18 Kč | ||
| 22 | SCREW M6x25 30102-060025870 | Skladem | 15,54 Kč | ||
| 23 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 24 | PLUG PATCH 1 5HYV-190026-6000 | Skladem | 31,07 Kč | ||
| 25 | Šroub (vrut) 30102-080025810 | Skladem | 15,54 Kč | ||
| 26 | PRESSURE SENSOR 5HYV-137110-7000 | Skladem | 761,28 Kč | ||
