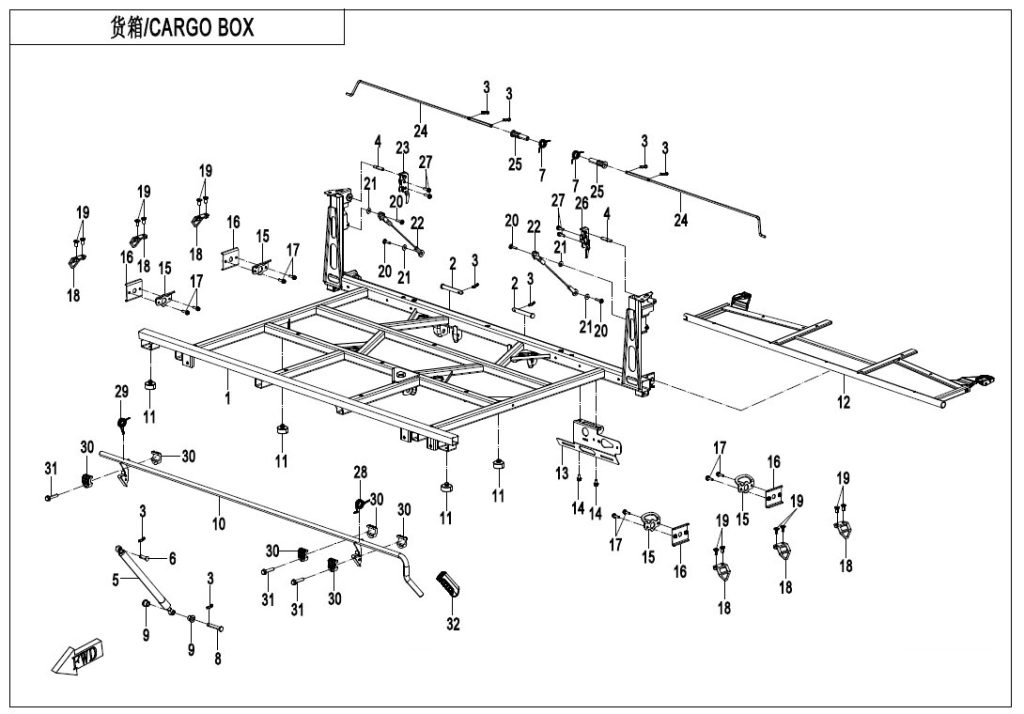

F22-2-B CARGO BOX(BASIC)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | CARGO BOX SKELETON ASSY 5HYV-221000-1R00 | Skladem | 10 020,98 Kč | ||
| 2 | PIN SHAFT 5HYV-220011-6000 | Skladem | 62,15 Kč | ||
| 3 | PIN SHAFT 5HY#-220008-1000 | Skladem | 15,54 Kč | ||
| 4 | SCREW, PIN SHAFT 5HY#-221601-1000 | Není skladem | 46,61 Kč | ||
| 5 | GAS SPRING ASSY 5HYV-222080-1R00 | Skladem | 636,99 Kč | ||
| 6 | PIN SHAFT,GAS SPRING 7030-222251 | Skladem | 62,15 Kč | ||
| 7 | LEVER SPRING 5HYV-220015-6000 | Skladem | 31,07 Kč | ||
| 8 | PIN SHAFT 5HYV-220011-1R00 | Skladem | 77,68 Kč | ||
| 9 | BUSHING 5HYV-222081-1R00 | Skladem | 62,15 Kč | ||
| 10 | TURNING SHAFT ASSY 5HYV-222000-1R00 | Skladem | 543,77 Kč | ||
| 11 | RUBBER MAT 5HY0-220004 | Skladem | 46,61 Kč | ||
| 12 | CARGO BOX DOOR STEERING SHAFT 5HYV-220003-6002 | Skladem | 2 827,62 Kč | ||
| 13 | REAR LICENCE BRACKET 5HYV-220010-6000 | Skladem | 217,51 Kč | ||
| 14 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 15 | HOOK,BAND 9030-220004 | Skladem | 62,15 Kč | ||
| 16 | MOUNTING BRACKET，HOOK 7030-221140 | Skladem | 77,68 Kč | ||
| 17 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 18 | HOOK, CARGO BOX 5HY0-222010 | Skladem | 201,97 Kč | ||
| 19 | BOLT 5HYV-040001-6000 | Skladem | 15,54 Kč | ||
| 20 | CABLE BOLT, TAIL BOX 7030-010508 | Skladem | 31,07 Kč | ||
| 21 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 22 | FIXING CABLE, TAIL BOX 7030-010500-10000 | Skladem | 348,19 Kč | ||
| 23 | REAR RH DOOR LOCK 5HYV-222070-6000 | Skladem | 279,66 Kč | ||
| 24 | CARGO BOX TORSION BAR 5HYV-220002-6000 | Skladem | 124,29 Kč | ||
| 25 | SLEEVE, WRENCH 5HY0-223035 | Skladem | 15,54 Kč | ||
| 26 | REAR LH DOOR LOCK 5HYV-222060-6000 | Skladem | 279,66 Kč | ||
| 27 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 28 | LH TORSIONAL SPRING 5ASV-220001-6001 | Skladem | 62,15 Kč | ||
| 29 | RH TORSIONAL SPRING 5ASV-220002-6001 | Skladem | 62,15 Kč | ||
| 30 | COLLAR, ROTATE SHAFT 7030-221123 | Skladem | 46,61 Kč | ||
| 31 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 32 | LEVER RUBBER SLEEVE 5HYV-223041-1R00 | Skladem | 155,36 Kč | ||
