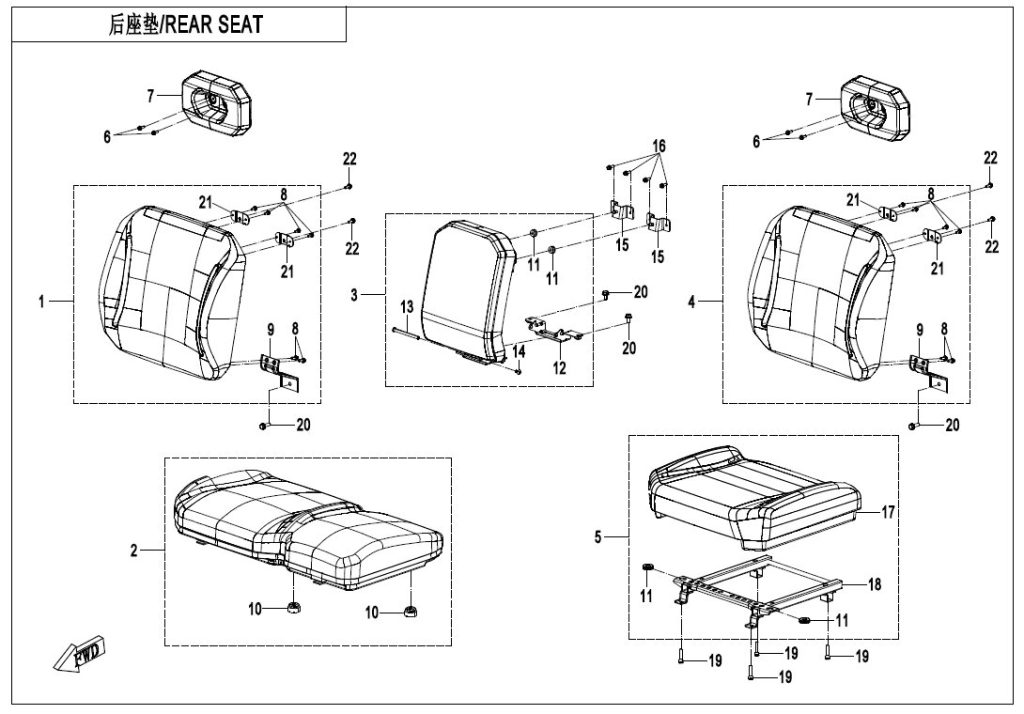

F13-2-V2 REAR SEAT
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | REAR RH BACKREST ASSY 5SYV-137000-8600 | Skladem | 2 796,55 Kč | ||
| 2 | PASSENGER SEAT ASSY 5HYV-132000-7000 | Skladem | 5 888,30 Kč | ||
| 3 | MIDDLE BACKREST ASSY 5HYV-134000-7000 | Skladem | 1 802,22 Kč | ||
| 4 | REAR LH BACKREST ASSY 5SYV-136000-8600 | Skladem | 2 796,55 Kč | ||
| 5 | REAR LH SEAT ASSY 5SYV-135000-8600 | Skladem | 4 070,54 Kč | ||
| 6 | BOLT M6x17 5HY#-040002-1000 | Skladem | 15,54 Kč | ||
| 7 | HEAD REST 5ASV-134000-6000 | Skladem | 1 398,28 Kč | ||
| 8 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 9 | LOWER BRACKET 5SYV-133100-8001 | Skladem | 1 009,87 Kč | ||
| 10 | RUBBER SLEEVE, REAR SEAT 7020-130001 | Skladem | 62,15 Kč | ||
| 11 | BACKREST DAMPING MAT 5HY#-130002-1000 | Skladem | 31,07 Kč | ||
| 12 | MIDDLE BACKREST BRACKET 5HYV-134100-6001 | Skladem | 124,29 Kč | ||
| 13 | PIN SHAFT 5HYV-134000-6000-24 | Skladem | 46,61 Kč | ||
| 14 | BOLT 5HYV-134000-6000-25 | Skladem | 15,54 Kč | ||
| 15 | REAR BRACKET 5HY#-133001-1000 | Skladem | 46,61 Kč | ||
| 17 | DRIVER SEAT ASSY 5HYV-131200-7000 | Skladem | 3 324,79 Kč | ||
| 18 | REAR SEAT FRAME ASSY 5SYV-132100-8001 | Skladem | 1 258,45 Kč | ||
| 19 | Šroub (vrut) 30102-080025810 | Skladem | 15,54 Kč | ||
| 20 | Šroub 30006-080016870 | Skladem | 15,54 Kč | ||
| 21 | BACKREST UPPER BRACKET 5HYV-133300-6001 | Skladem | 77,68 Kč | ||
| 22 | BOLT M6x25 30006-060025870 | Skladem | 15,54 Kč | ||
