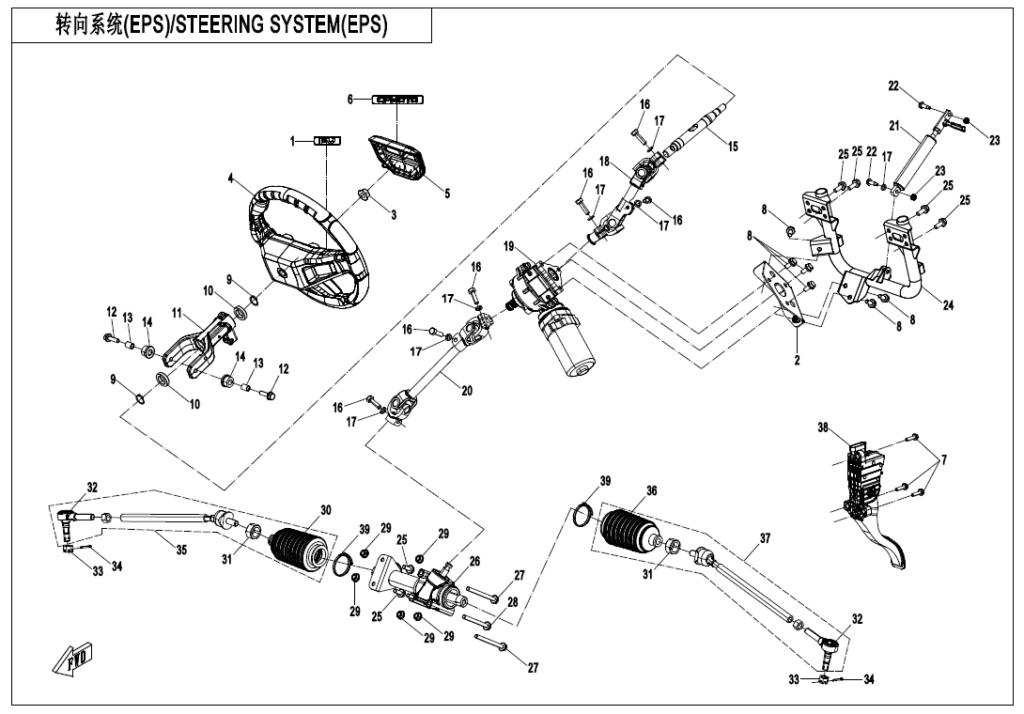

F10 STEERING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | STEERING WHEEL SMALL LOGO 7DHV-190111-1000 | Skladem | 124,29 Kč | ||
| 02 | BRACKET, EPS 5ASV-103500-6200 | Skladem | 326,26 Kč | ||
| 03 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 04 | STEERING WHEEL ASSY 5HYV-101100-6002-0HQ00 | Skladem | 3 511,23 Kč | ||
| 04 | STEERING WHEEL SUB ASSY 5HYV-101100-6001-0HQ00 | Skladem | 3 713,20 Kč | ||
| 05 | STEERING WHEEL PRESS COVER 5HYV-101001-6000 | Skladem | 170,90 Kč | ||
| 06 | STEERING WHEEL LOGO 5HYV-190030-6000 | Skladem | 170,90 Kč | ||
| 07 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 08 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 09 | CIRCLIPS FOR SHAFT20 30801-02005 | Skladem | 15,54 Kč | ||
| 10 | Ložisko 30400-02005 | Skladem | 77,68 Kč | ||
| 11 | STEERING WHEEL BRACKET_MIDNIGHT BLACK 5HYV-102200-6000-0BV00 | Skladem | 1 662,39 Kč | ||
| 12 | BOLT M8x28 30006-080028810 | Skladem | 15,54 Kč | ||
| 13 | SLEEVE, MOUNT PLATE 9060-100008-00001 | Skladem | 31,07 Kč | ||
| 14 | NYLON BUSHING, STEERING COLUMN 9060-100009 | Skladem | 174,09 Kč | ||
| 15 | STEERING COLUMN 7000-100001 | Skladem | 714,67 Kč | ||
| 16 | Šroub 30004-080030810 | Skladem | 29,02 Kč | ||
| 17 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 18 | UNIVERSAL SHAFT,STEERING 5HY0-103100 | Skladem | 2 019,73 Kč | ||
| 19 | EPS MOTOR 5KWV-150820-1001 | Skladem | 18 488,32 Kč | ||
| 20 | LOWER STEERING UNIVERSAL SHAFT 5ASV-103200-6200 | Skladem | 1 957,59 Kč | ||
| 21 | GAS SPRING ASSY 5BWV-102000-5000 | Skladem | 947,72 Kč | ||
| 22 | AIR SPRING UPPER FIXED BOLT 5HYV-103001-6000 | Skladem | 31,07 Kč | ||
| 23 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 24 | BRACKET, EPS 5ASV-103400-6000 | Skladem | 683,60 Kč | ||
| 25 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 26 | STEERING MOTOR ASSY 5ASV-104060-6202 | Skladem | 3 868,56 Kč | ||
| 27 | Šroub 30019-080090810 | Skladem | 31,07 Kč | ||
| 28 | Šroub 30006-080080810 | Skladem | 31,07 Kč | ||
| 29 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 30 | RH PROTECTION SLEEVE, TIE ROD 5BY0-104201 | Skladem | 341,80 Kč | ||
| 31 | CLAMP 5BY0-104102 | Skladem | 31,07 Kč | ||
| 32 | HITCH BALL ASSY SQM 5BY0-104120 | Skladem | 986,54 Kč | ||
| 33 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 34 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 35 | RH STEERING ROD ASSY 5ASV-104200-6000 | Není skladem | 2 625,65 Kč | ||
| 36 | LH PROTECTION SLEEVE, TIE ROD 5BY0-104101 | Skladem | 341,80 Kč | ||
| 37 | LH STEERING ROD ASSY 5ASV-104100-6000 | Skladem | 2 625,65 Kč | ||
| 38 | THROTTLE PEDAL, ELECTRIC 5HY0-105000 | Skladem | 2 081,88 Kč | ||
| 39 | TIE BAND 0000-000014 | Skladem | 15,54 Kč | ||
