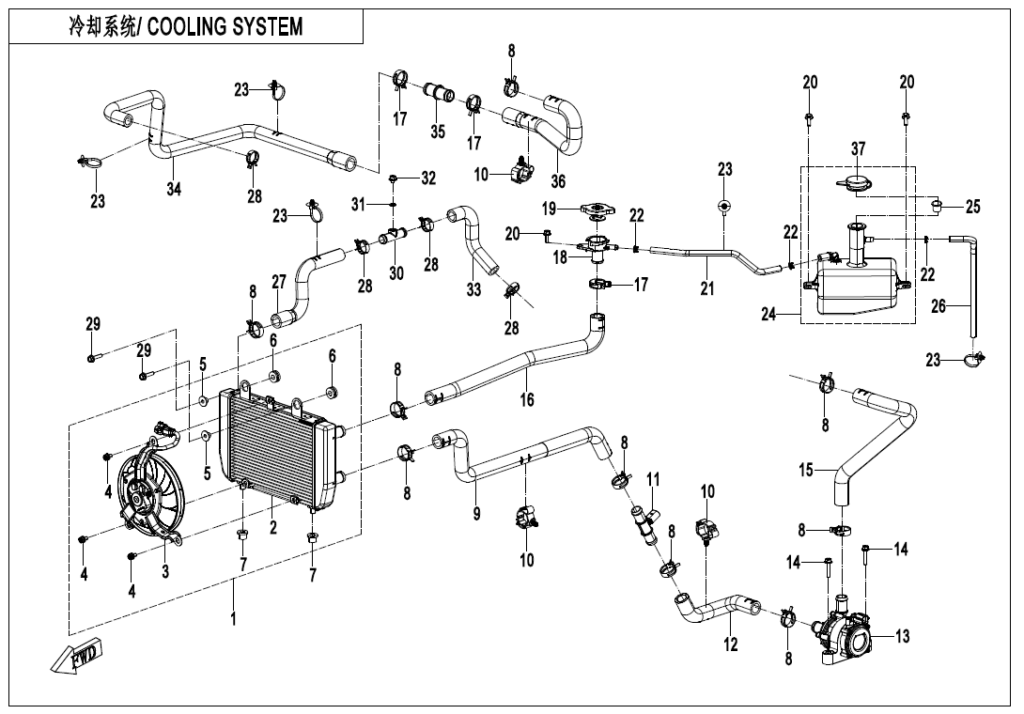

F18 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | COOLING MODULE 7DHV-182100-1001 | Skladem | 8 311,97 Kč | ||
| 02 | LOW-TEMPERATURE RADIATOR 7DHV-182110-1000 | Skladem | 4 163,76 Kč | ||
| 03 | FAN 7DHV-182130-1001 | Skladem | 4 163,76 Kč | ||
| 04 | BOLT 7DHV-182100-1000-20 | Skladem | 62,15 Kč | ||
| 05 | BUSHING 7DHV-182100-1000-21 | Skladem | 124,29 Kč | ||
| 06 | UPPER INSULATION 7DHV-182140-1000 | Skladem | 217,51 Kč | ||
| 07 | LOWER INSULATION 7DHV-182150-1000 | Skladem | 217,51 Kč | ||
| 08 | CLAMP B28 6KM0-180004 | Skladem | 101,64 Kč | ||
| 09 | LOW TEMP. RADIATOR OUTLET PIPE 7DHV-183020-1000 | Skladem | |||
| 09 | LOW TEMP. RADIATOR OUTLET PIPE 7DHV-183020-1001 | Skladem | 357,34 Kč | ||
| 10 | CLASP 27 5HYV-188002-6000 | Skladem | 31,07 Kč | ||
| 11 | WATER TEMPERATURE SENSOR 7DHV-186100-1000 | Skladem | 543,77 Kč | ||
| 12 | ELECTRIC DRIVE WATER PUMP WATER INLET PIPE 7DHV-183210-1000 | Skladem | 170,90 Kč | ||
| 13 | ELECTRIC DRIVE E-PUMP 7DHV-186010-1000 | Skladem | 6 447,61 Kč | ||
| 14 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 15 | ELECTRIC DRIVE WATER PUMP WATER OUTLET PIPE 7DHV-183220-1000 | Skladem | 248,58 Kč | ||
| 16 | JOINT PIPE, WATER FILLER 7DHV-185070-1000 | Skladem | 295,19 Kč | ||
| 17 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
| 18 | WATER FILLING PORT 7DHV-185060-1000 | Skladem | 217,51 Kč | ||
| 19 | CAP, WATER FILLER 7DHV-185050-1000 | Skladem | 248,58 Kč | ||
| 20 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 21 | RESERVOIR CONNECTING PIPE 7DHV-185090-1000 | Skladem | 77,68 Kč | ||
| 22 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
| 23 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 24 | RESERVOIR TANK ASSY 5HY0-180010 | Skladem | 435,02 Kč | ||
| 25 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 26 | RESERVOIR WATER PIPE 7DHV-185100-1000 | Skladem | 77,68 Kč | ||
| 27 | LOW TEMP. RADIATOR INLET PIPE 7DHV-183010-1000 | Skladem | 155,36 Kč | ||
| 28 | CLAMP B24 6100-180001 | Skladem | 101,64 Kč | ||
| 29 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 30 | WATER OUTLET BIPASS 0JYA-071401 | Skladem | 130,57 Kč | ||
| 31 | O-SEAL RING 8.2×1.90 0700-011202 | Skladem | 31,07 Kč | ||
| 32 | HEX FLANGE BOLT M6x6 0JYA-023001-00001 | Skladem | 15,54 Kč | ||
| 33 | WATER OUTLET PIPE, MOTOR 7DHV-183160-1000 | Skladem | 124,29 Kč | ||
| 34 | WATER INLET PIPE, MOTOR CONTROLLER 7DHV-183110-1000 | Skladem | 450,56 Kč | ||
| 35 | STRAIGHT THROUGH 9AYV-186260-8500 | Skladem | 62,15 Kč | ||
| 36 | CHARGER OUTLET PIPE 7DHV-183080-1000 | Skladem | 248,58 Kč | ||
| 37 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
