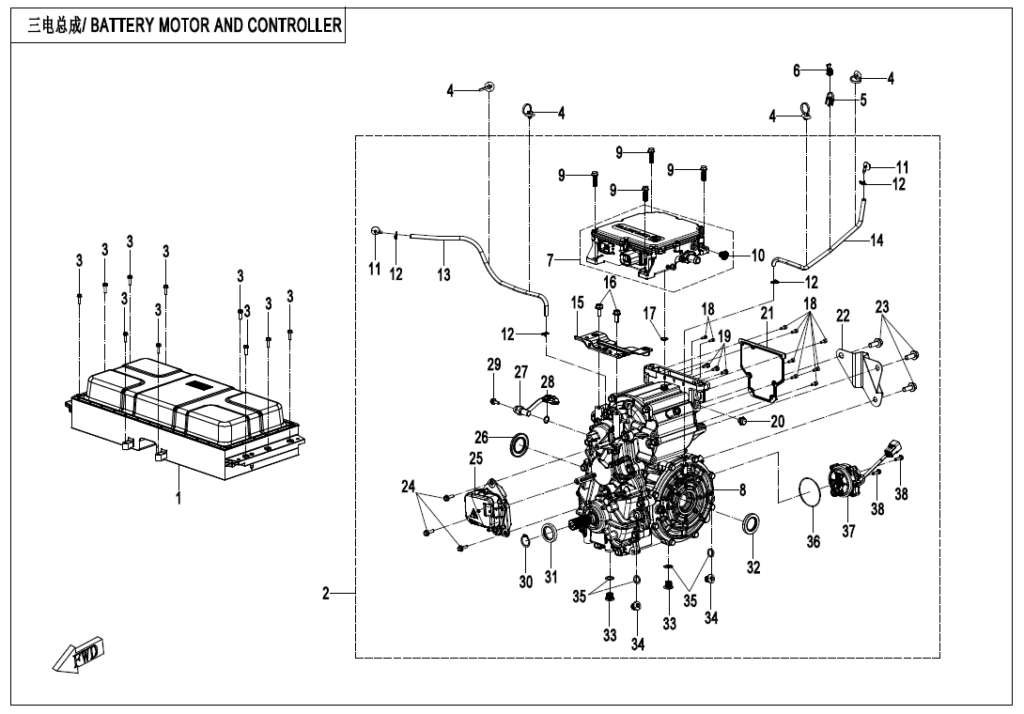

F43 BATTERY MOTOR AND CONTROLLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | POWER BATTERY ASSY 7DHV-430500-1000 | Skladem | 285 602,74 Kč | ||
| 2 | ELECTRIC DRIVE 3 IN 1 ASSY 7DHV-436000-1001 | Skladem | 171 725,78 Kč | ||
| 3 | BOLT M10x1.25×55 30006-102055860 | Skladem | 46,61 Kč | ||
| 4 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 5 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 6 | CLASP 6GU#-150001-6000-M1 | Skladem | 29,04 Kč | ||
| 7 | MOTOR CONTROLLER ASSY NBC0-Q4M000-5002 | Skladem | 61 959,16 Kč | ||
| 8 | MOTOR-REDUCER ASSY NBC0-Q1S000-3200 | Skladem | |||
| 9 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 10 | WATERPROOF VENT VALVE NBC0-Q4MF13-5001 | Skladem | 233,05 Kč | ||
| 11 | BREATHER HOSE CONNECTOR 9AWV-315001-8000 | Skladem | 58,08 Kč | ||
| 12 | CLAMP A8 30601-108010 | Skladem | 15,54 Kč | ||
| 13 | BREATHER HOSE, FRONT GEAR CASE 9010-310001 | Skladem | 62,15 Kč | ||
| 14 | BREATHER HOSE 2 NBC0-Q19222-1000 | Skladem | 77,68 Kč | ||
| 15 | CONTROLLER BRACKET NBC0-Q19182-3201 | Skladem | 668,07 Kč | ||
| 16 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 17 | O-RING 30502-013800N | Skladem | 77,68 Kč | ||
| 18 | SCREW M5x12 30102-050012810 | Skladem | 15,54 Kč | ||
| 19 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 20 | WATERPROOF VENT VALVE NBC0-Q1B420-1000 | Skladem | 590,38 Kč | ||
| 21 | MOTOR WIRING COVER PLATE NBC0-Q19181-2001 | Skladem | 854,50 Kč | ||
| 22 | MOTOR-REDUCER BRACKET NBC0-Q19184-3200 | Skladem | 403,95 Kč | ||
| 23 | Šroub 30006-102025810 | Skladem | 31,07 Kč | ||
| 24 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 25 | PARKING MOTOR CONTROLLER ASSY NBC0-Q18200-2002 | Skladem | 13 936,15 Kč | ||
| 26 | OIL SEAL 35×58×5 0120-061000 | Skladem | 108,75 Kč | ||
| 27 | SPEEDOMETER SENSOR 0GQV-011020-2600 | Skladem | 870,04 Kč | ||
| 28 | O-SEAL RING 13×2 01A0-013005 | Skladem | 15,54 Kč | ||
| 29 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 30 | CIRCLIPS FOR SHAFT 25 30801-02505 | Skladem | |||
| 31 | TRANSFER CASE OUTPUT SHAFT OIL SEAL NBC0-Q19216-2000 | Skladem | 310,73 Kč | ||
| 32 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 33 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 34 | BOLT M14×1.25×12 0180-021008-0010 | Skladem | 58,03 Kč | ||
| 35 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 36 | O-RING 67.5*2 Q830-310012-10000 | Skladem | 62,15 Kč | ||
| 37 | ELECTRICAL REAR GEAR CASE MOTOR 9AWV-152910-8000 | Skladem | 4 536,63 Kč | ||
| 38 | BOLT M6×18 0010-023008-0010 | Skladem | 15,54 Kč | ||
