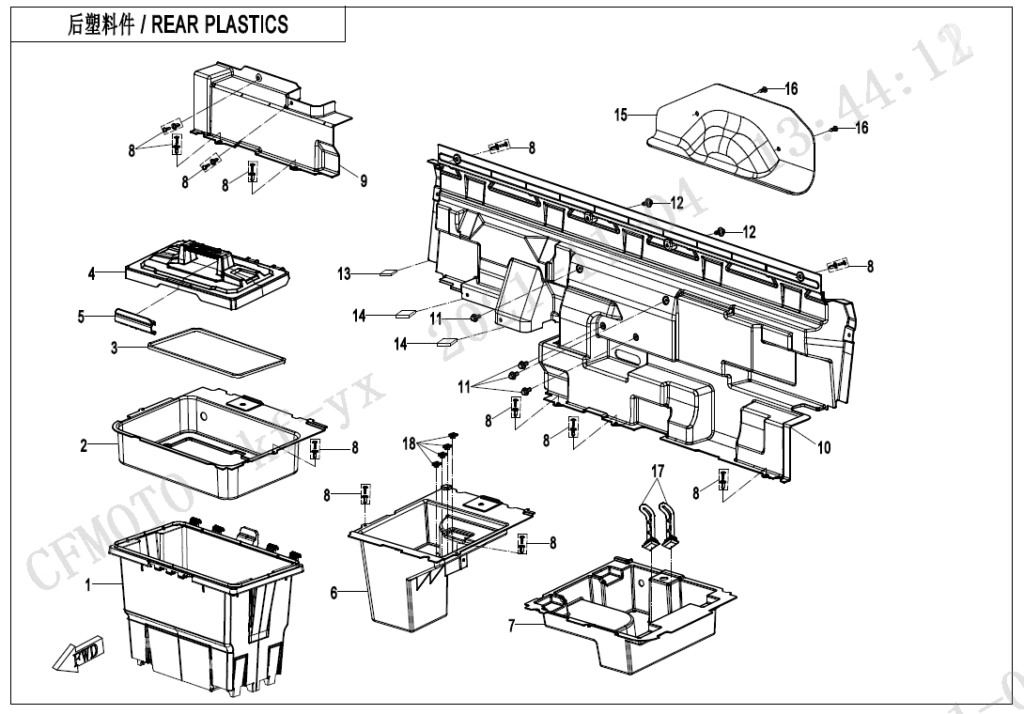

F04-6-V1 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | TOOL BOX 5HYV-043072-1C00 | Skladem | |||
| 2 | RH LOWER GUARD, SEAT 5HY0-043064 | Skladem | |||
| 3 | SEALING STRIP, TOOL BOX 5HY0-043074-00001 | Skladem | |||
| 4 | COVER, TOOL BOX 5HYV-043071-1C01 | Skladem | |||
| 5 | BUCKLE, TOOL BOX 5HY0-043073 | Skladem | 77,68 Kč | ||
| 6 | MIDDLE LOWER GUARD, SEAT 5HY0-043063-10000 | Skladem | |||
| 7 | LH LOWER GUARD, SEAT 5HY0-043062 | Skladem | |||
| 8 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 9 | FRONT ACCESS COVER 5HY0-042052 | Skladem | |||
| 10 | REAR GUARD, SEAT 5HY0-042051 | Skladem | |||
| 11 | INNER HEX SCREW M6x16 6NQ#-000206-6001 | Skladem | 31,07 Kč | ||
| 12 | BOLT M6x14 5HY#-040001-1000 | Skladem | 15,54 Kč | ||
| 13 | SPONGE MAT 6KM#-160420-8001 | Skladem | 15,54 Kč | ||
| 14 | SPONGE PAD, FUEL TANK 9010-120008 | Skladem | 31,07 Kč | ||
| 15 | HEAT INSULATOR, REAR GUARD 5HY0-042053 | Skladem | |||
| 16 | SELF-TAPPING SCREW 30110-480130010 | Skladem | 15,54 Kč | ||
| 17 | BAND,FUEL TANK CAP 7020-040315 | Skladem | 58,03 Kč | ||
| 18 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
