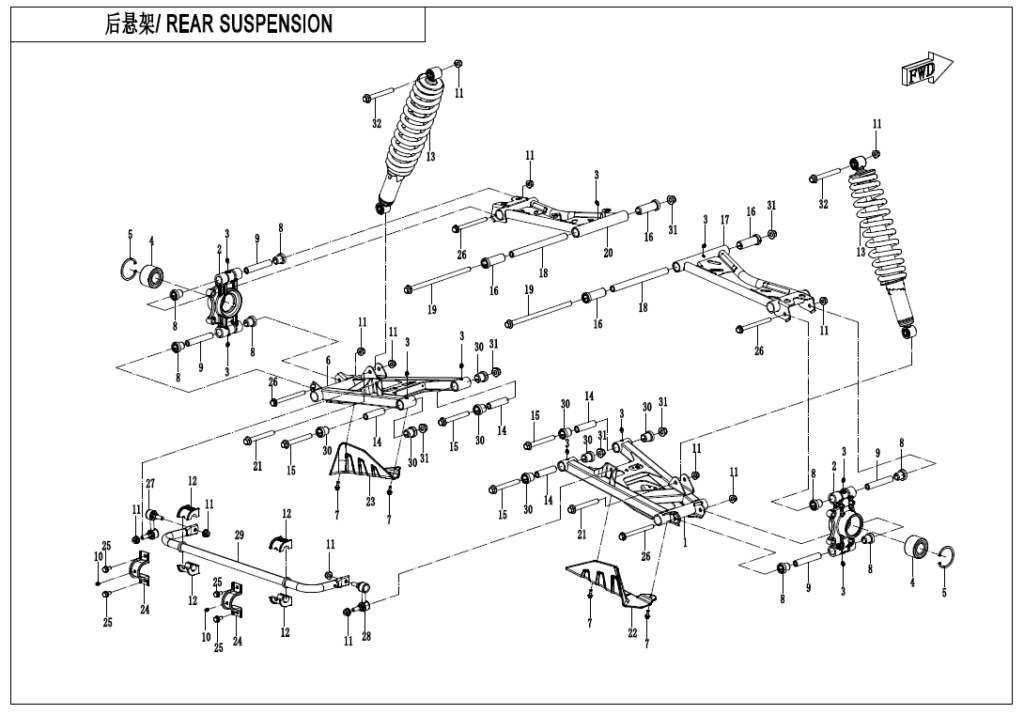

F06-V2 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR LH LOWER SWING ARM ASSY 5SYV-060210-6001-0BP00 | Skladem | |||
| 01 | REAR LOWER LH SWING ARM ASSY 5SYV-060210-6002-0BP00 | Skladem | |||
| 02 | REAR BEARING CARRIER 5HY0-060703 | Skladem | 2 066,34 Kč | ||
| 03 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 04 | HUB BEARING 30411-03081 | Skladem | 963,26 Kč | ||
| 05 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 06 | REAR LOWER RH SWING ARM ASSY 5SYV-060410-6002-0BP00 | Skladem | |||
| 06 | REAR RH LOWER SWING ARM ASSY 5SYV-060410-6001-0BP00 | Skladem | |||
| 07 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 08 | SHORT BUSHING 5ASV-050002-6001 | Skladem | 130,68 Kč | ||
| 09 | MIDDLE SPACER, REAR BEARING CARRIER 5HY0-060701-00001 | Skladem | 145,08 Kč | ||
| 10 | GREASE NOZZLE 3121400 | Skladem | 31,07 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 13 | Zadní tlumič 5SYV-060500-6001 | Skladem | 10 735,65 Kč | ||
| 14 | SHORT MIDDLE SPACER, SWING ARM 5SYV-060201-6000 | Skladem | 159,72 Kč | ||
| 15 | Šroub 30024-122100110 | Není skladem | |||
| 16 | DAMPING SLEEVE, FRONT UPPER SWING ARM 5BY0-050102 | Skladem | 139,83 Kč | ||
| 17 | REAR LH UPPER SWING ARM ASSY 5SYV-060110-6001-0BP00 | Skladem | |||
| 18 | MIDDLE SPACER, SWING ARM 5SYV-050101-6000 | Není skladem | 201,97 Kč | ||
| 19 | SHAFT, SWNG ARM 5SYV-050103-6000 | Skladem | 186,44 Kč | ||
| 20 | REAR RH UPPER SWING ARM ASSY 5SYV-060310-6001-0BP00 | Skladem | |||
| 21 | Šroub 30006-102055110 | Skladem | 31,07 Kč | ||
| 22 | GUARD, REAR LH SWING ARM 5HYV-060201-1000 | Skladem | 124,29 Kč | ||
| 23 | GUARD, REAR RH SWING ARM 5HYV-060401-1000 | Skladem | 124,29 Kč | ||
| 24 | RETAINING COVER 9030-060002 | Skladem | 77,68 Kč | ||
| 25 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 26 | Šroub 30001-102120110 | Skladem | 62,15 Kč | ||
| 27 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 28 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 29 | REAR SWAY BAR 5SYV-060610-6000 | Skladem | |||
| 30 | SHORT BUSHING, SWING ARM 5SYV-060202-6000 | Skladem | 108,75 Kč | ||
| 31 | Matice 30204-122910 | Skladem | |||
| 32 | Šroub 30006-102060110 | Skladem | 46,61 Kč | ||
