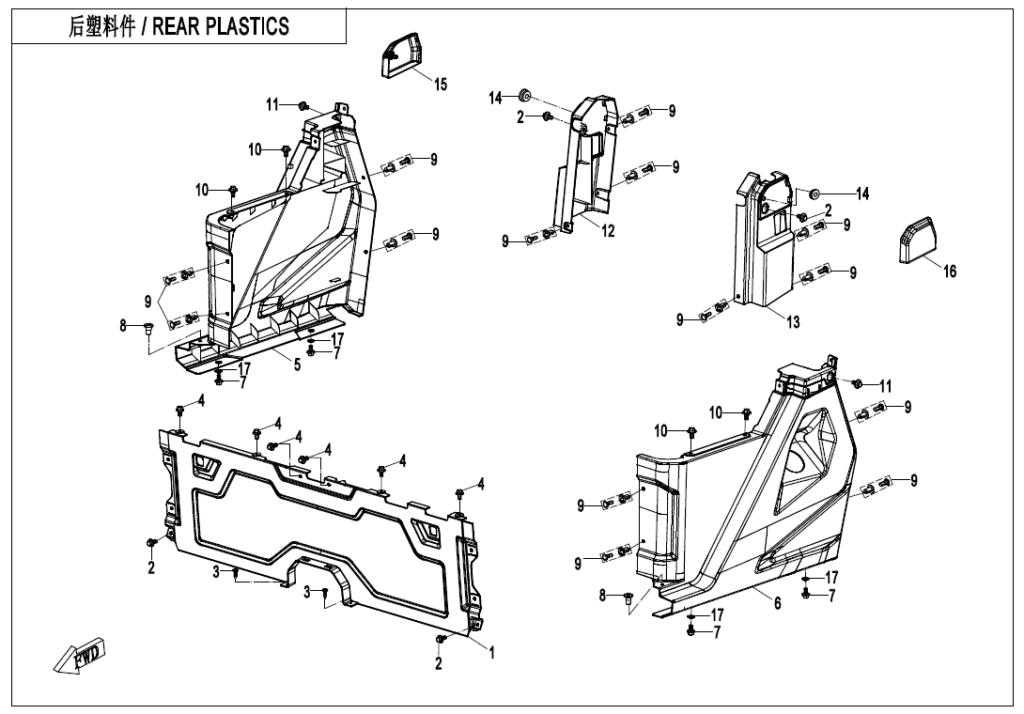

F04-5-V3 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT LOWER BAFFLE, SEAT 5HY#-043061-1000-11 | Skladem | |||
| 02 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 03 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 04 | INNER HEX SCREW M6x16 6NQ#-000206-6001 | Skladem | 31,07 Kč | ||
| 05 | REAR RH PANEL 5HYV-042024-1C00 | Skladem | |||
| 06 | REAR LH PANEL 5HYV-042023-1C00 | Skladem | |||
| 07 | BOLT M8x20 5HY0-220113 | Skladem | 31,07 Kč | ||
| 08 | Šroub 6NQ#-000202-6001 | Skladem | 46,61 Kč | ||
| 09 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 10 | INNER HEX SCREW M6x20 6NQ#-000203-6001 | Skladem | 29,04 Kč | ||
| 11 | BOLT M6x14 5HY#-040001-1000 | Skladem | 15,54 Kč | ||
| 12 | REAR RH UPPER PANEL 5HYV-042022-1D00 | Skladem | |||
| 13 | REAR LH UPPER PANEL 5HYV-042021-1D00 | Skladem | |||
| 14 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 15 | MOUNT COVER, RH HINGE 5HY0-042026 | Skladem | 101,56 Kč | ||
| 16 | MOUNT COVER, LH HINGE 5HY0-042025 | Skladem | 101,56 Kč | ||
| 17 | Podložka 30301-080412 | Skladem | 15,54 Kč | ||
