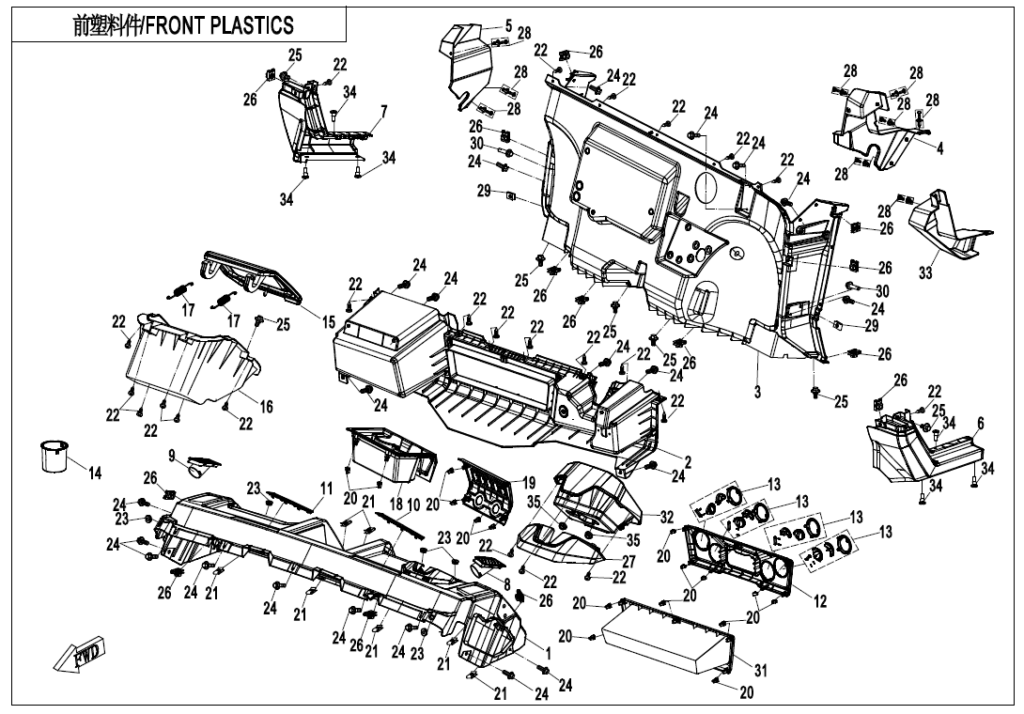

F04-2-B FRONT PLASTICS(INSTALL BLACK-AND-WHITE DISPLAY DASHBOARD)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | DASHBOARD, UPPER 5HY0-043011 | Skladem | |||
| 02 | DASHBOARD, LOWER 5HY0-043031 | Skladem | 2 050,80 Kč | ||
| 03 | Přední rám 5HY0-043041 | Skladem | 5 422,20 Kč | ||
| 04 | FRONT INNER FENDER, LH 5HY0-043042 | Skladem | |||
| 05 | FRONT INNER FENDER, RH 5HY0-043043 | Skladem | |||
| 06 | FRONT PANEL, LH 5HY0-041053 | Skladem | |||
| 07 | FRONT PANEL, RH 5HY0-041054 | Skladem | |||
| 08 | AIR OUTLET PORT, LH 5HY0-043021 | Skladem | |||
| 09 | AIR OUTLET PORT, RH 5HY0-043022 | Skladem | |||
| 10 | FRONT AIR OUTLET PORT, LH 5HY0-043023 | Skladem | |||
| 11 | FRONT AIR OUTLET PORT, RH 5HY0-043024 | Skladem | |||
| 12 | PANEL, AIR OUTLET PORT 5HY0-043025 | Skladem | |||
| 13 | AIR INLET PORT 8060-040200 | Skladem | 357,34 Kč | ||
| 14 | HOLDER 5HY0-043012 | Skladem | |||
| 15 | STORAGE BOX COVER 5HY0-043013 | Skladem | 295,19 Kč | ||
| 16 | STORAGE BOX COVER 5HY0-043014 | Skladem | |||
| 17 | SPRING 5HY0-043015 | Skladem | 31,07 Kč | ||
| 18 | STORAGE BOX 5HY0-043016 | Skladem | |||
| 18 | STORAGE BOX 5HY0-043016-00001 | Skladem | 512,70 Kč | ||
| 19 | SWITCH PANEL 5HY0-043017 | Skladem | |||
| 20 | CLASP 8080-000001 | Skladem | 15,54 Kč | ||
| 21 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 22 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 23 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 24 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 25 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 26 | NUT CLIP M6 8030-040800 | Skladem | 15,54 Kč | ||
| 27 | DECO COVER, DASHBOARD 5HY0-043092 | Skladem | |||
| 28 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 29 | CLAMP ST4.8 5020-040049 | Skladem | 15,54 Kč | ||
| 30 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 31 | GLOVE BOX 5HY0-043033 | Skladem | |||
| 32 | COVER,DASHBOARD 5HY0-043091-0EK00 | Skladem | |||
| 32 | COVER,DASHBOARD 5HY0-043091-0EJ00 | Skladem | |||
| 32 | COVER,DASHBOARD 5HY0-043091-0W000 | Skladem | |||
| 32 | COVER,DASHBOARD MATTE TITANIUM GREY 5HY0-043091-0BA00 | Skladem | 714,67 Kč | ||
| 32 | COVER,DASHBOARD TRUE TIMBER CAMO 5HY0-043091-0RE00 | Skladem | 1 056,48 Kč | ||
| 33 | FRONT INNER FENDER 5HY0-043044 | Skladem | |||
| 34 | Šroub 5HY0-043001 | Skladem | |||
| 35 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
