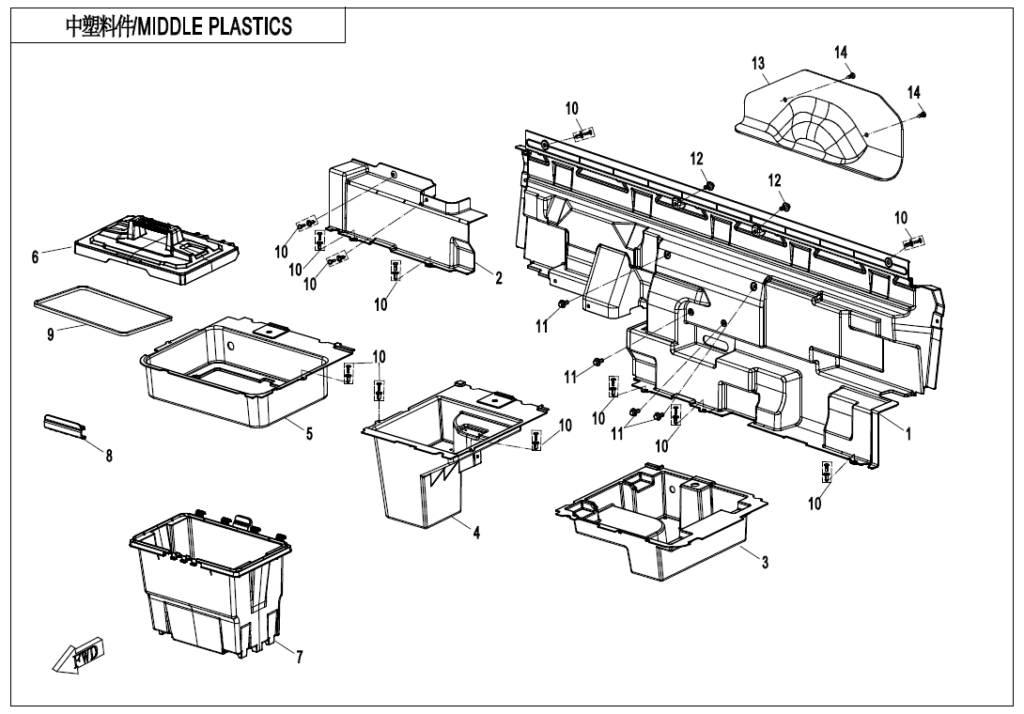

F04-4 MIDDLE PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR GUARD, SEAT 5HY0-042051 | Skladem | |||
| 02 | FRONT ACCESS COVER 5HY0-042052 | Skladem | |||
| 03 | LH LOWER GUARD, SEAT 5HY0-043062 | Skladem | |||
| 04 | MIDDLE LOWER GUARD, SEAT 5HY0-043063 | Skladem | |||
| 04 | MIDDLE LOWER GUARD, SEAT 5HY0-043063-10000 | Skladem | |||
| 05 | RH LOWER GUARD, SEAT 5HY0-043064 | Skladem | |||
| 06 | COVER, TOOL BOX 5HY0-043071 | Skladem | 372,87 Kč | ||
| 07 | TOOL BOX 5HY0-043072 | Skladem | 854,50 Kč | ||
| 08 | BUCKLE, TOOL BOX 5HY0-043073 | Skladem | 77,68 Kč | ||
| 09 | SEALING STRIP, TOOL BOX 5HY0-043074 | Skladem | |||
| 09 | SEALING STRIP, TOOL BOX 5HY0-043074-00001 | Skladem | |||
| 10 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 11 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 12 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 13 | HEAT INSULATOR, REAR GUARD 5HY0-042053 | Skladem | |||
| 14 | SELF-TAPPING SCREW 30110-480130010 | Skladem | 15,54 Kč | ||
