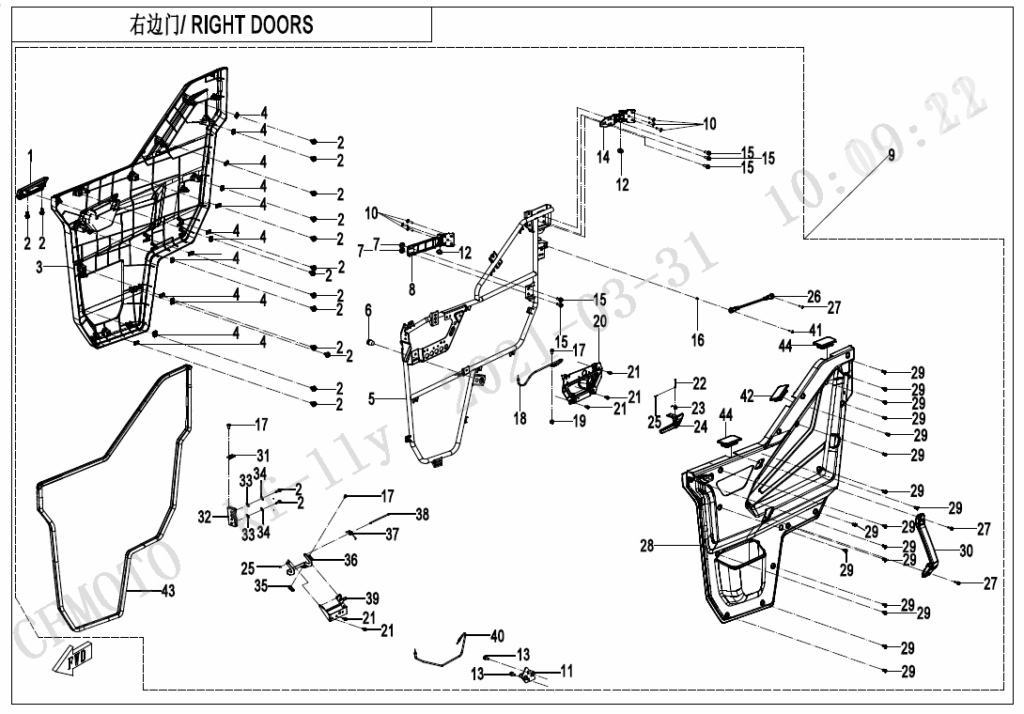

F37-4 RIGHT DOORS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | OUTER HANDLE, RH DOOR 5HY#-374401-1000-0BU00 | Skladem | 124,29 Kč | ||
| 02 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 03 | DECO PLATE, RH LOWER DOOR 5HYV-374002-1001-0BU00 | Skladem | |||
| 04 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 05 | RH LOWER DOOR FRAME ASSY 5HY0-374200-10001 | Skladem | |||
| 06 | CUSHION RUBBER 9030-370901-10001 | Skladem | |||
| 07 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 08 | RH LOWER CONNECTING PLATE ASSY 5HY#-374600-1001 | Skladem | 916,65 Kč | ||
| 09 | RH LOWER SIDE DOOR ASSY 5HYV-3700H0-1002 | Skladem | |||
| 10 | Šroub (vrut) 30122-080016810 | Skladem | 31,07 Kč | ||
| 11 | RH LOCK GROOVE ASSY 5HY0-374020 | Skladem | 130,57 Kč | ||
| 12 | CIRCLIP 6 30802-00605 | Skladem | 15,54 Kč | ||
| 13 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 14 | RH UPPER CONNECTING PLATE ASSY 5HY#-372600-1001 | Skladem | 901,11 Kč | ||
| 15 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 16 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
| 17 | Šroub 30006-050012810 | Skladem | 15,54 Kč | ||
| 18 | DOOR CABLE ASSY 5HY0-372310 | Skladem | |||
| 19 | NUT M5 30200-050810 | Skladem | 15,54 Kč | ||
| 20 | SOCKET, RIGHT INSIDE HANDLE 5HY0-374307-10000 | Skladem | |||
| 21 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 22 | PIN SHAFT 5HY0-372301 | Skladem | 31,07 Kč | ||
| 23 | RH HANDLEBAR SPRING 5HY0-374302 | Skladem | |||
| 24 | INNER HANDLE, RH DOOR 5HY#-374306-1000 | Skladem | |||
| 25 | COTTER PIN 30903-0160810 | Skladem | |||
| 26 | LIMIT CABLE ASSY 5HY#-372050-1000 | Skladem | 188,60 Kč | ||
| 27 | BOLT，M6×22 8010-040038 | Skladem | 15,54 Kč | ||
| 28 | INNER PLATE, RH LOWER DOOR 5HY#-374003-1000-11 | Skladem | |||
| 29 | SELF-TAPPING SCREW 30118-420130010 | Skladem | 29,02 Kč | ||
| 30 | INNER ARMREST, RH DOOR 5HY0-374004 | Skladem | 124,29 Kč | ||
| 31 | CABLE BRACKET 5HY0-372007 | Skladem | |||
| 32 | RH DOOR LOCK ASSY 5HY0-374100 | Skladem | |||
| 33 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 34 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 35 | RH CABLE BRACKET ASSY 5HY0-374440 | Skladem | |||
| 36 | LOCK BRACKET, RH HANDLE 5HY0-374410-20000 | Skladem | |||
| 37 | RH HANDLEBAR SPRING 5HY0-374404 | Skladem | |||
| 38 | PIN SHAFT 5HY0-372403 | Skladem | |||
| 39 | RH HANDLEBAR BRACKET ASSY 5HY0-374420 | Skladem | |||
| 40 | DOOR CABLE ASSY 5HY0-372430 | Skladem | |||
| 41 | BOLT M6×17 8010-000005-1000 | Skladem | 15,54 Kč | ||
| 42 | RUBBER PLUG 5HYV-370010-1000 | Skladem | |||
| 43 | SEAL STRAP, HALF DOOR 5HY0-372030-10000 | Skladem | |||
| 44 | RUBBER PLUG 5HYV-370011-1000 | Skladem | |||
