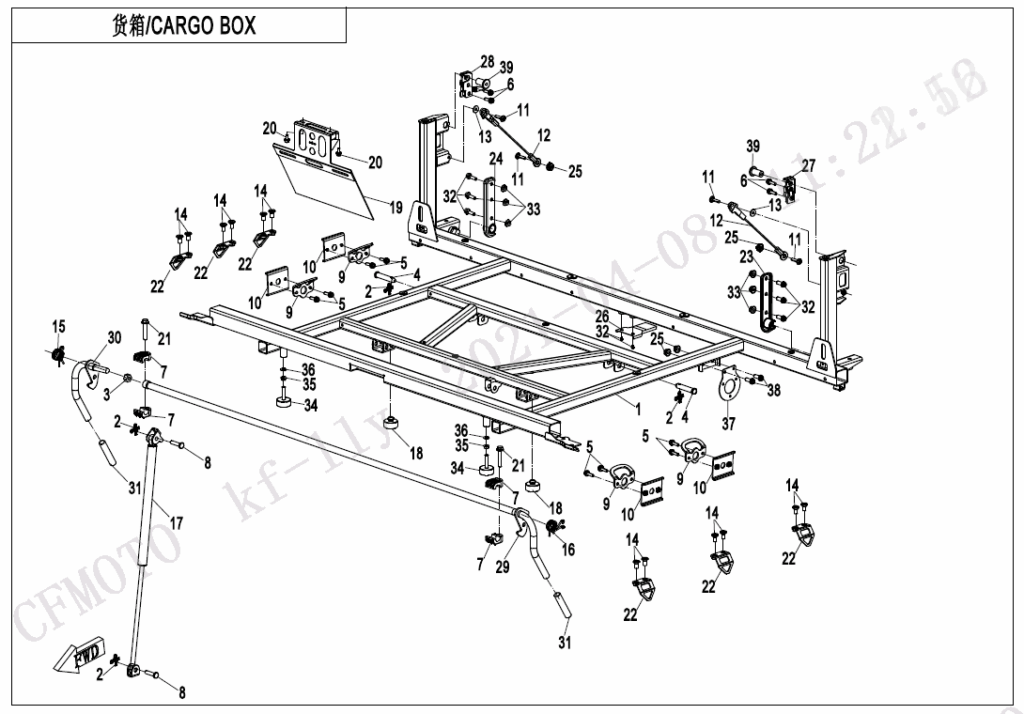

F22-2 CARGO BOX
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BASE FRAME ASSY ELECTROPHORESIS BLACK 5HYV-221000-1C00 | Skladem | |||
| 02 | PIN SHAFT 5HY#-220008-1000 | Skladem | 15,54 Kč | ||
| 03 | Matice 30211-123810 | Skladem | |||
| 04 | PIN SAHFT, ROTATION COLOR ZINC 9030-220011-00001 | Skladem | 62,15 Kč | ||
| 05 | BOLT M6x20 30006-060020870 | Skladem | 31,07 Kč | ||
| 06 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 07 | COLLAR, ROTATE SHAFT 7030-221123 | Skladem | 46,61 Kč | ||
| 08 | PIN SHAFT,GAS SPRING 7030-222251 | Skladem | 62,15 Kč | ||
| 09 | HOOK,BAND 9030-220004 | Skladem | 62,15 Kč | ||
| 10 | MOUNTING BRACKET，HOOK 7030-221140 | Skladem | 77,68 Kč | ||
| 11 | CABLE BOLT, TAIL BOX 7030-010508 | Skladem | 31,07 Kč | ||
| 12 | FIXING CABLE, TAIL BOX 7030-010500-10000 | Skladem | 348,19 Kč | ||
| 13 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 14 | BOLT M8x20 5HY0-220113 | Skladem | 31,07 Kč | ||
| 15 | RH TORSION SPRING 5HYV-220007-1P00 | Skladem | |||
| 15 | TORSIONAL SPRING, RH 5HY0-220007 | Skladem | |||
| 16 | LH FLIP TORSION SPRING 5HYV-220006-1P00 | Skladem | |||
| 16 | TORSIONAL SPRING, LH 5HY0-220006 | Skladem | |||
| 17 | AIR SPRING 5HY0-222080-20000 | Není skladem | |||
| 18 | RUBBER MAT 5HY0-220004 | Skladem | 46,61 Kč | ||
| 19 | REAR LICENSE BRACKET 5HYV-220010-1C00 | Skladem | |||
| 20 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 21 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 22 | HOOK, CARGO BOX 5HY0-222010 | Skladem | 201,97 Kč | ||
| 23 | LH BRACKET, CARGO BOX DOOR 5HY0-222020 | Skladem | |||
| 24 | RH BRACKET, CARGO BOX DOOR 5HY0-222030-10000 | Skladem | |||
| 25 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 26 | LIMIT PLATE ,CARGO BOX DOOR 5HY0-220009 | Skladem | |||
| 27 | LOCK, LH REAR DOOR 5HY0-222060 | Skladem | 493,68 Kč | ||
| 28 | LOCK, RH REAR DOOR 5HY0-222070 | Skladem | 493,68 Kč | ||
| 29 | LH ROTATION SHAFT ASSY 5HY0-222110-10000 | Skladem | 574,85 Kč | ||
| 30 | RH ROTATION SHAFT ASSY 5HY0-222120-10000 | Skladem | 233,05 Kč | ||
| 31 | SLEEVE, ROTATE 7030-220104 | Skladem | 46,61 Kč | ||
| 32 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 33 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 34 | DAMPER, CARGO BOX ADJUSTING 7030-221710 | Skladem | 93,22 Kč | ||
| 35 | NUT M8 30200-080810 | Skladem | 29,02 Kč | ||
| 36 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 37 | BRACKET, TOWING POWER 9AWA-036000 | Skladem | 77,68 Kč | ||
| 38 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 39 | SCREW, PIN SHAFT 5HY#-221601-1000 | Není skladem | |||
