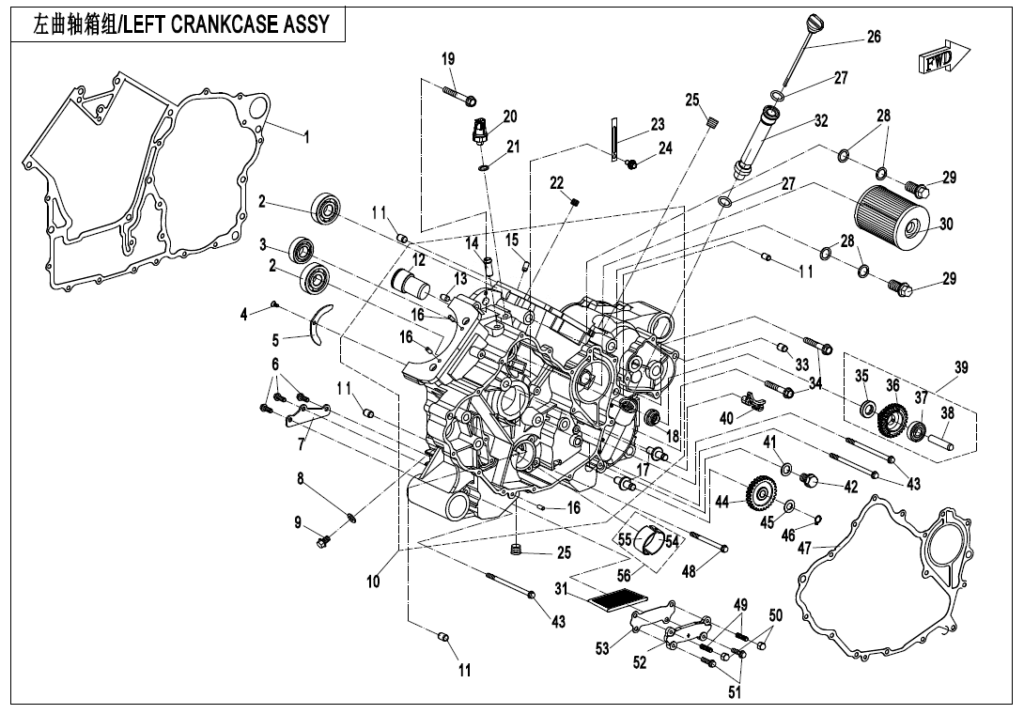

E01-1 LEFT CRANKCASE ASSY.
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | GASKET, CRANKCASE 0JWA-011001-30000 | Skladem | 652,53 Kč | ||
| 02 | Ložisko 30499-01700 | Skladem | 357,34 Kč | ||
| 03 | BEARING 6203 30400-01704 | Skladem | 310,73 Kč | ||
| 04 | Šroub (vrut) 30122-040010850 | Skladem | 15,54 Kč | ||
| 05 | THRUST WASHER, CRANKCASE 0800-011003 | Skladem | 174,09 Kč | ||
| 06 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 07 | INNER PLATE,OIL STRAINER 0JWA-011008 | Není skladem | |||
| 08 | WASHER 8.5 0010-023305 | Skladem | 43,52 Kč | ||
| 09 | BOLT M8×12.5, FLANGE 0180-332002-0010 | Skladem | 15,54 Kč | ||
| 10 | LH CRANKCASE ASSY 0JWA-011100-20001 | Skladem | 11 636,76 Kč | ||
| 11 | DOWEL PIN φ10×14 0010-021005 | Skladem | 15,54 Kč | ||
| 12 | GEARSHAFT,REVERSE 0JWA-060001-10000 | Skladem | 170,90 Kč | ||
| 13 | SOLID PIN 8×14 0700-022018 | Skladem | 15,54 Kč | ||
| 14 | JOINT , BREATHER HOSE 0010-013006-0010 | Skladem | 43,52 Kč | ||
| 15 | NOZZLE VALVE ASSY 0800-011400-00001 | Skladem | 186,44 Kč | ||
| 16 | ROLLER NEEDLE P5×11.8 30406-00500 | Skladem | 15,54 Kč | ||
| 17 | IDLE GEAR SHAFT, BREATHER 0800-011104 | Skladem | 201,97 Kč | ||
| 18 | SEAT, BREATHER 0800-011105 | Skladem | 108,75 Kč | ||
| 19 | BOLT M8×60 0130-011109-0010 | Skladem | 31,07 Kč | ||
| 20 | OIL PRESSURE SWITCH 0800-012400 | Skladem | 319,17 Kč | ||
| 21 | WASHER 10 0010-060010 | Skladem | 31,07 Kč | ||
| 22 | RESTRICTION PLUG 0800-011013-00001 | Skladem | 15,54 Kč | ||
| 23 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 24 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
| 25 | SCREW PLUG 0800-011006-00001 | Skladem | 31,07 Kč | ||
| 26 | DIPSTICK COMP, ENGINE OIL 0JWA-014100 | Skladem | |||
| 27 | O-SEAL RING 18×3.55 0110-013030 | Skladem | 15,54 Kč | ||
| 28 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 29 | BOLT M14×1.5×32 0180-011007-0010 | Skladem | 62,15 Kč | ||
| 30 | OIL FILTER, ENGINE 0800-011300-0004 | Skladem | 465,70 Kč | ||
| 31 | OIL STRAINER 0JWA-011009 | Skladem | 87,05 Kč | ||
| 32 | JOINT PIPE,,OIL DIPSTICK 0800-011011-1000 | Skladem | 466,09 Kč | ||
| 33 | DOWEL PIN φ8×14 0010-080008 | Skladem | 15,54 Kč | ||
| 34 | BOLT M8×50 0040-012006-0010 | Skladem | 43,52 Kč | ||
| 35 | OIL SEAL 15×26×6 0800-011203 | Skladem | 108,75 Kč | ||
| 36 | GEAR, BREATHER 0800-011201 | Skladem | 62,15 Kč | ||
| 37 | Ložisko 30400-01003 | Skladem | 93,22 Kč | ||
| 38 | SHAFT, BREATHER 0800-011202 | Skladem | 77,68 Kč | ||
| 39 | BREATHER ASSY 0800-011200 | Skladem | 326,26 Kč | ||
| 40 | CHAIN GUARD 0800-011007 | Skladem | 46,61 Kč | ||
| 41 | WASHER 12 0010-021014 | Skladem | 29,02 Kč | ||
| 42 | DRAIN BOLT, MAGNETIC M12X1.5 0180-011500 | Skladem | 116,06 Kč | ||
| 43 | BOLT M6×105 0030-011006-0010 | Skladem | 31,07 Kč | ||
| 44 | IDLE GEAR, BREATHER 0800-011004 | Skladem | 357,34 Kč | ||
| 45 | WASHER 10 0800-011005 | Skladem | 31,07 Kč | ||
| 46 | CIRCLIPS FOR SHAFT10 30801-01005 | Skladem | 29,02 Kč | ||
| 47 | GASKET, LH CRANKCASE COVER 0JWA-011004-30000 | Skladem | 406,22 Kč | ||
| 48 | BOLT M6x75 0A70-011005-00001 | Skladem | 15,54 Kč | ||
| 49 | Šroub 30017-060022110 | Není skladem | |||
| 50 | CAP-SHAPE BOLT M6 30212-060810 | Skladem | 31,07 Kč | ||
| 51 | BOLT M6x22 0010-080013-0010 | Skladem | 15,54 Kč | ||
| 52 | OUTER PLATE,OIL STRAINER 0JWA-011002 | Skladem | 116,06 Kč | ||
| 53 | OUTER GASKET, STRAINER 0JWA-011003-10000 | Skladem | 15,54 Kč | ||
| 54 | PLAIN BEARING 2 BLUE@THICK 0800-011103-00021 | Skladem | 246,63 Kč | ||
| 54 | PLAIN BEARING 2 RED@THIN 0800-011103-00011 | Skladem | 246,84 Kč | ||
| 55 | PLAIN BEARING 1 BLUE@THICK 0800-011102-00021 | Skladem | 246,84 Kč | ||
| 55 | PLAIN BEARING 1 RED@THIN 0800-011102-00011 | Skladem | 246,84 Kč | ||
| 56 | PLAIN BEARING KIT, MAIN SHAFT BLUE 0800-0111B0-00001 | Není skladem | 419,48 Kč | ||
| 56 | PLAIN BEARING KIT, MAIN SHAFT RED 0800-0111A0-00001 | Skladem | 419,48 Kč | ||
