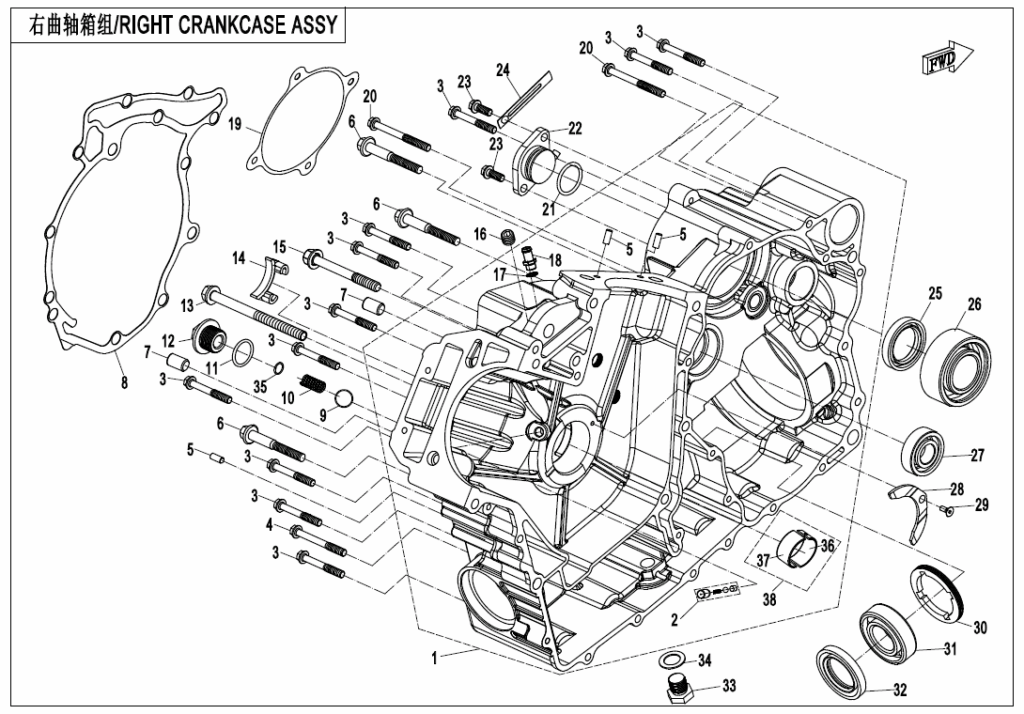

E01-2-B-V2 RIGHT CRANKCASE ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RH CRANKCASE ASSY 0JWA-012100-20004 | Není skladem | |||
| 02 | NOZZLE VALVE ASSY 0800-011400-00001 | Skladem | 186,44 Kč | ||
| 03 | BOLT M6x45 0180-013208-0010 | Skladem | 15,54 Kč | ||
| 04 | BOLT M6×55 0010-021018-0010 | Skladem | 15,54 Kč | ||
| 05 | ROLLER NEEDLE P5×11.8 30406-00500 | Skladem | 15,54 Kč | ||
| 06 | BOLT M8×60 0130-011109-0010 | Skladem | 31,07 Kč | ||
| 07 | DOWEL PIN φ10×14 0010-021005 | Skladem | 15,54 Kč | ||
| 08 | GASKET(1), CVT CASE 0JWA-012001 | Skladem | 101,56 Kč | ||
| 09 | STEEL BALL 3120015 | Skladem | 15,54 Kč | ||
| 10 | SPRING,RELIEF VALVE 0700-012603-1000 | Skladem | 62,15 Kč | ||
| 11 | O-SEAL RING 19×2.5 0180-332004 | Skladem | 15,54 Kč | ||
| 12 | SCREW PLUG,RELIEF VALVE 0GR0-014003 | Skladem | 93,22 Kč | ||
| 13 | Šroub 0130-011115-00001 | Není skladem | |||
| 14 | CHAIN GUARD 0800-011007 | Skladem | 46,61 Kč | ||
| 15 | Šroub 0700-012003-00002 | Skladem | 46,61 Kč | ||
| 16 | Šroub (vrut) 01A0-012010-00001 | Skladem | 15,54 Kč | ||
| 17 | O-SEAL RING 15.8×2.4 0010-011008 | Skladem | 15,54 Kč | ||
| 18 | JOINT, WATER PUMP COVER 0JWA-080009-00001 | Skladem | 77,68 Kč | ||
| 19 | GASKET(2), CVT CASE 0JWA-012002 | Skladem | 31,07 Kč | ||
| 20 | BOLT M6x75 0A70-011005-00001 | Skladem | 15,54 Kč | ||
| 21 | O-SEAL RING 24×2.5 0180-023002 | Skladem | 43,52 Kč | ||
| 22 | GEAR SENSOR 080V-012200-2000 | Skladem | 574,85 Kč | ||
| 23 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 24 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 25 | OIL SEAL 0180-012006-10000 | Skladem | 174,24 Kč | ||
| 26 | BEARING 3206A 30499-03000 | Skladem | 1 755,61 Kč | ||
| 27 | BEARING 6203 30400-01704 | Skladem | 310,73 Kč | ||
| 28 | THRUST WASHER, CRANKCASE 0800-011003 | Skladem | 174,09 Kč | ||
| 29 | Šroub (vrut) 30122-040010850 | Skladem | 15,54 Kč | ||
| 30 | MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFT 0JWA-012004 | Skladem | 261,14 Kč | ||
| 31 | Ložisko 30400-02501 | Skladem | 155,36 Kč | ||
| 32 | OIL SEAL 25×40×8 0010-011002 | Skladem | 139,83 Kč | ||
| 33 | MAGNETIC DRAIN BOLT 0JWA-012200-00001 | Skladem | 108,75 Kč | ||
| 34 | SPACER 14.1×22×1 0JWA-012003 | Skladem | 15,54 Kč | ||
| 35 | Podložka 30304-050440 | Skladem | 15,54 Kč | ||
| 36 | PLAIN BEARING 2 BLUE@THICK 0800-011103-00021 | Skladem | 246,63 Kč | ||
| 36 | PLAIN BEARING 2 RED@THIN 0800-011103-00011 | Skladem | 246,84 Kč | ||
| 37 | PLAIN BEARING 1 BLUE@THICK 0800-011102-00021 | Skladem | 246,84 Kč | ||
| 37 | PLAIN BEARING 1 RED@THIN 0800-011102-00011 | Skladem | 246,84 Kč | ||
| 38 | PLAIN BEARING KIT, MAIN SHAFT BLUE 0800-0111B0-00001 | Není skladem | 419,48 Kč | ||
| 38 | PLAIN BEARING KIT, MAIN SHAFT RED 0800-0111A0-00001 | Skladem | 419,48 Kč | ||
