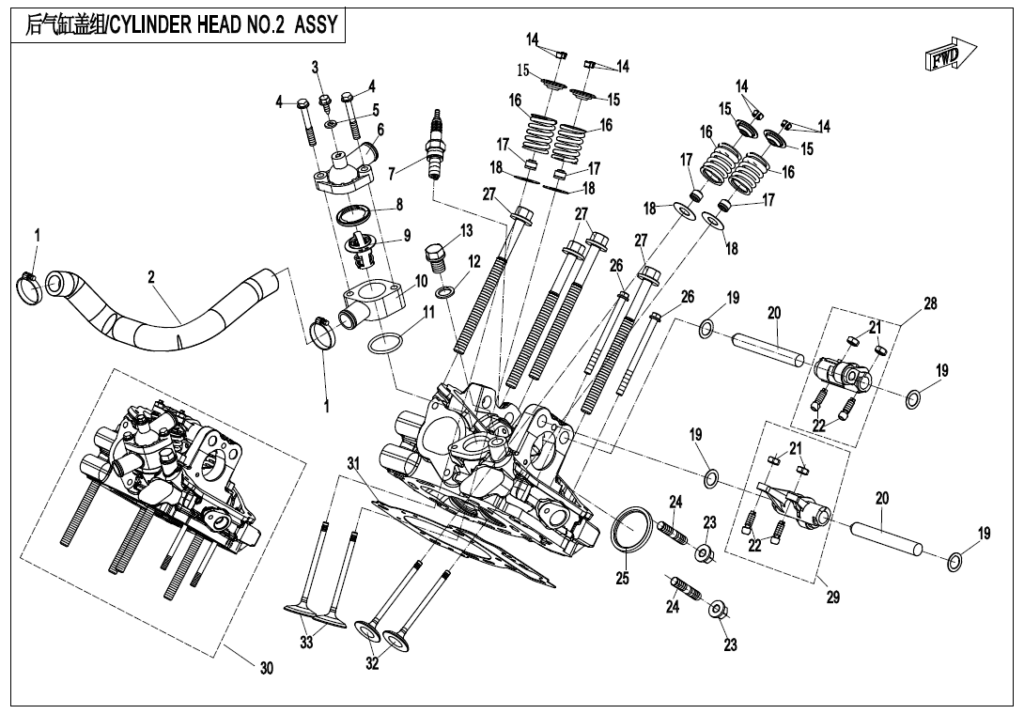

E02-6 CYLINDER HEAD NO.2 ASSY.
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | CLAMP D25 30603-125020 | Skladem | 31,07 Kč | ||
| 02 | CONNECTING PIPE, FRONT & REAR CYLINDER 0JYA-026001 | Skladem | 186,44 Kč | ||
| 03 | SCREW 0JWV-022102-2000 | Skladem | 15,54 Kč | ||
| 04 | BOLT M6x45 0180-013208-0010 | Skladem | 15,54 Kč | ||
| 05 | WASHER 0800-022011-00001 | Skladem | 15,54 Kč | ||
| 06 | THERMOSTAT CAP 0800-022013-10000 | Skladem | 145,08 Kč | ||
| 07 | ZAPALOVACÍ SVÍČKA 0800-022800 | Skladem | 450,56 Kč | ||
| 08 | SEAL RING 0010-022802 | Skladem | 31,07 Kč | ||
| 09 | THERMOSTAT 0800-022700 | Skladem | 372,87 Kč | ||
| 10 | SEAT,THERMOSTAT 0800-022012 | Skladem | 174,09 Kč | ||
| 11 | O-Kroužek 30502-028000N | Skladem | 43,52 Kč | ||
| 12 | WASHER 12.2×18×1.5 0800-022014 | Skladem | 31,07 Kč | ||
| 13 | SCREW PLUG M12x1.5 0800-022015-00001 | Skladem | 31,07 Kč | ||
| 14 | LOCK CLIP, VALVE 0800-022016 | Skladem | 62,15 Kč | ||
| 15 | UPPER SEAT, VALVE SPRING 0800-022007 | Skladem | 87,05 Kč | ||
| 16 | Pružina ventilu 0800-022006-10001 | Skladem | 62,15 Kč | ||
| 17 | SEAL RING, VALVE STEM 0010-022500-10000 | Skladem | 46,61 Kč | ||
| 18 | LOWER SEAT, VALVE SPRING 0800-022008 | Skladem | 43,52 Kč | ||
| 19 | WASHER 12.3×18.5×0.5 0800-022002 | Skladem | 43,52 Kč | ||
| 20 | ROCKER ARM SHAFT 0800-022001 | Skladem | 130,57 Kč | ||
| 21 | ADJUST NUT,VALVE CLEARANCE 0800-022506 | Skladem | 29,02 Kč | ||
| 22 | ADJUST SCREW, VALVE CLEARANCE 0800-022510 | Skladem | 62,15 Kč | ||
| 23 | FLANGE NUT M8 0010-011700-0010 | Skladem | 15,54 Kč | ||
| 24 | STUD 0180-022003-00002 | Skladem | 15,54 Kč | ||
| 25 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 26 | BOLT M6x85 0060-013021-00002 | Skladem | 31,07 Kč | ||
| 27 | BOLT, CYLINDER 0JY0-022003-00001 | Skladem | 101,64 Kč | ||
| 28 | ROCKER ARM ASSY, AIR EXHAUST 0800-022600-20000 | Skladem | 792,36 Kč | ||
| 29 | ROCKER ARM ASSY, AIR INTAKE 0800-022500-20000 | Skladem | 792,36 Kč | ||
| 30 | SECOND CYLINDER HEAD 0JYA-026000-20002 | Skladem | |||
| 31 | GASKET, CYLINDER HEAD 0800-022200-00002 | Skladem | 357,34 Kč | ||
| 32 | VALVE, EXHAUST 0800-022005 | Skladem | 279,66 Kč | ||
| 33 | VALVE, INTAKE 0800-022004 | Skladem | 186,44 Kč | ||
