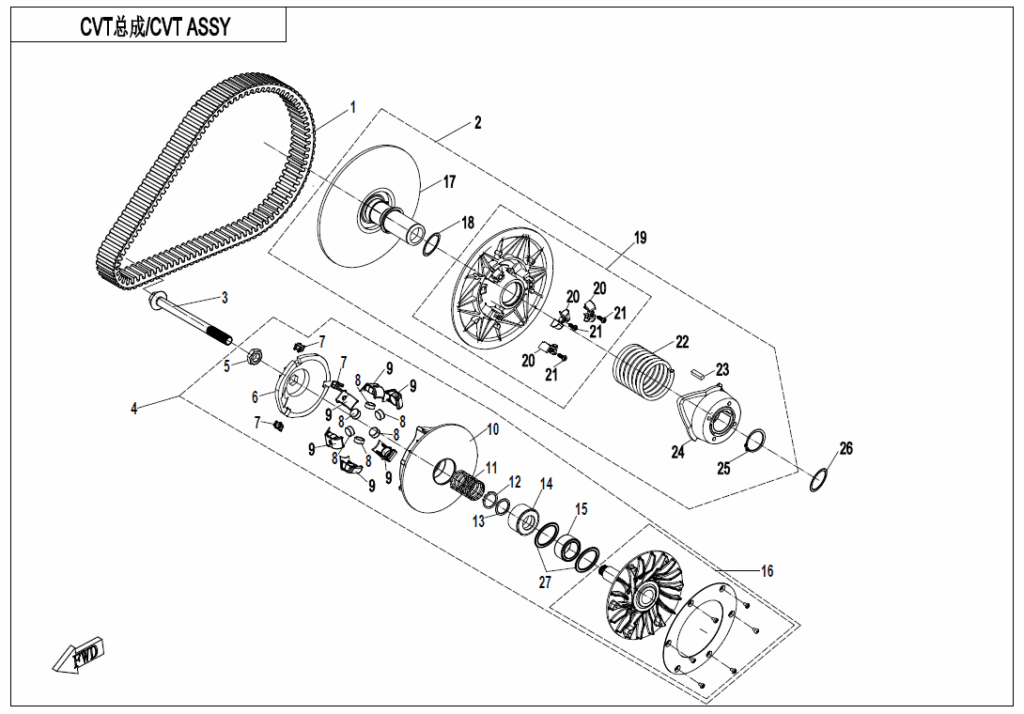

E05-A-V3 CVT ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | ŘEMEN CVT 0JWA-055000-10000 | Skladem | 5 884,99 Kč | ||
| 02 | DRIVEN PULLEY 0JYA-052000-20000 | Skladem | |||
| 03 | BOLT, DRIVE PULLEY 0JY0-050001-00001 | Skladem | 130,57 Kč | ||
| 04 | DRIVE PULLEY ASSY 0JYA-051000-10003 | Skladem | 23 833,24 Kč | ||
| 05 | BOLT, DRIVE PULLEY ⌀22L 0JYA-051013-10001 | Skladem | 1 087,55 Kč | ||
| 06 | THRUST COLLAR 0JYA-051006-10000 | Skladem | 7 553,06 Kč | ||
| 07 | NYLON PARTS, THRUST DISC 0JYA-051004-10000 | Skladem | 450,56 Kč | ||
| 08 | WEIGHT SLIDER 0JYA-051001 | Skladem | 233,05 Kč | ||
| 09 | NYLON PROTECTOR,WEIGHT ROLLER 0GR0-051005 | Skladem | 605,92 Kč | ||
| 10 | MOVING PLATE ASSY, DRIVE PULLEY 0JYA-051100 | Skladem | 13 299,16 Kč | ||
| 11 | SPRING,DRIVE PULLEY 0JY0-051002 | Skladem | 1 258,45 Kč | ||
| 12 | NYLON WASHER 0GR0-051009-10000 | Skladem | 403,95 Kč | ||
| 13 | STEEL WASHER 0GR0-051011 | Skladem | 403,95 Kč | ||
| 14 | SPRING SEAT 0GR0-051001 | Skladem | 2 035,27 Kč | ||
| 15 | NEEDLE BEARING 0JYA-051300 | Skladem | 5 328,99 Kč | ||
| 16 | DRIVE FIXED PULLEY ASSY 0JYA-051200-20000 | Skladem | |||
| 17 | DRIVEN FIXED PULLEY ASSY 0GR0-052100 | Skladem | 15 008,16 Kč | ||
| 18 | NYLON WASHER 0JYD-052001 | Skladem | 108,75 Kč | ||
| 19 | SLIDING FLANGE ASSY 0GR0-0522A0 | Skladem | 11 201,74 Kč | ||
| 20 | NYLON BLOCK 0GR0-052005 | Skladem | 449,74 Kč | ||
| 21 | Šroub (vrut) 0GR0-052006 | Skladem | 124,29 Kč | ||
| 22 | SPRING, DRIVEN PULLEY 0GR0-052001 | Skladem | 3 355,86 Kč | ||
| 23 | TAPER KEY 0GR0-052003 | Skladem | 124,29 Kč | ||
| 24 | CAM PLATE 0GR0-052002 | Skladem | 4 070,54 Kč | ||
| 25 | CIRCLIP 0GR0-052004 | Skladem | 449,74 Kč | ||
| 26 | ADJUSTING WASHER 0GR0-050001-00002 | Skladem | 15,54 Kč | ||
| 27 | BEARING NYLON WASHER 0JYA-051016 | Skladem | 481,63 Kč | ||
