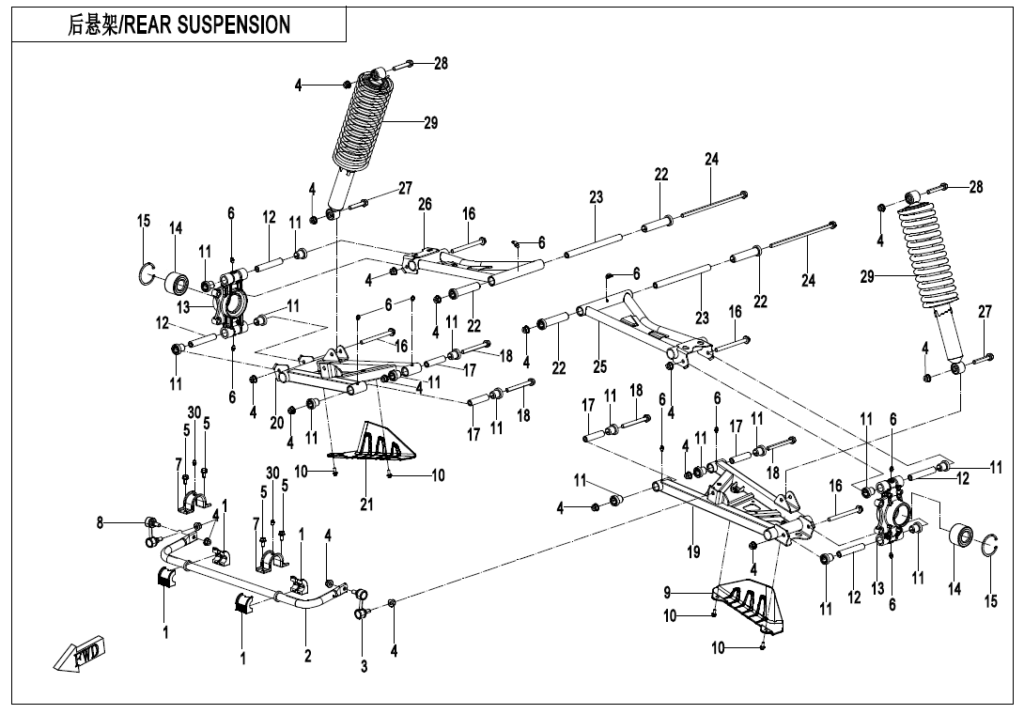

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 02 | REAR SWAY BAR ASSY 5ASV-060610-6000 | Skladem | 1 786,69 Kč | ||
| 03 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 04 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 05 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 06 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 07 | RETAINING COVER 9030-060002 | Skladem | 77,68 Kč | ||
| 08 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 09 | GUARD, REAR LH SWING ARM 5HYV-060201-1000 | Skladem | 124,29 Kč | ||
| 10 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 11 | SHORT BUSHING 5ASV-050002-6000 | Není skladem | 130,57 Kč | ||
| 11 | SHORT BUSHING 5ASV-050002-6001 | Skladem | 130,68 Kč | ||
| 12 | MIDDLE SPACER, REAR BEARING CARRIER 5HY0-060701-00001 | Skladem | 145,08 Kč | ||
| 13 | REAR BEARING CARRIER 5HY0-060703 | Skladem | 2 066,34 Kč | ||
| 14 | HUB BEARING 30411-03080 | Skladem | 1 475,96 Kč | ||
| 14 | HUB BEARING 30411-03081 | Skladem | 963,26 Kč | ||
| 15 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 16 | Šroub 30001-102120110 | Skladem | 62,15 Kč | ||
| 17 | MIDDLE SPACER, REAR LOWER SWING ARM 9060-060201-00002 | Skladem | 116,06 Kč | ||
| 18 | Šroub 30001-102095110 | Skladem | 58,03 Kč | ||
| 19 | REAR LH LOWER SWING ARM 5ASV-060210-6000 | Skladem | 2 175,10 Kč | ||
| 19 | REAR LH LOWER SWING ARM ASSY 5ASV-060210-6001 | Skladem | |||
| 20 | REAR RH LOWER SWING ARM 5ASV-060410-6000 | Skladem | 2 175,10 Kč | ||
| 20 | REAR RH LOWER SWING ARM ASSY 5ASV-060410-6001 | Skladem | |||
| 21 | GUARD, REAR RH SWING ARM 5HYV-060401-1000 | Skladem | 124,29 Kč | ||
| 22 | LONG BUSHING 5ASV-050001-6000 | Skladem | 203,11 Kč | ||
| 23 | MIDDLE SPACER, REAR UPPER SWING ARM 9060-060101-00002 | Skladem | 203,11 Kč | ||
| 24 | MOUNTING SHAFT, REAR ARM 4060-060101 | Skladem | 155,36 Kč | ||
| 25 | REAR LH UPPER SWING ARM 5ASV-060110-6001 | Skladem | 1 242,91 Kč | ||
| 25 | REAR LH UPPER SWING ARM ASSY 5ASV-060110-6002 | Skladem | |||
| 26 | REAR RH UPPER SWING ARM 5ASV-060310-6001 | Skladem | 1 242,91 Kč | ||
| 26 | REAR RH UPPER SWING ARM ASSY 5ASV-060310-6002 | Skladem | |||
| 27 | Šroub 30006-102055110 | Skladem | 31,07 Kč | ||
| 28 | Šroub 30006-102060110 | Skladem | 46,61 Kč | ||
| 29 | Zadní tlumič 5ASV-060500-6000-M1 | Skladem | 7 208,89 Kč | ||
| 30 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
