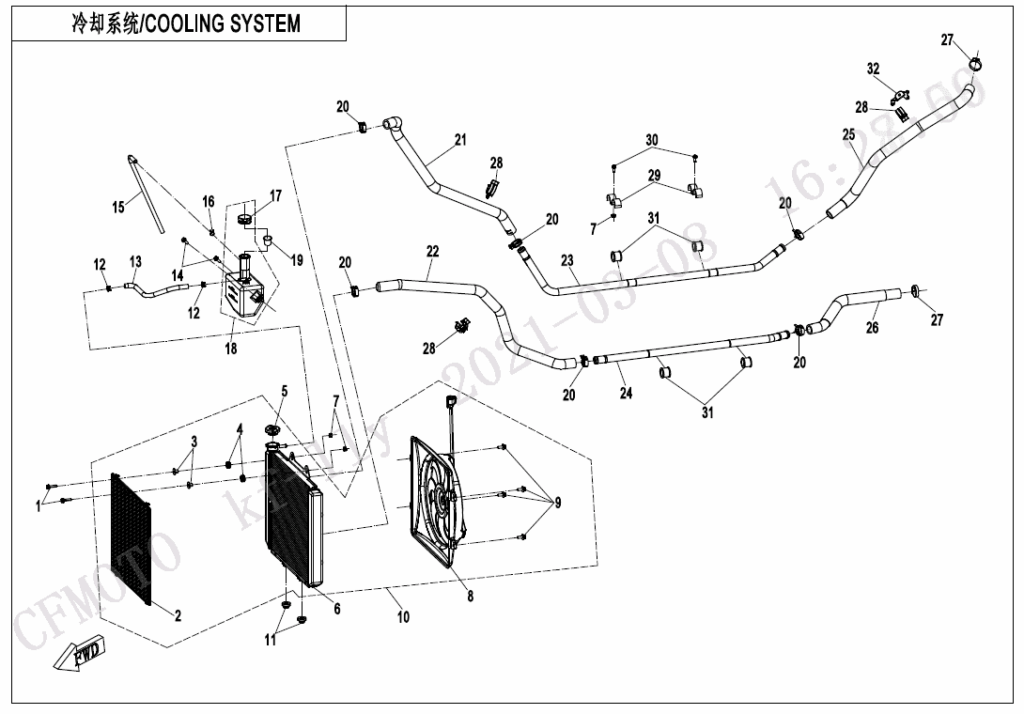

F18-V1 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 02 | GUARD, RADIATOR 5ASV-181001-6000 | Není skladem | |||
| 03 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 04 | DAMPING RUBBER MAT 6KM#-181001-8001 | Skladem | 46,61 Kč | ||
| 05 | CAP, WATER FILLER 5ASV-181000-6000-20 | Skladem | 233,05 Kč | ||
| 06 | RADIATOR ASSY 5ASV-181100-6001 | Skladem | 10 362,78 Kč | ||
| 07 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 08 | FAN MOTOR ASSY 5ASV-181200-6000 | Není skladem | |||
| 09 | RETAINER KIT 5ASV-181000-6000-23 | Není skladem | |||
| 10 | RADIATOR ASSY 5ASV-181000-6001 | Skladem | 19 498,18 Kč | ||
| 11 | PIN RUBBER CAP, RADIATOR 9060-180026 | Skladem | 43,52 Kč | ||
| 12 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 13 | CONNECTING PIPE, RESERVOIR TANK 5ASV-180007-6000 | Skladem | |||
| 14 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 15 | OVERFLOW HOSE, RESERVOIR 5HY0-180008 | Skladem | 46,61 Kč | ||
| 16 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
| 17 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 18 | RESERVOIR TANK ASSY 5HY0-180010 | Skladem | 435,02 Kč | ||
| 19 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 20 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
| 21 | WATER INLET PIPE, RADIATOR 5ASV-180001-6001 | Skladem | 714,67 Kč | ||
| 22 | RADIATOR WATER OUTLET HOSE 5ASV-180002-5000 | Skladem | 621,46 Kč | ||
| 23 | WATER INLET PIPE, ALUMINUM 5ASV-180005-5000 | Skladem | 450,56 Kč | ||
| 24 | WATER OUTLET PIPE, ALUMINUM 5ASV-180006-5000 | Skladem | 357,34 Kč | ||
| 25 | WATER OUTLET PIPE,ENGINE 5ASV-180004-5000 | Skladem | 466,09 Kč | ||
| 26 | WATER INTLET PIPE,ENGINE 5ASV-180003-5000 | Skladem | 248,58 Kč | ||
| 27 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 28 | HOSE CLIP 5ASV-180008-6000 | Skladem | 46,61 Kč | ||
| 29 | CLASP,WATER HOSE 9030-180006 | Skladem | |||
| 30 | SCREW COMP 30112-060016410 | Skladem | 31,07 Kč | ||
| 31 | RUBBER COLLAR,WATER HOSE 9030-180009 | Není skladem | |||
| 32 | BRACKET, HOSE CLIP 5ASV-180009-6000 | Není skladem | |||
