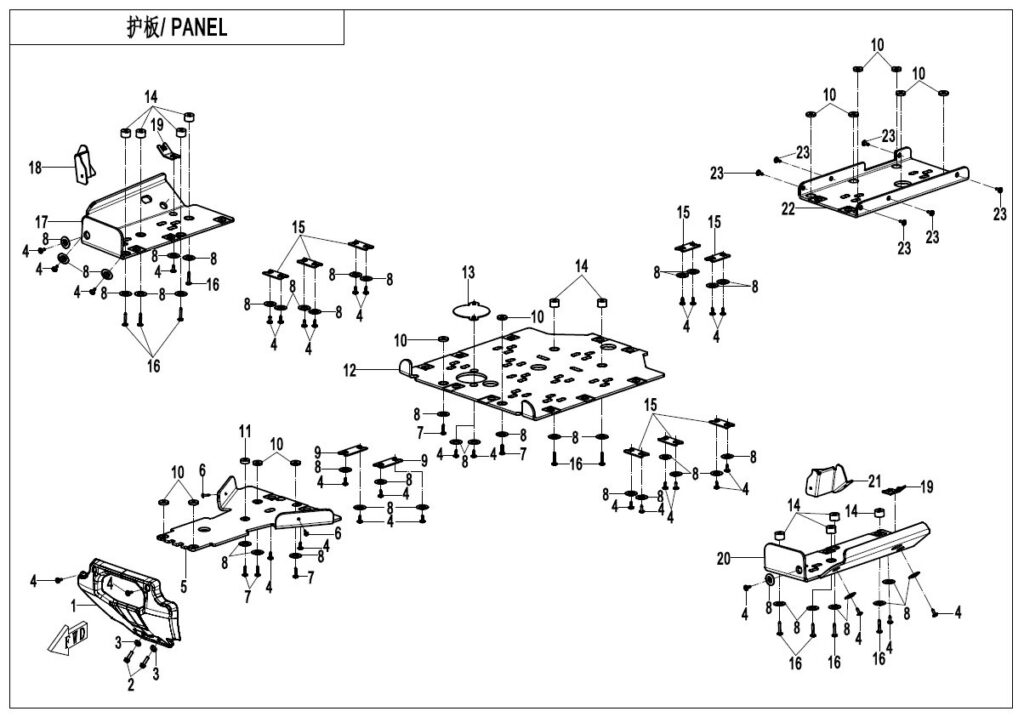

F80-4-V2 PANEL(OVERLAND)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT PANEL ASSY 9AYV-804110-6700 | Skladem | 4 148,22 Kč | ||
| 2 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
| 3 | Podložka 30304-080420 | Skladem | 15,54 Kč | ||
| 4 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 5 | FRONT SKID PLATE 9AYV-804101-6701 | Skladem | 1 879,90 Kč | ||
| 6 | SELF-TAPPING SCREW 30110-480250010 | Skladem | 15,54 Kč | ||
| 7 | M6×30 BOLT 5BWV-040018-5000 | Skladem | 31,07 Kč | ||
| 8 | SKID PLATE WASHER 9CQV-804360-3000 | Skladem | 46,61 Kč | ||
| 9 | EXTENDED CONNECTING PLATE ASSY 9AWV-806107-8001 | Skladem | 62,15 Kč | ||
| 10 | WASHER 9AWV-806110-8001 | Skladem | 62,15 Kč | ||
| 11 | WASHER 9AWV-806113-8001 | Skladem | 62,15 Kč | ||
| 12 | MIDDLE SKID PLATE 9AYV-804102-6702 | Skladem | 3 076,21 Kč | ||
| 13 | ROUND METAL SHEET ASSY 9AWV-806115-8000 | Skladem | 419,48 Kč | ||
| 14 | WASHER 9AWV-806112-8001 | Skladem | 62,15 Kč | ||
| 15 | CONNECTING PLATE ASSY 5BWV-804110-5001 | Skladem | 62,15 Kč | ||
| 16 | BOLT 9AYV-804106-6700 | Skladem | 15,54 Kč | ||
| 17 | RH SKID PLATE 9AYV-804105-6701 | Skladem | 2 004,20 Kč | ||
| 18 | RH SKID PLATE CONNECTING METAL SHEET 9AWV-806117-8000 | Skladem | 761,28 Kč | ||
| 19 | BENT CONNECTING PLATE ASSY 9AWV-806108-8001 | Skladem | 62,15 Kč | ||
| 20 | LH SKID PLATE 9AYV-804104-6701 | Skladem | 2 004,20 Kč | ||
| 21 | LH SKID PLATE CONNECTING METAL SHEET 9AWV-806116-8000 | Skladem | 761,28 Kč | ||
| 22 | REAR SKID PLATE 9AYV-804103-6702 | Skladem | 1 662,39 Kč | ||
| 23 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
