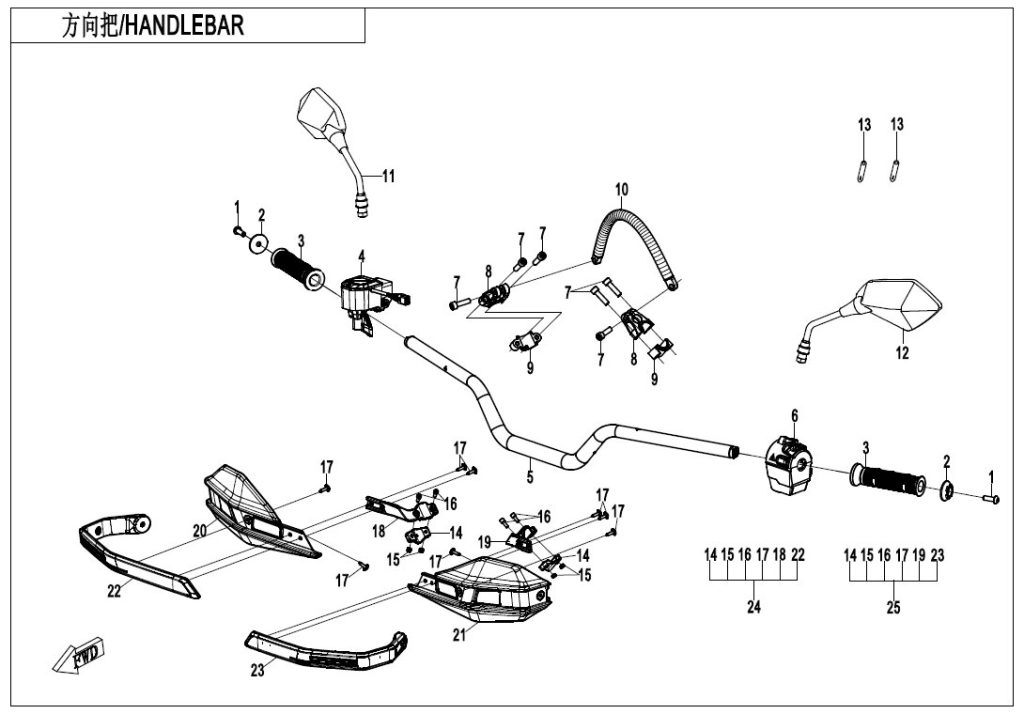

F10-1-V2 HANDLEBAR
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SCREW M8x20 30121-080020870 | Skladem | 15,54 Kč | ||
| 2 | END CAP, HANDLEBAR 9DQV-100003-3000 | Skladem | 15,54 Kč | ||
| 3 | RUBBER SLEEVE, HAND GRIP 9DQV-100005-3000 | Skladem | 170,90 Kč | ||
| 4 | RH HANDLEBAR SWITCH ASSY 9AWV-169080-1101 | Skladem | |||
| 5 | HANDLEBAR LOWER BLOCK 9AYV-101100-6700 | Skladem | 1 848,83 Kč | ||
| 6 | LH HANDLEBAR SWITCH ASSY 9AWV-166000-8401-10 | Skladem | 5 406,67 Kč | ||
| 6 | LH HANDLEBAR SWITCH ASSY 9AWV-166000-8402-10 | Skladem | |||
| 7 | Šroub (vrut) 30102-080030810 | Skladem | 15,54 Kč | ||
| 8 | ARMREST INNER BLOCK 9AYV-109101-8500 | Skladem | 139,83 Kč | ||
| 9 | ARMREST OUTER BLOCK 9AYV-109102-8500 | Skladem | 139,83 Kč | ||
| 10 | HANDLEBAR ARMREST ASSY 9AYV-109100-8500 | Skladem | 761,28 Kč | ||
| 11 | REAR VIEW MIRROR ASSY, RH 9AY0-200300 | Skladem | 590,38 Kč | ||
| 12 | REAR VIEW MIRROR ASSY, LH 9AY0-200200 | Skladem | 590,38 Kč | ||
| 13 | TIE BAND, CLUTCH 6KJ0-100002 | Skladem | 29,02 Kč | ||
| 14 | HANDLEBAR GUARD BRACKET LH 9AWV-101205-8001 | Skladem | 31,07 Kč | ||
| 15 | NUT M6 30224-060810 | Skladem | 15,54 Kč | ||
| 16 | SCREW M6x22 30102-060022870 | Skladem | 15,54 Kč | ||
| 17 | INNER HEX SCREW M6x12 6KM#-040702-8000 | Skladem | 31,07 Kč | ||
| 18 | RH HAND GUARD RETAINER 2 9AYV-100095-8500 | Skladem | |||
| 19 | LH HAND GUARD RETAINER 2 9AYV-100094-8500 | Skladem | |||
| 20 | RH HAND GUARD 9AYV-102203-8500-0BQ00 | Skladem | |||
| 20 | RH HAND GUARD 9AYV-102203-8500-0ET00 | Skladem | |||
| 21 | LH HAND GUARD 9AYV-102201-8500-0BQ00 | Skladem | |||
| 21 | LH HAND GUARD 9AYV-102201-8500-0ET00 | Skladem | |||
| 22 | RH HAND GUARD RETAINER 9AYV-100092-8500 | Skladem | |||
| 23 | LH HAND GUARD RETAINER 9AYV-100091-8500 | Skladem | |||
| 24 | RH HAND GUARD ASSY PART SH-9AYV-100092 | Skladem | |||
| 25 | LH HAND GUARD ASSY PART SH-9AYV-100091 | Skladem | |||
