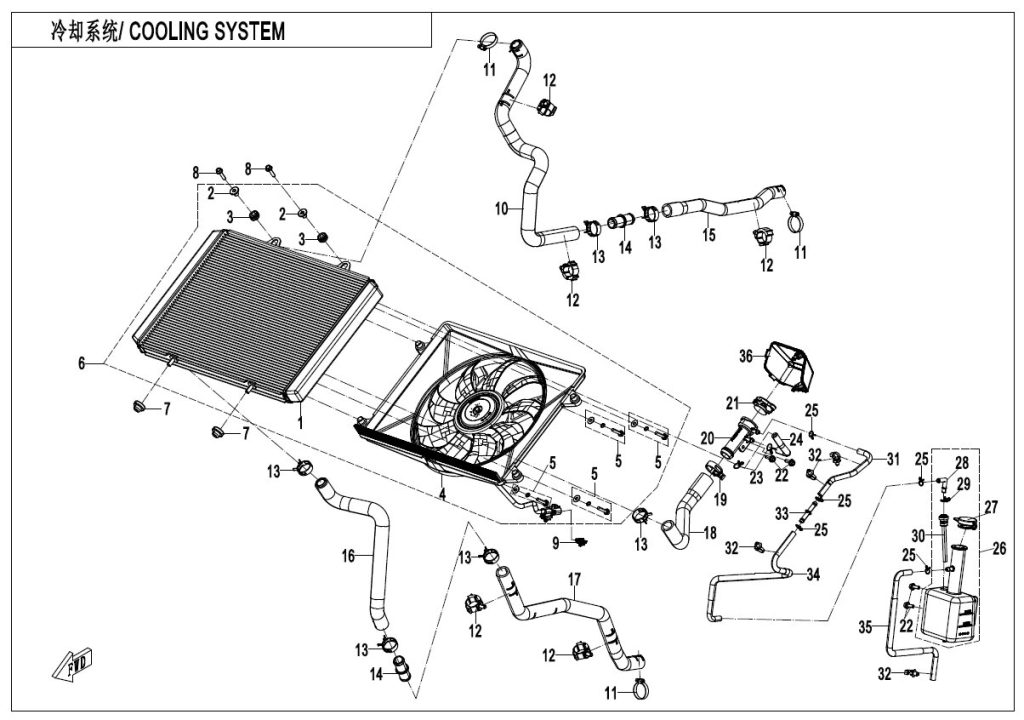

F18 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | RADIATOR 9AYV-182120-8500 | Skladem | |||
| 2 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 3 | DAMPING RUBBER MAT 6KM#-181001-8001 | Skladem | 46,61 Kč | ||
| 4 | FAN 9AYV-182130-8500 | Skladem | |||
| 5 | HEX FLANGE BOLT ASSY 9AYV-182100-8500-20 | Skladem | |||
| 6 | COOLING MODULE 9AYV-182100-8500 | Skladem | |||
| 7 | PIN RUBBER CAP, RADIATOR 9060-180026 | Skladem | 43,52 Kč | ||
| 8 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 9 | CLIP CFCV-CAC002-2000-M1 | Skladem | 31,07 Kč | ||
| 10 | RADIATOR INLET PIPE 9AYV-183030-8500 | Skladem | |||
| 11 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 12 | CLASP 27 5HYV-188002-6000 | Skladem | 31,07 Kč | ||
| 13 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
| 14 | STRAIGHT THROUGH 9AYV-186260-8500 | Skladem | 62,15 Kč | ||
| 15 | ENGINE WATER OUTLET PIPE 9AYV-183060-8500 | Skladem | |||
| 16 | RADIATOR INLET PIPE 9AYV-183040-8500 | Skladem | |||
| 17 | ENGINE WATER INTLET PIPE 9AYV-183050-8500 | Skladem | |||
| 18 | WATER FILLING PORT JOINT PIPE 9AYV-185070-8500 | Skladem | |||
| 19 | STEEL BAND CLAMP 34 7000-180007-00001 | Skladem | 101,56 Kč | ||
| 20 | WATER FILLING PORT 9060-180025-1000 | Skladem | 217,51 Kč | ||
| 21 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 22 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 23 | CLAMP A14 30601-114010 | Skladem | 15,54 Kč | ||
| 24 | RADIATOR AIR REMOVAL PIPE 9AYV-183400-8500 | Skladem | |||
| 25 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
| 26 | RESERVOIR TANK ASSY. 7030-180900 | Skladem | 481,63 Kč | ||
| 27 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 28 | JOINT, RESERVOIR TANK 8030-180302 | Skladem | 31,07 Kč | ||
| 29 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 30 | HOSE, RESERVOIR TANK 8010-180028 | Skladem | 46,61 Kč | ||
| 31 | PIPE 1 9AYV-183500-8500 | Skladem | |||
| 32 | CLASP 15 5HYV-188001-6000 | Skladem | 31,07 Kč | ||
| 33 | JOINT 5GYV-185250-1000 | Skladem | |||
| 34 | PIPE 2 9AYV-183510-8500 | Skladem | |||
| 35 | RESERVOIR WATER PIPE 9AYV-185100-8500 | Skladem | |||
| 36 | RADIATOR FILLER CAP 9AYV-048015-8500 | Skladem | |||
