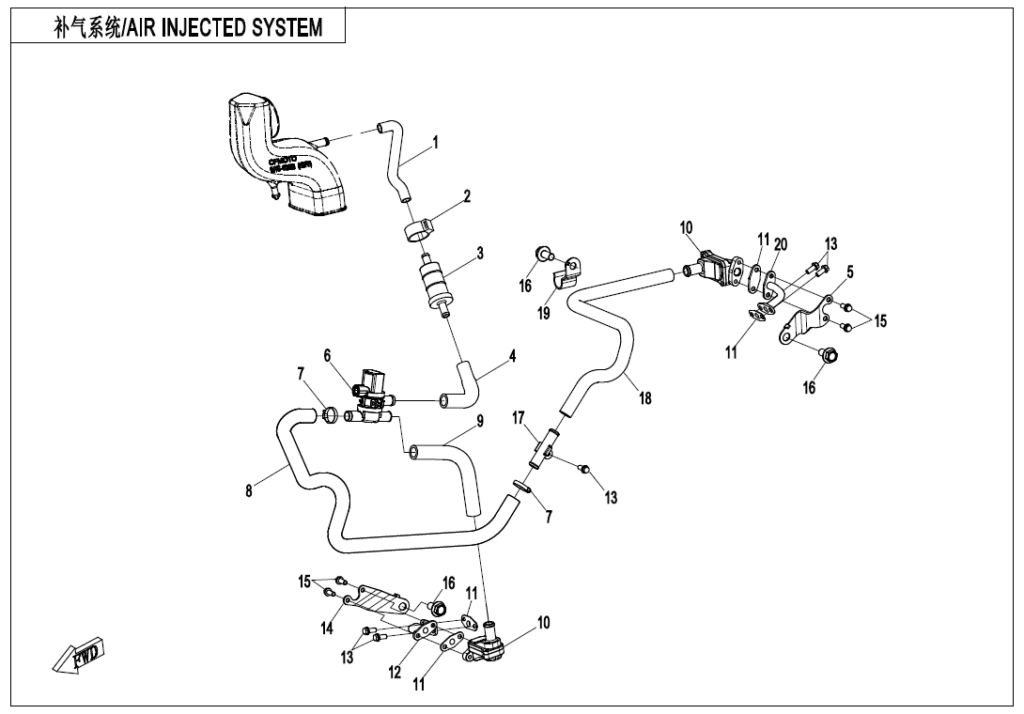

F00-3-V2 AIR INJECTED SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | GULP HOSE, SMALL AIR FILTER 0JYC-114103 | Skladem | 58,03 Kč | ||
| 02 | RUBBER SLEEVE, GULP AIR FILTER 0JYC-114104 | Skladem | |||
| 03 | GULP AIR FILTER 0JYC-114000 | Není skladem | 186,44 Kč | ||
| 04 | AIR INLET HOSE, SWITCH VALVE 0JYC-114101 | Skladem | 101,56 Kč | ||
| 05 | GULP PIPE BRACKET, SECOND CYLINDER 0JYC-028221 | Skladem | 77,68 Kč | ||
| 06 | SECONDARY GULP VALVE 0JY#-179000-3000 | Skladem | 1 258,45 Kč | ||
| 07 | CLAMP, SOFT HOSE 30604-116500 | Skladem | 72,54 Kč | ||
| 08 | GULP HOSE 2, SECOND CYLINDER 0JYC-028404 | Skladem | 186,44 Kč | ||
| 09 | GULP HOSE, FIRST CYLINDER 0JYC-022004 | Skladem | 145,08 Kč | ||
| 10 | GULP ONE-WAY VALVE 0JYC-022200 | Skladem | 357,34 Kč | ||
| 11 | GASKET, CHECK VALVE 8030-020101 | Skladem | 62,15 Kč | ||
| 12 | AIS PIPE, FIRST CYLINDER 0JYC-028210-00001 | Skladem | |||
| 13 | BOLT M6×14 30001-060014810 | Skladem | 15,54 Kč | ||
| 14 | GULP PIPE BRACKET, FIRST CYLINDER 0JYC-028211 | Skladem | 77,68 Kč | ||
| 15 | Šroub 30001-060016810 | Není skladem | |||
| 16 | Šroub 30006-100020810 | Skladem | |||
| 17 | JOINT, GULP HOSE 0JYC-028410 | Skladem | |||
| 18 | GULP HOSE 1, SECOND CYLINDER 0JYV-028401-3100 | Skladem | |||
| 19 | GULP HOSE 1 BRACKET, SECOND CYLINDER 0JYC-028402 | Skladem | |||
| 20 | AIS PIPE, SECOND CYLINDER 0JYC-028220-00001 | Není skladem | |||
