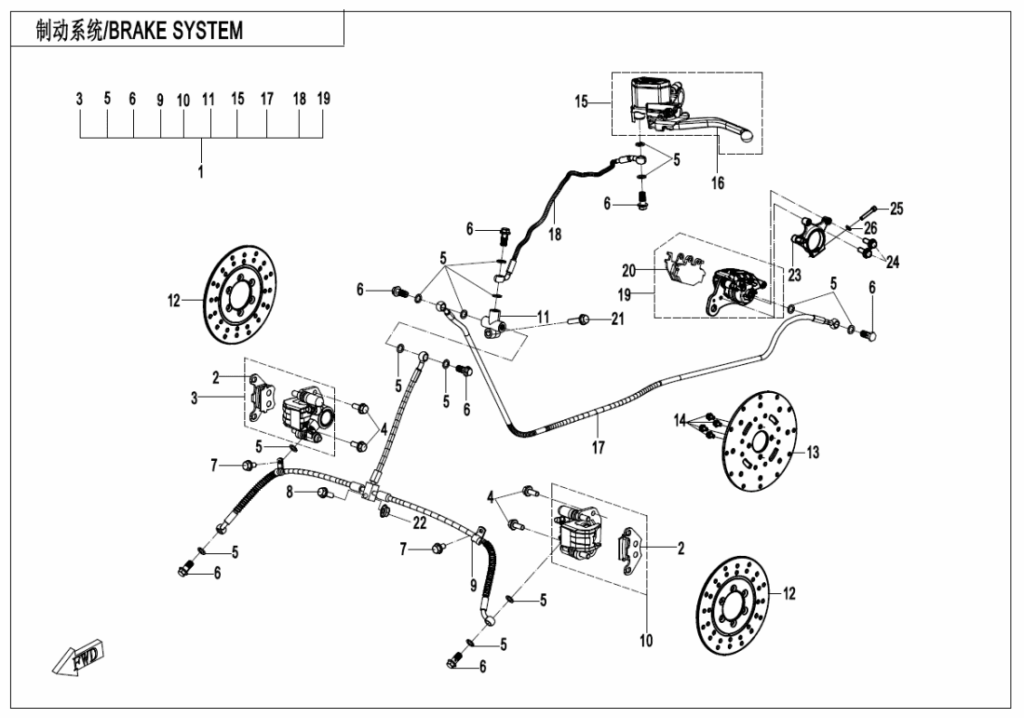

F08-A BRAKE SYSTEM(CAM ADJUSTMENT)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HYDRAULIC BRAKE ASSY 9RHV-081000-2100-M1 | Skladem | |||
| 2 | FRONT BRAKE PAD ASSY 9RHV-0813A0 | Skladem | 246,84 Kč | ||
| 3 | RH LOWER PUMP ASSY 9RHV-081500-1000-M1 | Skladem | 1 165,23 Kč | ||
| 4 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 5 | SULFIDE WASHER 9RHV-081000-1000-21 | Skladem | 15,54 Kč | ||
| 6 | JOINT BOLT 9RHV-081000-1000-20 | Není skladem | |||
| 7 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 8 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 9 | BRAKE HOSE ASSY 4 9RHV-081040-1200-M1 | Skladem | |||
| 10 | LH LOWER PUMP ASSY 9RHV-081400-1000-M1 | Skladem | 1 165,23 Kč | ||
| 11 | T-JOINT 9RHV-081000-1200-20 | Skladem | |||
| 12 | FRONT BRAKE DISC 9RHV-081001-1000 | Skladem | 566,28 Kč | ||
| 13 | REAR BRAKE DISC 9RHV-081002-1000 | Skladem | 543,77 Kč | ||
| 14 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 15 | REAR HAND BRAKE UPPER PUMP ASSY 9RHV-081300-1000-M1 | Skladem | 1 258,45 Kč | ||
| 16 | LEVER 9RHV-081300-1000-27 | Není skladem | |||
| 17 | BRAKE HOSE ASSY 3 9RHV-081030-2100-M1 | Skladem | |||
| 18 | BRAKE HOSE ASSY 1 9RHV-081010-1200-M1 | Skladem | |||
| 19 | REAR LOWER PUMP ASSY 9RHV-081200-1000-M1 | Skladem | 1 460,42 Kč | ||
| 20 | REAR BRAKE PAD ASSY 9RHV-0815A0 | Skladem | 310,73 Kč | ||
| 21 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 22 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 23 | REAR BRAKE CALIPER BRACKET 9RHV-080003-1000 | Skladem | 1 351,67 Kč | ||
| 24 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 25 | INNER HEX SCREW M8x50 30102-080050810 | Skladem | 15,54 Kč | ||
| 26 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
