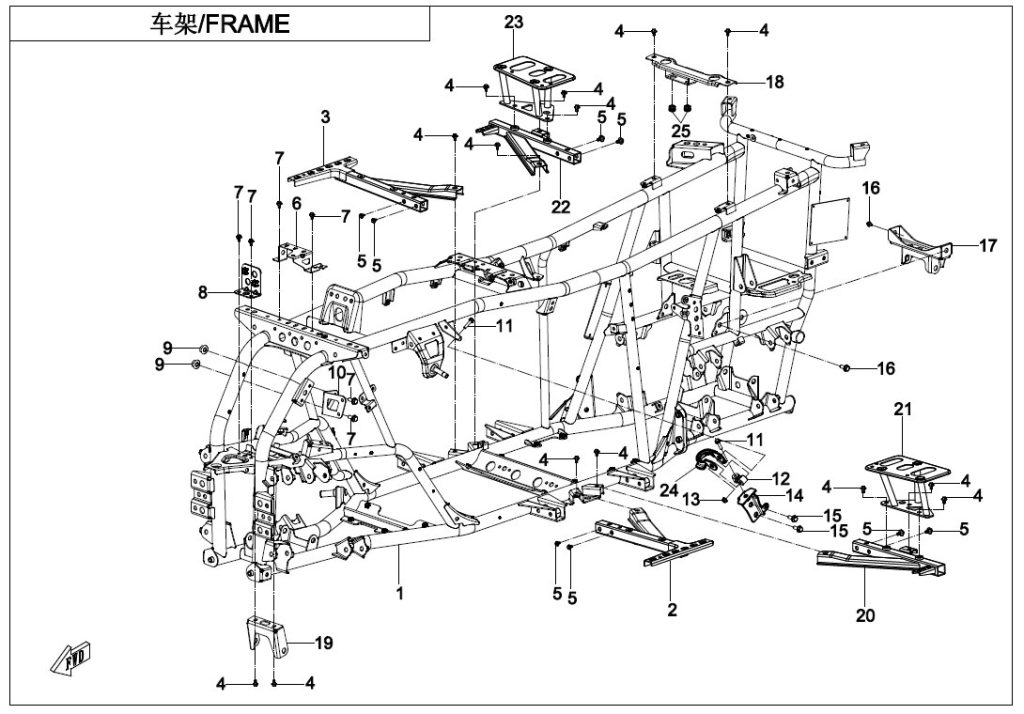

F03-V2 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRAME ASSY 9DQV-031000-3005-01-0BP00 | Skladem | |||
| 01 | FRAME ASSY 9CQV-031000-3005-01-0BP00 | Skladem | 28 027,67 Kč | ||
| 02 | LH FRONT FOOT PEDAL ASSY 9DQV-030300-3000 | Skladem | 885,57 Kč | ||
| 03 | RH FRONT FOOT PEDAL ASSY 9DQV-030400-3000 | Není skladem | 885,57 Kč | ||
| 04 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 05 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 06 | BRACKET, CVT AIR INLET PIPE 9DQV-030003-3000 | Není skladem | 93,22 Kč | ||
| 07 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 08 | BRACKET, BRAKE VALVE 9DQV-030030-3000 | Není skladem | 77,68 Kč | ||
| 09 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 10 | BRACKET, CANISTER 9DQV-030001-3000 | Není skladem | 77,68 Kč | ||
| 11 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 12 | CONNECTING PARTS, ENGINE UPPER BRACKET 7020-000160 | Skladem | 290,16 Kč | ||
| 13 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 14 | UPPER BRACKET, ENGINE 9DRV-030040-B001 | Skladem | 93,22 Kč | ||
| 15 | Šroub 30006-100020810 | Skladem | 31,07 Kč | ||
| 16 | Šroub (vrut) 30102-102020810 | Skladem | 31,07 Kč | ||
| 17 | UPPER BRACKET, REAR GEAR CASE 9DQV-030090-3000 | Skladem | 466,09 Kč | ||
| 18 | BRACKET, SEAT 9DQV-030120-3000 | Skladem | 275,88 Kč | ||
| 19 | UPPER BRACKET, FRONT GEAR CASE 9DQV-030010-3000 | Skladem | 232,32 Kč | ||
| 20 | LH REAR LOWER FOOTREST ASSY 9CQV-030100-3000 | Skladem | 1 149,69 Kč | ||
| 20 | UPPER LIMIT BRACKET ASSY, ENGINE 9DSV-030060-6000 | Není skladem | 139,83 Kč | ||
| 21 | LH REAR UPPER FOOTREST ASSY 9CQV-030300-3000 | Není skladem | 870,04 Kč | ||
| 21 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 22 | RH REAR LOWER FOOTREST ASSY 9CQV-030200-3000 | Skladem | 1 134,16 Kč | ||
| 23 | RH REAR UPPER FOOTREST ASSY 9CQV-030400-3000 | Skladem | 870,04 Kč | ||
| 24 | UPPER LIMIT BRACKET ASSY, ENGINE 9DSV-030060-6000 | Není skladem | 139,83 Kč | ||
| 25 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
