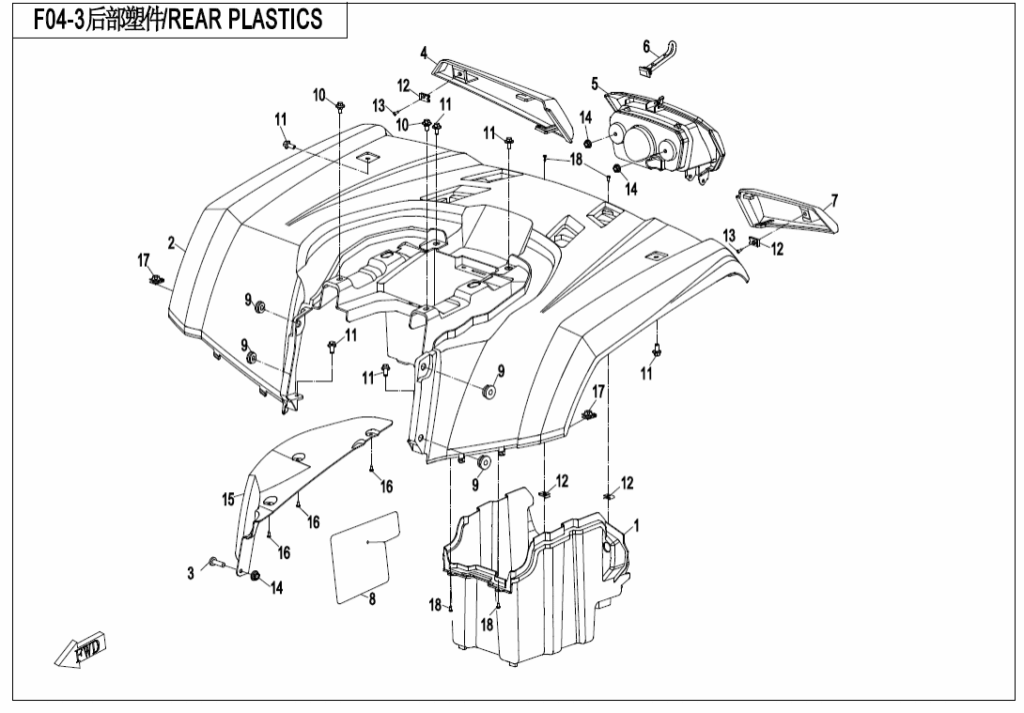

F04-3 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR TAIL BOX 9GQ0-043022 | Skladem | 730,21 Kč | ||
| 02 | REAR FENDER FIRE RED 9GQV-043021-7400-0R400 | Skladem | |||
| 02 | REAR FENDER INJECTED PEARL BLACK 9GQV-043021-7400-0P600 | Skladem | 3 184,96 Kč | ||
| 02 | REAR FENDER LAVA ORANGE 9GQV-043021-7400-0YD00 | Skladem | 7 939,10 Kč | ||
| 02 | REAR FENDER TRUE TIMBER CAMO 9GQV-043021-7400-0RE00 | Skladem | |||
| 03 | SCREW COMP 30112-060012410 | Skladem | |||
| 04 | REAR DECO PANEL,RH 9GQ0-043026 | Skladem | 72,54 Kč | ||
| 05 | PANEL,TAIL LIGHT 9GQ0-043011 | Skladem | 264,12 Kč | ||
| 06 | BAND,FUEL TANK CAP 7020-040315 | Skladem | 58,03 Kč | ||
| 07 | REAR DECO PANEL,LH 9GQ0-043025 | Skladem | 72,54 Kč | ||
| 08 | SMALL HEAT-INSULATED PAPER 9GQ0-043028 | Skladem | 62,15 Kč | ||
| 09 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 10 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 11 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 12 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 13 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
| 14 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 15 | HEAT INSULATOR, REAR FENDER 9GQV-043032-7400 | Skladem | 450,56 Kč | ||
| 16 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 17 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 18 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
