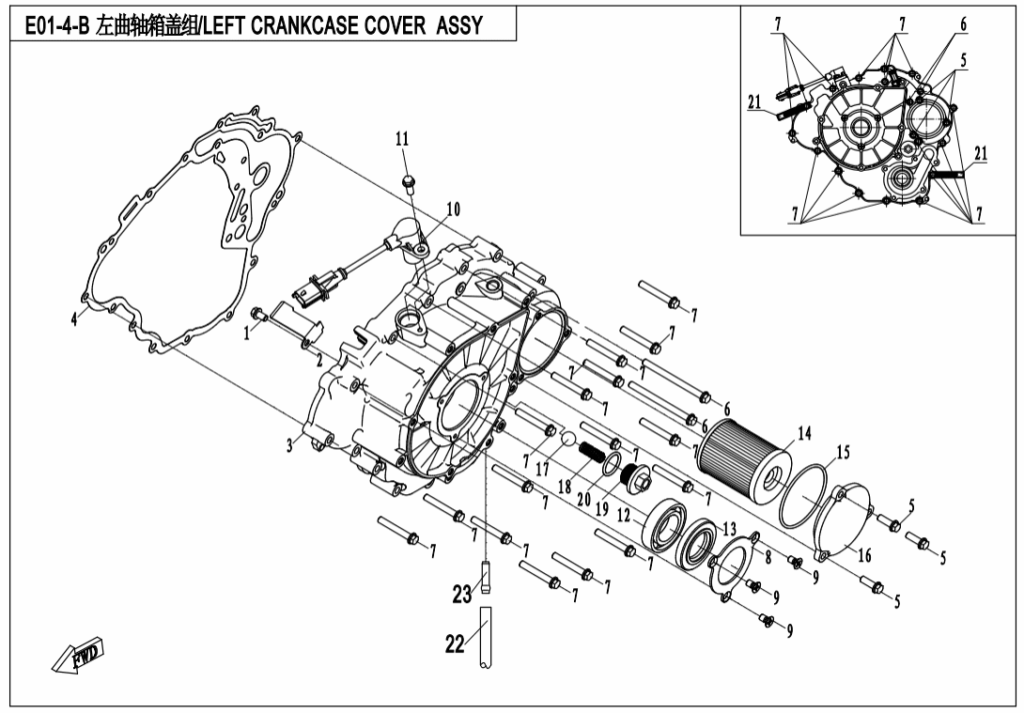

E01-4-B LEFT CRANKCASE COVER ASSY.(WITH RECOIL START,OLD)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6x10 0010-080010-0010 | Skladem | 15,54 Kč | ||
| 02 | PLATE 0GR0-014005 | Skladem | 31,07 Kč | ||
| 03 | COVER, LEFT CRANKCASE 0GR0-014001 | Skladem | 3 542,30 Kč | ||
| 04 | GASKET,LEFT CRANKCASE COVER 0GR0-014002 | Skladem | 145,08 Kč | ||
| 05 | BOLT M6×18 0010-023008-0010 | Skladem | 15,54 Kč | ||
| 06 | BOLT M6×75 0A70-011005 | Skladem | 15,54 Kč | ||
| 07 | BOLT M6x40 0010-013009-0010 | Skladem | 15,54 Kč | ||
| 10 | RPM SENSOR 0800-014100 | Skladem | 450,56 Kč | ||
| 10 | RPM SENSOR 0800-014100-1000 | Skladem | 497,16 Kč | ||
| 11 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 12 | Ložisko 30400-02800 | Skladem | 186,44 Kč | ||
| 14 | OIL FILTER, ENGINE 0800-011300 | Skladem | |||
| 15 | O-SEAL RING 63×2.5 0800-014003 | Skladem | 43,52 Kč | ||
| 16 | FILTER CAP 0800-014002 | Skladem | 188,60 Kč | ||
| 17 | STEEL BALL 3120015 | Skladem | 15,54 Kč | ||
| 18 | SPRING,RELIEF VALVE 0700-012603-1000 | Skladem | 62,15 Kč | ||
| 19 | SCREW PLUG,RELIEF VALVE 0GR0-014003 | Skladem | 93,22 Kč | ||
| 20 | O-SEAL RING 19×2.5 0180-332004 | Skladem | 15,54 Kč | ||
| 21 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 22 | OVERFLOW HOSE 0800-014013 | Skladem | 31,07 Kč | ||
| 23 | PIPE JOINT 01A0-022102 | Skladem | 46,61 Kč | ||
