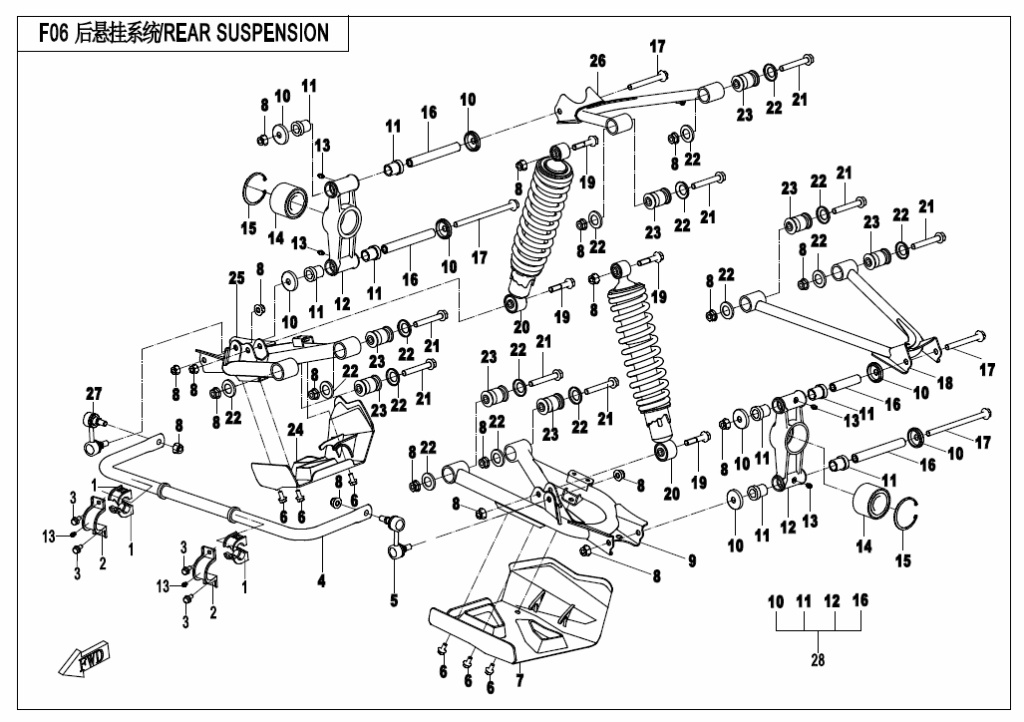

F06-V1 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SUPPORT, STABILIZER BAR 9GQ0-060003 | Skladem | 87,05 Kč | ||
| 02 | COVER, STABILIZER BAR 9GQ0-060601-00001 | Skladem | 62,15 Kč | ||
| 03 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 04 | REAR STABILIZER BAR 9GQ0-060610 | Skladem | 1 258,45 Kč | ||
| 05 | BALL PIN （LH） 9010-060700-1000 | Skladem | 792,36 Kč | ||
| 05 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 06 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 07 | PROTECTION PLATE,REAR SUSPENSION(LH) 9GQ0-044043 | Skladem | 186,44 Kč | ||
| 08 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 09 | REAR LOWER SWING ARM,LH 9GQ0-060210-00001 | Skladem | |||
| 10 | ANTI-DUST CAP 9010-060900 | Skladem | 58,03 Kč | ||
| 11 | BUSH 9010-060004 | Skladem | 93,22 Kč | ||
| 12 | HOLDER，REAR WHEEL AXLE 9010-060001 | Skladem | |||
| 13 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 14 | BEARING,HUB 30499-03080 | Skladem | 683,60 Kč | ||
| 15 | CIRCLIP FOR HOLE 55 30800-05505 | Skladem | 31,07 Kč | ||
| 16 | MIDDLE SPACER 9010-060005 | Skladem | 159,59 Kč | ||
| 17 | Šroub 30006-102100810 | Skladem | 72,54 Kč | ||
| 18 | REAR UPPER SWING ARM,LH 9GQ0-060110 | Skladem | 807,89 Kč | ||
| 19 | Šroub 30006-102055810 | Skladem | 58,03 Kč | ||
| 20 | Zadní tlumič 9GQ0-060500 | Skladem | 2 718,87 Kč | ||
| 21 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 22 | CAP, CUSHION SLEEVE 9010-050003 | Skladem | 31,07 Kč | ||
| 23 | CUSHION SLEEVE 9010-050500 | Skladem | 116,06 Kč | ||
| 24 | PROTECTION PLATE,REAR SUSPENSION(RH) 9GQ0-044044 | Skladem | 186,44 Kč | ||
| 25 | REAR LOWER SWING ARM,RH 9GQ0-060410-00001 | Skladem | |||
| 26 | REAR UPPER SWING ARM,RH 9GQ0-060310 | Skladem | 636,99 Kč | ||
| 27 | BALL PIN （RH） 9010-060800-1000 | Skladem | 792,36 Kč | ||
| 27 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 28 | HOLDER UNIT. REAR WHEEL SHAFT 9010-0600A0 | Skladem | 1 848,83 Kč | ||
