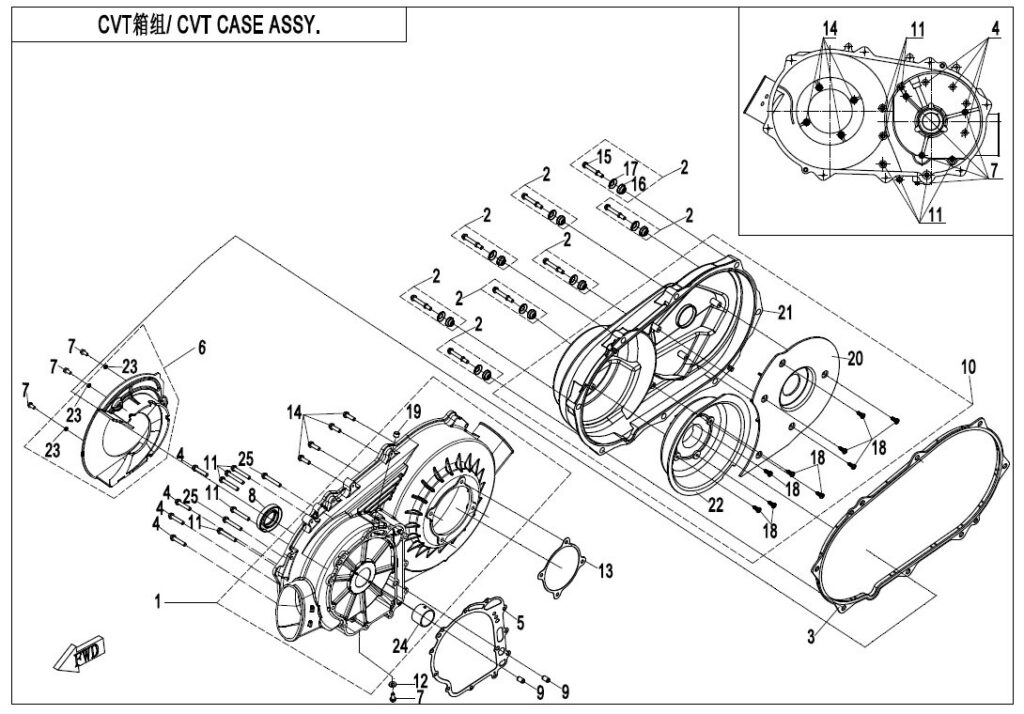

E01-3 CVT CASE ASSY.
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | CVT CASE ASSY 0GS0-013100-10010 | Skladem | 3 728,74 Kč | ||
| 01 | CVT CASE ASSY 0GS0-013100-10020 | Není skladem | 1 382,74 Kč | ||
| 02 | BOLT ASSY. CYLINDER HEAD COVER 0800-021100-10000 | Skladem | 79,80 Kč | ||
| 03 | SEAL RING ,’CVT COVER 0GR0-013003 | Skladem | 233,05 Kč | ||
| 04 | BOLT M6x22 0010-022020-00001 | 4 | |||
| 05 | STEEL GASKET, CVT CASE 0GR0-013001-20000 | Skladem | 155,36 Kč | ||
| 06 | AIR DEFLECTOR 0GS0-013010 | Skladem | 295,19 Kč | ||
| 07 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
| 08 | OIL SEAL 32X55X10 0JY0-013103 | Skladem | 174,09 Kč | ||
| 09 | DOWEL PIN φ8×14 0010-080008 | Skladem | 15,54 Kč | ||
| 10 | COVER, CVT CASE 0GR0-013300-20000 | Skladem | 2 641,19 Kč | ||
| 11 | BOLT M6x40 0010-013009-0010 | Skladem | 15,54 Kč | ||
| 12 | WASHER 6 0010-060009 | Skladem | 31,07 Kč | ||
| 13 | GASKET 2, CVT CASE 0800-012002-10000 | Skladem | 101,64 Kč | ||
| 13 | GASKET(2), CVT CASE 0800-012002 | Skladem | 72,54 Kč | ||
| 14 | BOLT M6x20 0010-023010-0010 | Skladem | 15,54 Kč | ||
| 15 | BOLT, CYLINDER HEAD COVER 0800-021101-10001 | Skladem | 58,03 Kč | ||
| 16 | RUBBER WASHER 0800-021102-10000 | Skladem | 31,07 Kč | ||
| 17 | CAP, RUBBER WASHER 0800-021103 | Skladem | 15,54 Kč | ||
| 18 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 19 | Šroub (vrut) 01A0-012010-00001 | Skladem | 15,54 Kč | ||
| 20 | REAR HEAT INSULATION COVER 0GR0-013302 | Skladem | 372,87 Kč | ||
| 21 | COVER, CVT CASE 0GR0-013002-20000 | Skladem | 1 895,44 Kč | ||
| 21 | CVT CASE COVER 0GR0-013002-20001 | Není skladem | 2 765,48 Kč | ||
| 22 | FRONT HEAT INSULATION GUARD 0GR0-013301-20000 | Skladem | 363,00 Kč | ||
| 23 | Pouzdro 0GR0-013012 | Není skladem | 46,61 Kč | ||
| 24 | PLAIN BEARING, CVT BLUE 0JY0-013102-00021 | Není skladem | 233,05 Kč | ||
| 24 | PLAIN BEARING, CVT RED RED 0JY0-013102-00011 | Skladem | 261,36 Kč | ||
| 25 | BOLT M6×32 0010-080012-0010 | Skladem | 15,54 Kč | ||
