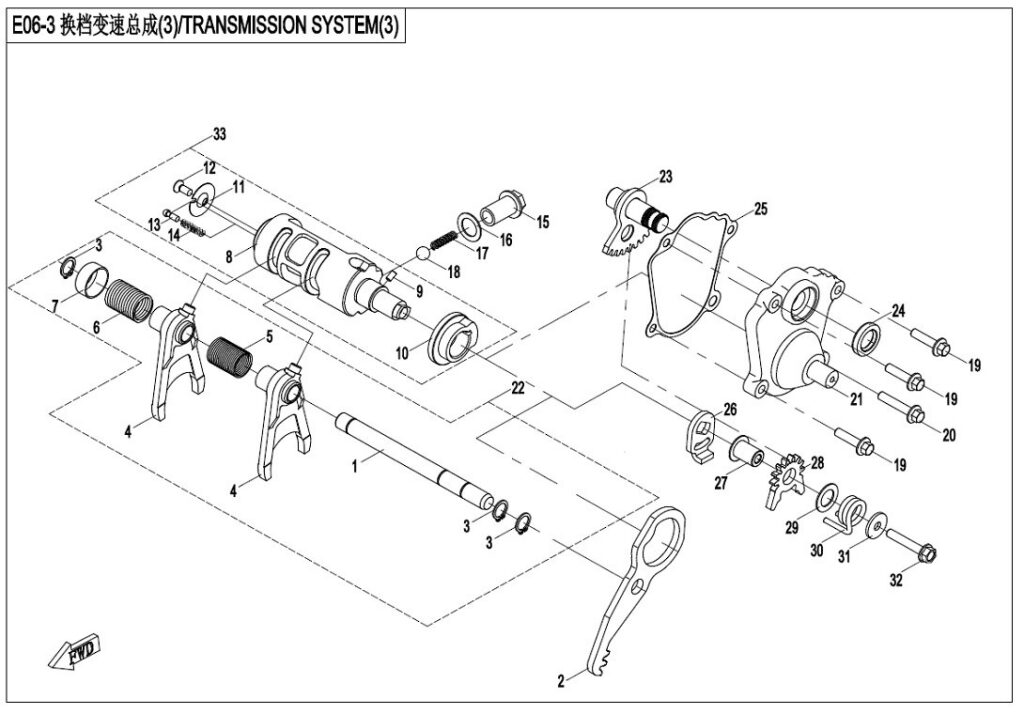

E06-3 TRANSMISSION SYSTEM(3)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SHAFT, SHIFT FORK 0800-063002 | Skladem | 233,05 Kč | ||
| 02 | SWING ARM, PARKING 0GR0-063002-00001 | Skladem | 155,36 Kč | ||
| 02 | SWING ARM,PARKING 0GR0-063002 | Skladem | 232,13 Kč | ||
| 03 | CIRCLIPS FOR SHAFT12 30801-01205 | Skladem | 15,54 Kč | ||
| 04 | SHIFT FORK 0GR0-063001 | Skladem | 279,66 Kč | ||
| 05 | FORK SPRING, THIN 0180-063003-0050 | Skladem | 15,54 Kč | ||
| 06 | FORK SPRING, THICK 0180-063005-0050 | Skladem | 15,54 Kč | ||
| 07 | SPRING SEAT 0180-063006-0010 | Skladem | 31,07 Kč | ||
| 08 | SHIFT DRUM 0GR0-064001 | Skladem | 792,36 Kč | ||
| 09 | PIN SHAFT 0800-064002 | Skladem | 31,07 Kč | ||
| 10 | CAM,PARKING 0GR0-064002 | Skladem | 116,06 Kč | ||
| 11 | LIMIT GASKET 0180-064001-0010 | Skladem | 15,54 Kč | ||
| 12 | LOCK SCREW T25 0180-064002-00001 | Skladem | 15,54 Kč | ||
| 13 | GEAR CONTACTOR 0180-064003-0050 | Skladem | 15,54 Kč | ||
| 14 | SPRING,GEAR CONTACTOR 0180-064004-0050 | Skladem | 15,54 Kč | ||
| 15 | HOLLOW BOLT M14*1.5 0180-068001-00100 | Skladem | 46,61 Kč | ||
| 16 | GASKET 14.4×22×1 0180-068002 | Skladem | 15,54 Kč | ||
| 17 | SPRING, LIMIT 0180-068003-0050 | Skladem | 15,54 Kč | ||
| 18 | STEEL BALL3/8 3120003 | Skladem | 15,54 Kč | ||
| 19 | BOLT M6x25 0010-021017-0010 | Skladem | 15,54 Kč | ||
| 20 | BOLT M6×32 0010-080012-0010 | Skladem | 15,54 Kč | ||
| 21 | GEARSHIFT COVER 0800-065001-20000 | Skladem | 333,68 Kč | ||
| 22 | SHIFT FORK COMP. 0GR0-0630A0 | Skladem | 885,57 Kč | ||
| 23 | DRIVE SECTOR GEAR 0180-065100-10002 | Skladem | 170,90 Kč | ||
| 23 | SHIFT DRIVE SECTOR GEAR 0180-065100-10001 | Skladem | 186,44 Kč | ||
| 24 | OIL SEAL SD15×25×5 0180-065002 | Skladem | 43,52 Kč | ||
| 25 | METAL GASKET, SECTOR GEAR 0GR0-065003 | Skladem | 62,15 Kč | ||
| 26 | WASHER, DRIVEN SECTOR GEAR 0180-065201-0010 | Skladem | 43,52 Kč | ||
| 27 | SHAFT, DRIVEN SECTOR GEAR 0180-065202-0050 | Skladem | 72,54 Kč | ||
| 28 | DRIVEN SECTOR GEAR 0180-065203 | Skladem | 77,68 Kč | ||
| 29 | GASKET 13.5×22×1 0180-065204-0050 | Skladem | 15,54 Kč | ||
| 30 | TORSION SPRING,DRIVEN SECTOR GEAR 0180-065205-0010 | Skladem | 87,05 Kč | ||
| 31 | WASHER 6.2x22x2 0180-065206-00001 | Skladem | 15,54 Kč | ||
| 32 | BOLT M6×35 0010-013008-0010 | Skladem | 15,54 Kč | ||
| 33 | SHIFT DRUM COMP. 0GR0-064000 | Skladem | 994,33 Kč | ||
