Zadní

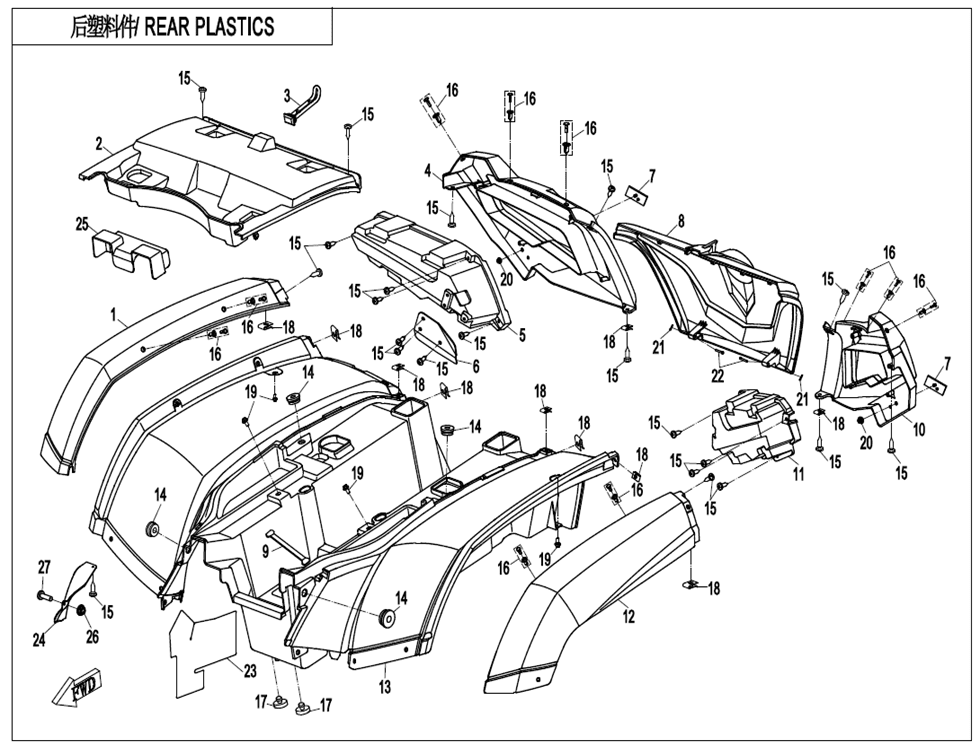

| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR EDGING, RH 9CR6-043032 | Skladem | 310,73 Kč | ||
| 02 | REAR TOP COVER 9CR6-043022 | Skladem | 450,56 Kč | ||
| 03 | TIE-BAND, TRUNK 9CR6-043025-00001 | Není skladem | |||
| 04 | PANEL, TAIL LIGHT(RH) 9CR6-043012 | Skladem | 295,19 Kč | ||
| 05 | GUARD, RIGHT TAIL LIGHT 9CR6-043015 | Skladem | 201,97 Kč | ||
| 06 | HEAT INSULATION PLATE，TIAL LIGHT COVER 9CR6-043016 | Skladem | 174,09 Kč | ||
| 07 | REAR REFLECTOR RECTANGLE, RED 5190-160230 | Skladem | 72,60 Kč | ||
| 08 | REAR TRUNK COVER 9CR6-043024 | Skladem | 357,34 Kč | ||
| 09 | BRACKET, TIE BAND 9CR6-044030 | Skladem | 174,09 Kč | ||
| 10 | PANEL,LHTAILLIGHT 9CR6-043011 | Skladem | 295,19 Kč | ||
| 11 | GUARD, LEFT TAIL LIGHT 9CR6-043014 | Skladem | 201,97 Kč | ||
| 12 | REAR EDGING(LH) 9CR6-043031 | Skladem | 310,73 Kč | ||
| 13 | REAR FENDER 9CR6-043021-3E900 | Není skladem | |||
| 13 | REAR FENDER BRIGHT YELLOW 9CR6-043021-3Y500 | Není skladem | |||
| 13 | REAR FENDER CRYSTAL ORANGE 9CR6-043021-3Y600 | Skladem | 8 731,46 Kč | ||
| 13 | REAR FENDER FIRE RED 9CR6-043021-3R400 | Není skladem | |||
| 13 | REAR FENDER INJECTED PEARL BLACK 9CR6-043021-3P600 | Není skladem | |||
| 13 | REAR FENDER INJECTED PEARL BLUE 9CR6-043021-3P500 | Není skladem | |||
| 13 | REAR FENDER METAL BLUE 9CR6-043021-3E400 | Není skladem | |||
| 13 | REAR FENDER NEBULA BLACK 9CR6-043021-3BM00 | Skladem | 8 731,46 Kč | ||
| 13 | REAR FENDER NEW MAPLE CAMO 9CR6-043021-3W000 | Není skladem | |||
| 13 | REAR FENDER PAINTED ULTRA SILVER 9CR6-043021-3VF00 | Skladem | 8 731,46 Kč | ||
| 13 | REAR FENDER ROYAL BLUE 9CR6-043021-3EC00 | Není skladem | |||
| 13 | REAR FENDER TITANIUM GRAY 9CR6-043021-3B500 | Není skladem | |||
| 13 | REAR FENDER TRUE TIMBER CAMO 9CR6-043021-3RE00 | Skladem | 11 046,38 Kč | ||
| 14 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 15 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
| 16 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 17 | CUSHION RUBBER WAHSER 8030-130211 | Skladem | 31,07 Kč | ||
| 18 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 19 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 20 | Matice 30204-050810 | Skladem | 15,54 Kč | ||
| 21 | COTTER PIN 30903-0160810 | Není skladem | |||
| 22 | PIN SHAFT 30904-0403010 | Skladem | 15,54 Kč | ||
| 23 | HEAT INSULATOR(BIG)，REARFENDER 9CR6-043023 | Skladem | 87,05 Kč | ||
| 24 | HEAT INSULATOR,REAR FENDER 9CR6-043028 | Skladem | 435,02 Kč | ||
| 25 | BATTERY COVER 9CR6-043027 | Skladem | 101,56 Kč | ||
| 26 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 27 | SCREW COMP 30112-060012410 | Není skladem | |||
