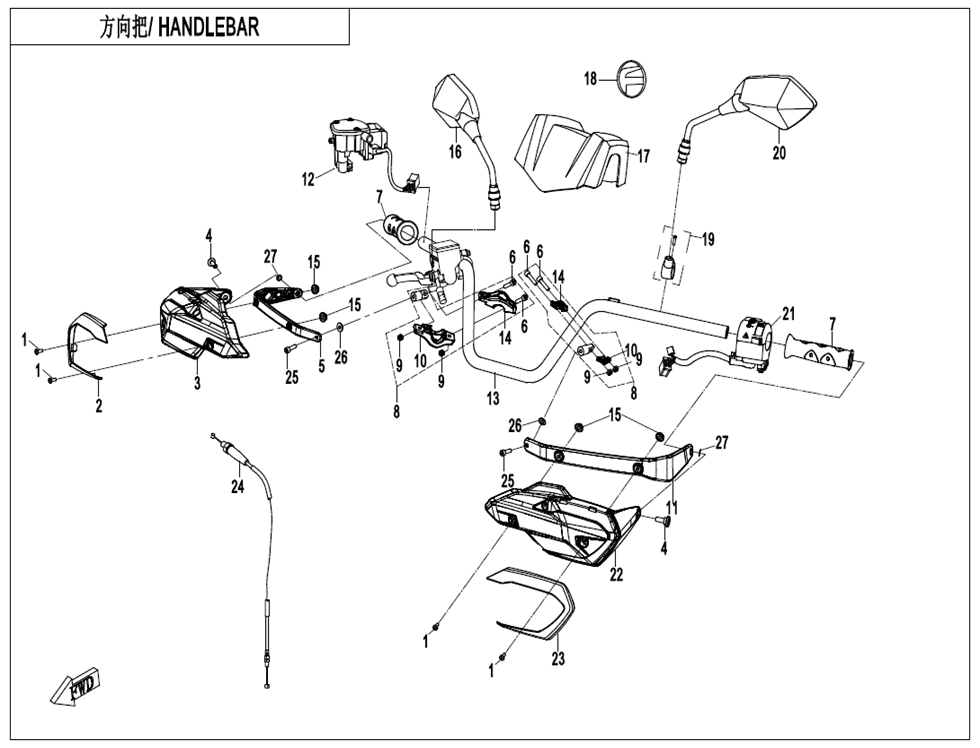

Řídítka
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6x16 A010-120003 | Skladem | 31,07 Kč | ||
| 02 | DECO PLATE, HAND GUARD(RH) CORAL BLUE 9AWA-101302-0E800 | Skladem | 124,29 Kč | ||
| 02 | DECO PLATE, HAND GUARD(RH), CRYSTAL ORANGE 9AWA-101302-0Y600 | Skladem | 124,29 Kč | ||
| 02 | DECO PLATE, HAND GUARD(RH), NEBULA BLACK 9AWA-101302-0BM00 | Skladem | 124,29 Kč | ||
| 02 | DECO PLATE, HAND GUARD(RH), PEARL BLACK 9AWA-101302-0B300 | Skladem | 124,29 Kč | ||
| 02 | DECO PLATE, HAND GUARD(RH), TRUE TIMBER CAMO 9AWA-101302-0RE00 | Skladem | 507,78 Kč | ||
| 02 | DECO PLATE, HAND GUARD(RH), ULTRA SILVER 9AWA-101302-0VF00 | Skladem | 217,51 Kč | ||
| 03 | HAND GUARD, RH 9AWA-101301-10000 | Skladem | 186,44 Kč | ||
| 04 | Šroub (vrut) A000-080001 | Skladem | 43,52 Kč | ||
| 05 | HANDGUARD LEVER, RH 9AWA-101303-10000 | Skladem | 186,44 Kč | ||
| 06 | SCREW M6x22 30102-060022810 | Skladem | 15,54 Kč | ||
| 06 | SCREW M6x25 30102-060025700 | Není skladem | |||
| 07 | HAND GRIP, LH 8060-100001 | Skladem | 246,63 Kč | ||
| 08 | BRACKET ASSY 9AWA-101230-10000 | Skladem | 124,29 Kč | ||
| 09 | NUT M6 30224-060800 | Skladem | 77,68 Kč | ||
| 09 | NUT M6 30224-060810 | Skladem | 15,54 Kč | ||
| 10 | PRESS COVER ，BRACKET 9CR6-101204-10000 | Skladem | 58,03 Kč | ||
| 11 | HANDGUARD LEVER, LH 9AWA-101203-20000 | Skladem | 186,44 Kč | ||
| 12 | HANDLEBAR SWITCH ASSY, RH 9AW2-160700-00001 | Skladem | 1 351,67 Kč | ||
| 12 | HANDLEBAR SWITCH ASSY, RH 9AW2-160700-00002 | Skladem | 1 351,67 Kč | ||
| 13 | HANDLEBAR ASSY. 9CR6-101100 | Skladem | 1 118,62 Kč | ||
| 14 | SEAT, BRACKET 9CR6-101202-10000 | Skladem | 58,08 Kč | ||
| 15 | CAP-SHAPE BOLT M6 30212-060810 | Skladem | 31,07 Kč | ||
| 16 | REAR VIEW MIRROR,RH 7020-200300 | Skladem | 264,12 Kč | ||
| 17 | TOP COVER,HANDLEBAR 9CR6-101001 | Skladem | 108,75 Kč | ||
| 18 | CFMOTO LOGO 9CR6-190001 | Skladem | 155,36 Kč | ||
| 19 | MOUNTING SEAT,REAR VIEW MIRROR 9CR6-080400 | Skladem | 139,83 Kč | ||
| 20 | REAR VIEW MIRROR,LH 7020-200200 | Skladem | 264,12 Kč | ||
| 21 | HANDLEBAR SWITCHES ASSY, LH 9GQS-160600 | Skladem | 1 334,73 Kč | ||
| 21 | LH HANDLEBAR SWITCH ASSY 9CS0-160600-40000 | Skladem | 1 196,30 Kč | ||
| 22 | HAND GUARD, LH 9AWA-101201-10000 | Skladem | 186,44 Kč | ||
| 23 | DECO PLATE, HAND GUARD(LH) CORAL BLUE 9AWA-101202-0E800 | Skladem | 124,29 Kč | ||
| 23 | DECO PLATE, HAND GUARD(LH), CRYSTAL ORANGE 9AWA-101202-0Y600 | Skladem | 124,29 Kč | ||
| 23 | DECO PLATE, HAND GUARD(LH), NEBULA BLACK 9AWA-101202-0BM00 | Skladem | 124,29 Kč | ||
| 23 | DECO PLATE, HAND GUARD(LH), PEARL BLACK 9AWA-101202-0B300 | Skladem | 124,29 Kč | ||
| 23 | DECO PLATE, HAND GUARD(LH), TRUE TIMBER CAMO 9AWA-101202-0RE00 | Skladem | 507,78 Kč | ||
| 23 | DECO PLATE, HAND GUARD(LH), ULTRA SILVER 9AWA-101202-0VF00 | Skladem | 217,51 Kč | ||
| 24 | THROTTLE CABLE 9CR6-105000 | Skladem | 232,13 Kč | ||
| 25 | INNER HEX SCREW M6x20 A000-040703 | Skladem | 31,07 Kč | ||
| 26 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 27 | Podložka 30305-080112 | Skladem | 15,54 Kč | ||
