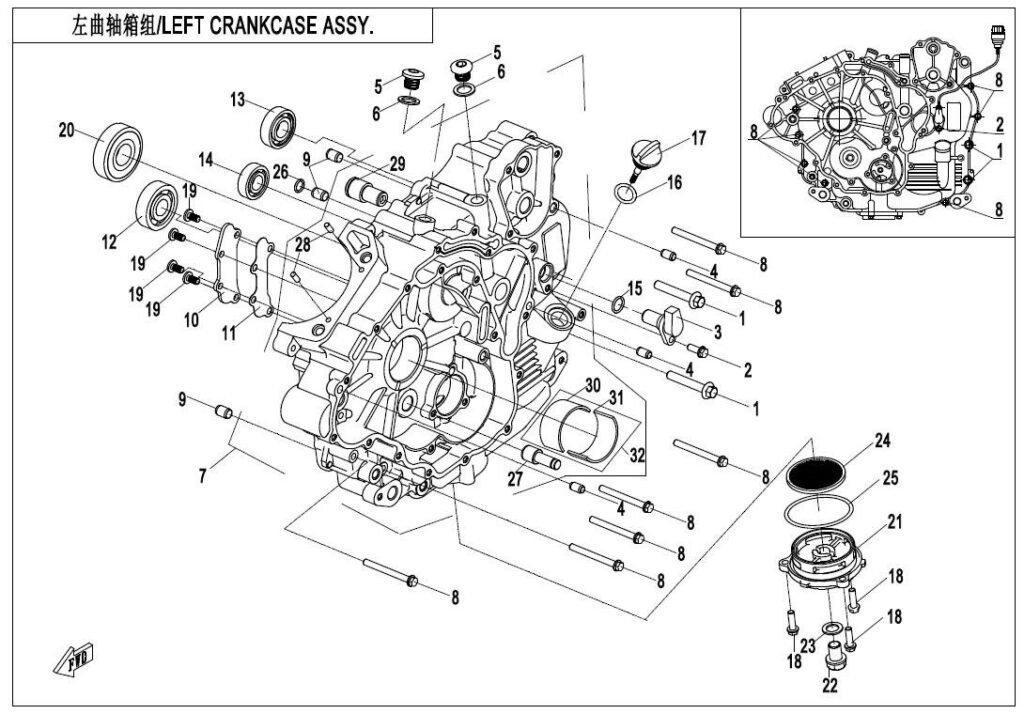

LEFT CRANKCASE ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M8×50 0040-012006-0010 | Skladem | 43,52 Kč | ||
| 02 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 03 | SPEED SENSOR 0GR0-011020 | Skladem | 838,97 Kč | ||
| 04 | DOWEL PIN φ8×14 0010-080008 | Skladem | 15,54 Kč | ||
| 05 | BOLT M14*1.5*12 0GR0-011003 | Skladem | 46,61 Kč | ||
| 06 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 07 | LEFT CRANKCASE COMP. 0GR0-011100 | Skladem | 7 239,96 Kč | ||
| 08 | BOLT M6×60 0010-011017-0010 | Skladem | 15,54 Kč | ||
| 09 | DOWEL PIN φ10×14 0010-021005 | Skladem | 15,54 Kč | ||
| 10 | OIL RAIL COVER PLATE 0GR0-011002 | Skladem | 93,22 Kč | ||
| 11 | PAPER WASHER, OIL RAIL 0GR0-011004 | Skladem | 15,54 Kč | ||
| 12 | Ložisko 30499-01700 | Skladem | 357,34 Kč | ||
| 13 | BEARING 6203 30400-01704 | Skladem | 310,73 Kč | ||
| 14 | Ložisko 30499-01500 | Skladem | 203,11 Kč | ||
| 15 | O-SEAL RING 13×2 01A0-013005 | Skladem | 15,54 Kč | ||
| 16 | O-SEAL RING 18×3.55 0110-013030 | Skladem | 15,54 Kč | ||
| 17 | DIPSTICK, ENGINE OIL 0GR0-011005 | Skladem | 72,54 Kč | ||
| 18 | BOLT M6x20 0010-023010-0010 | Skladem | 15,54 Kč | ||
| 19 | Šroub (vrut) 30105-060012410 | Skladem | 15,54 Kč | ||
| 20 | Ložisko 30400-02201 | Skladem | 295,19 Kč | ||
| 21 | PLATE,OIL STRAINER 0GR0-011001 | Skladem | 233,05 Kč | ||
| 22 | BOLT PLUG, OIL DRAIN M12×1.5×15 0110-013005-0010 | Skladem | 31,07 Kč | ||
| 23 | WASHER 12 0010-021014 | Skladem | 29,02 Kč | ||
| 24 | OIL STRAINER 0GR0-011010 | Skladem | 145,08 Kč | ||
| 25 | O-SEAL RING 63×2.5 0800-014003 | Skladem | 43,52 Kč | ||
| 26 | O-Kroužek 30502-010000N | Skladem | 15,54 Kč | ||
| 27 | DUAL GEAR SHAFT,OIL PUMP 0GR0-011102 | Skladem | 93,22 Kč | ||
| 28 | ROLLER NEEDLE P5×11.8 30406-00500 | Skladem | 15,54 Kč | ||
| 29 | INTERMEDIATE GEAR SHAFT, REVERSE 0GR0-011103 | Skladem | 188,76 Kč | ||
| 30 | PLAIN BEARING 1 THICK 0800-011102-0002 | Skladem | 217,51 Kč | ||
| 30 | PLAIN BEARING 1 THIN 0800-011102-0001 | Skladem | 217,51 Kč | ||
| 31 | PLAIN BEARING 2 THICK 0800-011103-0002 | Skladem | 217,51 Kč | ||
| 31 | PLAIN BEARING 2 THIN 0800-011103-0001 | Skladem | 217,51 Kč | ||
| 32 | MAIN PLAIN BEARING ASSY 0800-0111A0 | Skladem | 449,74 Kč | ||
| 32 | MAIN PLAIN BEARING ASSY 0800-0111B0 | Skladem | 449,74 Kč | ||
