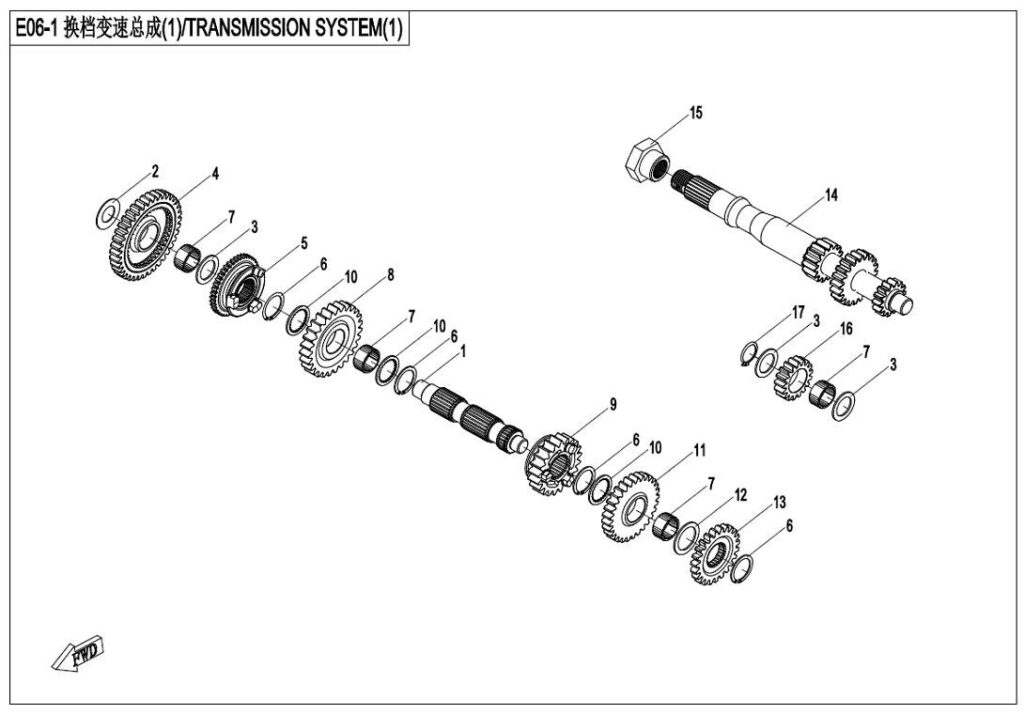

TRANSMISSION SYSTEM(1)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SECONDARY SHAFT, DRIVE 0GR0-061001 | Skladem | 978,79 Kč | ||
| 02 | WASHER 17.5×32×1 0800-061002 | Skladem | 31,07 Kč | ||
| 03 | GASKET 20.5x30x1.5 0180-061012 | Skladem | 31,07 Kč | ||
| 04 | DRIVEN GEAR, LOW RANGE 0GR0-061200 | Skladem | 2 031,11 Kč | ||
| 05 | SLIDE GEAR 0GR0-061006-10000 | Skladem | 870,04 Kč | ||
| 06 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 07 | NEEDLE BEARING 20X25X12 0GR0-060100 | Skladem | 101,56 Kč | ||
| 08 | GEAR,HIGHRANGE 0GR0-061005 | Skladem | 978,79 Kč | ||
| 09 | DRIVE GEAR,COUNTER 0GR0-061004 | Skladem | 972,03 Kč | ||
| 09 | OUTPUT DRIVE GEAR 0GR0-061004-00001 | Skladem | 901,11 Kč | ||
| 10 | Podložka 0GR0-061008 | Skladem | 43,52 Kč | ||
| 11 | GEAR,REVERSE 0GR0-061003 | Skladem | 972,03 Kč | ||
| 12 | WASHER 25×34×1.5 0GR0-061009-00001 | Skladem | 46,61 Kč | ||
| 13 | GEAR,PARKING 0GR0-061002 | Skladem | 536,79 Kč | ||
| 14 | MAIN SHAFT 0GR0-060001 | Skladem | 3 651,05 Kč | ||
| 15 | NUT, MAIN DRIVE SHAFT 0JY0-060001-00001 | Skladem | 130,57 Kč | ||
| 16 | INTERMEDIATE GEARSHAFT,REVERSE 0GR0-060002 | Skladem | 449,74 Kč | ||
| 17 | CIRCLIPS FOR SHAFT20 30801-02005 | Skladem | 15,54 Kč | ||
