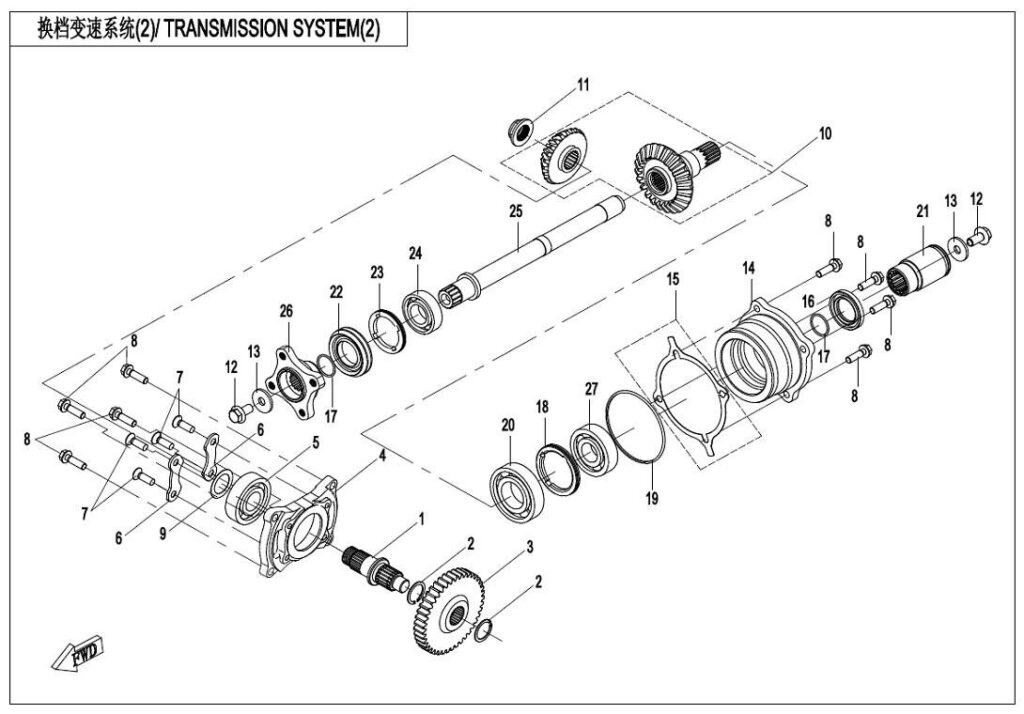

TRANSMISSION SYSTEM(2)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | DRIVE BEVEL GEAR SHAFT 0180-062101 | Skladem | 854,50 Kč | ||
| 02 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 03 | OUTPUT DRIVEN GEAR 0180-062102-00001 | Skladem | 1 802,22 Kč | ||
| 04 | BEARING SEAT,DRIVE BEVEL GEAR 0180-062103-10000 | Skladem | 574,85 Kč | ||
| 05 | Ložisko 30499-02501 | Skladem | 636,99 Kč | ||
| 06 | LIMITATOR, BEARING 0180-062104-0010 | Skladem | 46,61 Kč | ||
| 07 | SCREW M8X25 30124-080025810 | Skladem | 15,54 Kč | ||
| 08 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 09 | ADJUST GASKET, DRIVE BEVEL GEAR 0180-062105-0002 | Skladem | 31,07 Kč | ||
| 09 | ADJUST GASKET, DRIVE BEVEL GEAR 0180-062105-0001 | Skladem | 31,07 Kč | ||
| 09 | ADJUST GASKET, DRIVE BEVEL GEAR 0180-062105 | Skladem | 31,07 Kč | ||
| 09 | ADJUSTING WASHER, DRIVE SHAFT GEAR 0180-062105-0004 | Skladem | 31,07 Kč | ||
| 09 | ADJUSTING WASHER, DRIVE SHAFT GEAR 0180-062105-0003 | Skladem | 31,07 Kč | ||
| 10 | BEVEL GEAR ASSY 0GR0-0622A0-10001 | Skladem | 3 371,40 Kč | ||
| 11 | LOCK NUT, BEVEL GEAR 0180-062107-00001 | Skladem | 62,15 Kč | ||
| 12 | BOLT M10×1.25×30 0JWA-060002 | Skladem | 62,15 Kč | ||
| 13 | WASHER 10×27.5×4 0GR0-062204 | Skladem | 43,52 Kč | ||
| 14 | BEARING HOUSING, DRIVEN BEVEL GEAR 0800-062202-1000 | Skladem | 943,01 Kč | ||
| 15 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0004 | Skladem | 31,07 Kč | ||
| 15 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0003 | Skladem | 31,07 Kč | ||
| 15 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0002 | Skladem | 31,07 Kč | ||
| 15 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0001 | Skladem | 31,07 Kč | ||
| 15 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203 | Skladem | 43,52 Kč | ||
| 16 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 17 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 18 | STOPPER NUT, BEARING 0800-062206 | Skladem | 124,29 Kč | ||
| 19 | O-SEAL RING 88×2.5 0180-062205 | Skladem | 116,06 Kč | ||
| 20 | Ložisko 30400-03500 | Skladem | 264,12 Kč | ||
| 21 | DRIVE SLEEVE,ENGINE 9CR6-300201-10000 | Skladem | 714,67 Kč | ||
| 22 | OIL SEAL 35*61*9（14） 0JWA-062302 | Skladem | 372,87 Kč | ||
| 23 | BEARING RETAINER, FRONT OUTPUT SHAFT 0180-060008 | Skladem | 155,36 Kč | ||
| 24 | Ložisko 30400-02501 | Skladem | 155,36 Kč | ||
| 25 | FRONT OUTPUT SHAFT 0GR0-062301-10001 | Skladem | 1 165,23 Kč | ||
| 26 | COUPLER 0GR0-060003 | Skladem | 823,43 Kč | ||
| 27 | BEARING 16017/C2 30400-02502 | Skladem | 290,16 Kč | ||
