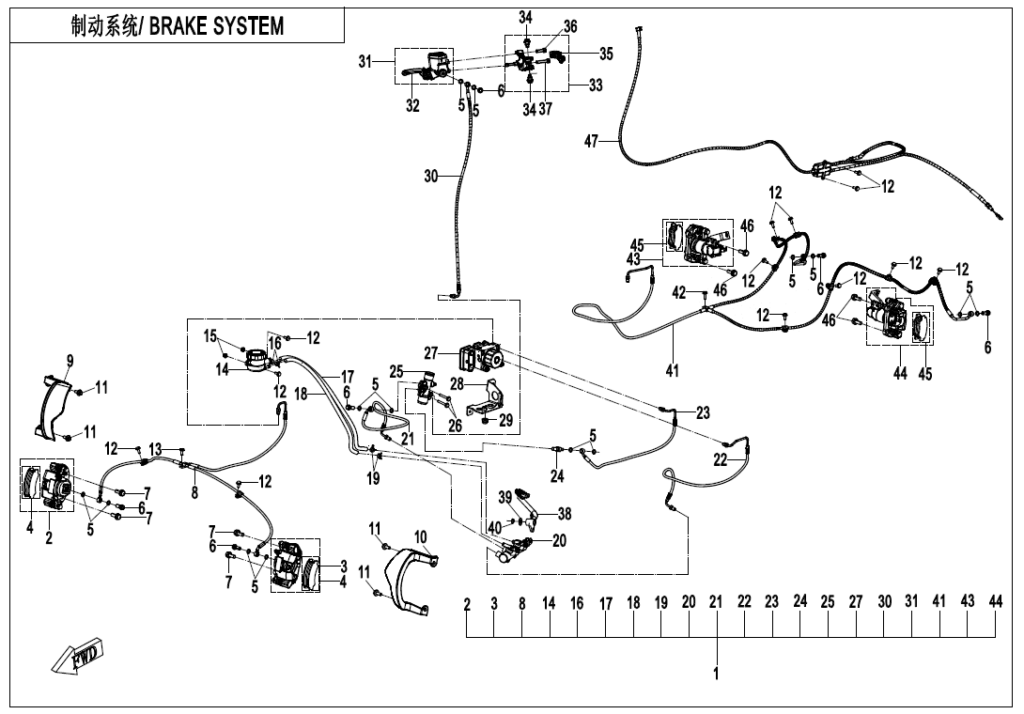

F08-B BRAKE SYSTEM(ABS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | ABS HYDRAULIC BRAKE ASSY 9CSV-082000-B700 | Skladem | |||
| 2 | FRONT BRAKE CALIPER, RH 9DSV-081200-A200 | Skladem | 3 635,52 Kč | ||
| 3 | FRONT BRAKE CALIPER, LH 9DSV-081100-A200 | Skladem | 3 635,52 Kč | ||
| 4 | FRONT BRAKE PAD ASSY 5ASV-0811A0 | Skladem | |||
| 5 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 6 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 7 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 8 | ABS FRONT BRAKE OUTLET PIPE ASSY 9CSV-082400-B700 | Skladem | |||
| 9 | GUARD, FRONT RH CV JOINT 9DS#-080002-6001 | Skladem | 87,05 Kč | ||
| 10 | GUARD, FRONT LH CV JOINT 9DS#-080001-6001 | Skladem | 87,05 Kč | ||
| 11 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 12 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 13 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 14 | FLUID RESERVOIR 9DSV-081010-7201 | Skladem | |||
| 15 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 16 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 17 | HOSE 1,FLUID RESERVOIR 9CR6-081001 | Skladem | 93,22 Kč | ||
| 18 | HOSE 2,FLUID RESERVOIR 9CR6-081002 | Skladem | 77,68 Kč | ||
| 19 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 20 | MASTER CYLINDER ASSY 9CSV-081C00-B700 | Skladem | |||
| 21 | FOOT BRAKE MASTER CYLINDER PIPE ASSY 9CSV-081J00-B700 | Skladem | |||
| 22 | ABS REAR BRAKE INLET PIPE ASSY 9CSV-082300-B700 | Skladem | |||
| 23 | ABS FRONT BRAKE INLET PIPE ASSY 9CSV-082200-B700 | Skladem | |||
| 24 | HYDRAULIC SENSOR SWITCHASSY 5HYV-080010-6000 | Skladem | 947,72 Kč | ||
| 25 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 26 | BOLT M6x45 30006-060045810 | Skladem | 15,54 Kč | ||
| 27 | ABS CONTROLLER 9CSV-082100-B700 | Skladem | |||
| 28 | ABS CONTROLLER BRACKET 9CSV-080010-B700 | Skladem | |||
| 29 | DAMPING RUBBER SLEEVE, MSC CONTROLLER 6L30-080008 | Skladem | 62,15 Kč | ||
| 30 | BRAKE FLUID HOSE, LH HAND BRAKE 9AY0-081010 | Skladem | 1 072,01 Kč | ||
| 31 | RH HAND BRAKE MASTER CYLINDER ASSY 9CSV-081B00-B700 | Skladem | |||
| 32 | Brzdová páčka 9AY0-081225 | Skladem | 357,34 Kč | ||
| 33 | RH PARKING HANDLE 9DSV-080260-6H03 | Skladem | 1 351,67 Kč | ||
| 34 | PIN, PARKING BRAKE LEVER 9DSV-080260-6H03-23 | Skladem | 46,61 Kč | ||
| 35 | PARKING HANDLE 9DSV-080260-6H02-20 | Není skladem | 1 152,42 Kč | ||
| 36 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 37 | INNER HEX SCREW 30102-060030870 | Není skladem | |||
| 38 | PEDAL, BRAKE 9CRB-080100 | Skladem | 348,19 Kč | ||
| 39 | Podložka 30306-140112 | Skladem | 15,54 Kč | ||
| 40 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 41 | ABS REAR BRAKE OUTLET PIPE ASSY 9CSV-082500-B700 | Skladem | |||
| 42 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 43 | REAR RH BRAKE CALIPER ASSY 9DSV-081060-B000 | Skladem | 5 950,44 Kč | ||
| 44 | REAR LH BRAKE CALIPER ASSY 9DSV-081050-B000 | Skladem | 5 950,44 Kč | ||
| 45 | REAR BRAKE PAD ASSY 5ASV-0813A0 | Skladem | 1 227,38 Kč | ||
| 46 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 47 | REAR PARKING CABLE 9CSV-083100-7200 | Skladem | 1 367,20 Kč | ||
