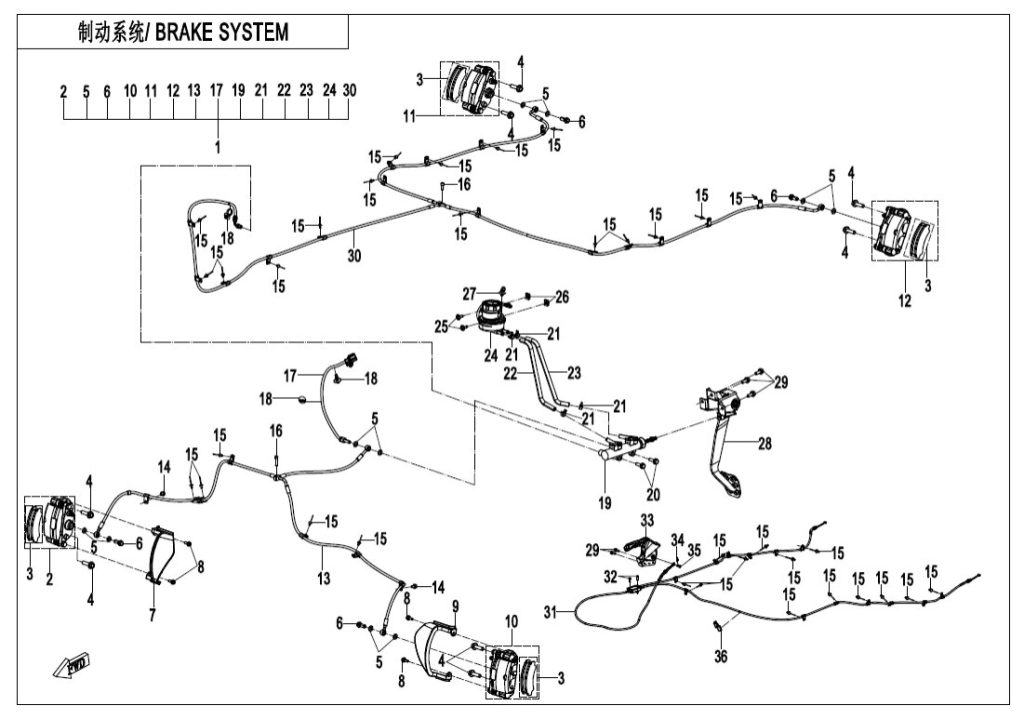

F08-V1 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HYDRAULIC BRAKE ASSY 5DYV-081000-1200-0RM00 | Skladem | |||
| 2 | FRONT BRAKE CALIPER, RH 5GYV-081400-1000 | Skladem | 6 401,00 Kč | ||
| 3 | FRONT BRAKE PAD ASSY SH-5GYV-0813A0 | Skladem | 2 206,17 Kč | ||
| 4 | Šroub 30006-102035810 | Skladem | 31,07 Kč | ||
| 5 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 6 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 7 | FRONT RH BRAKE CALIPER GUARD 5GYV-081200-1001 | Skladem | 93,22 Kč | ||
| 8 | COLLAR BOLT M6×12 9DQV-080004-1100 | Skladem | 15,54 Kč | ||
| 9 | FRONT LH BRAKE CALIPER GUARD 5GYV-081100-1001 | Skladem | 93,22 Kč | ||
| 10 | FRONT LH BRAKE CALIPER 5GYV-081300-1000 | Skladem | 6 401,00 Kč | ||
| 11 | REAR RH BRAKE CALIPER 5DYV-081600-1200 | Skladem | 7 395,33 Kč | ||
| 12 | REAR LH BRAKE CALIPER 5DYV-081500-1200 | Skladem | 7 395,33 Kč | ||
| 13 | FRONT BRAKE FLUID PIPE 5DYV-081010-1001 | Skladem | 3 977,32 Kč | ||
| 14 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 15 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 16 | Šroub (vrut) 30102-060020810 | Skladem | 15,54 Kč | ||
| 17 | HYDRAULIC SENSOR SWITCHASSY 5HYV-080010-6000 | Skladem | 947,72 Kč | ||
| 18 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 19 | MASTER CYLINDER ASSY 5GYV-081030-1000 | Skladem | 2 501,36 Kč | ||
| 20 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 21 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 22 | RESERVOIR PIPE 1 5GYV-081040-1000 | Skladem | 170,90 Kč | ||
| 23 | FLUID RESERVOIR HOSE 2 5GYV-081050-1000 | Skladem | 170,90 Kč | ||
| 24 | FLUID RESERVOIR ASSY 5HYV-080150-6001 | Skladem | 947,72 Kč | ||
| 25 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 26 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 27 | TIE BAND CFCV-BBC001-2000-M1 | Skladem | 31,07 Kč | ||
| 28 | BRAKE PEDAL ASSEMBLY 5GYV-082100-1000 | Skladem | 1 165,23 Kč | ||
| 29 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 30 | REAR BRAKE FLUID HOSE 5DYV-081020-1200 | Skladem | 5 919,37 Kč | ||
| 31 | PARKING CABLE 5DYV-084000-1200 | Skladem | 1 677,93 Kč | ||
| 32 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 33 | PARKING BRAKE LEVER ASSY 5GYV-084100-1200 | Skladem | 2 454,75 Kč | ||
| 34 | COTTER PIN 30903-0162520 | Skladem | 15,54 Kč | ||
| 35 | PIN 30904-0602010 | Skladem | 43,52 Kč | ||
| 36 | CLIP I, LH OIL HOSE 5BY0-080001 | Skladem | 101,64 Kč | ||
