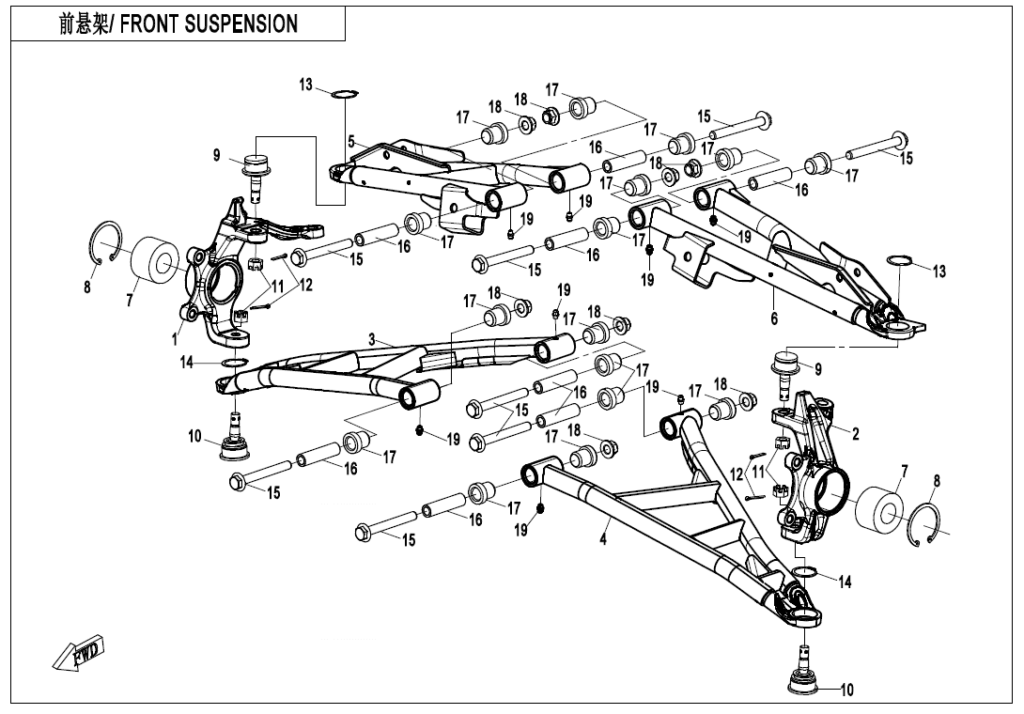

F05-1 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | STEERING KNUCKLE,RH 5BYV-050801-8000 | Není skladem | |||
| 2 | STEERING KNUCKLE,LH 5BYV-050701-8000 | Není skladem | |||
| 3 | FRONT RH LOWER SWING ARM ASSY 5BYV-050410-8000-0BP00 | Skladem | 2 703,33 Kč | ||
| 4 | FRONT LH LOWER SWING ARM ASSY 5BYV-050210-8000-0BP00 | Skladem | 2 703,33 Kč | ||
| 5 | FRONT RH UPPER SWING ARM ASSY 5BYV-050310-8000-0BP00 | Skladem | |||
| 5 | FRONT RH UPPER SWING ARM ASSY 5BYV-050310-8002-0BP00 | Skladem | 2 532,43 Kč | ||
| 6 | FRONT LH UPPER SWING ARM ASSY 5BYV-050110-8000-0BP00 | Skladem | |||
| 6 | FRONT LH UPPER SWING ARM ASSY 5BYV-050110-8002-0BP00 | Skladem | 2 532,43 Kč | ||
| 7 | HUB BEARING 30411-03080 | Skladem | 1 475,96 Kč | ||
| 7 | HUB BEARING 30411-03081 | Skladem | 963,26 Kč | ||
| 8 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 9 | MAIN PIN COMP. 9030-050600-10000 | Skladem | 1 009,87 Kč | ||
| 10 | BALL PIN COMP. 9060-050900-10000 | Skladem | 1 009,87 Kč | ||
| 11 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 12 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 13 | CIRCLIPS FOR SHAFT32 30801-03205 | Skladem | 15,54 Kč | ||
| 14 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 15 | Šroub 30024-122100110 | Není skladem | |||
| 16 | SHORT MIDDLE SPACER, SWING ARM 5SYV-060201-6000 | Skladem | 159,72 Kč | ||
| 17 | SHORT BUSHING, SWING ARM 5SYV-060202-6000 | Skladem | 108,75 Kč | ||
| 18 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 19 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
