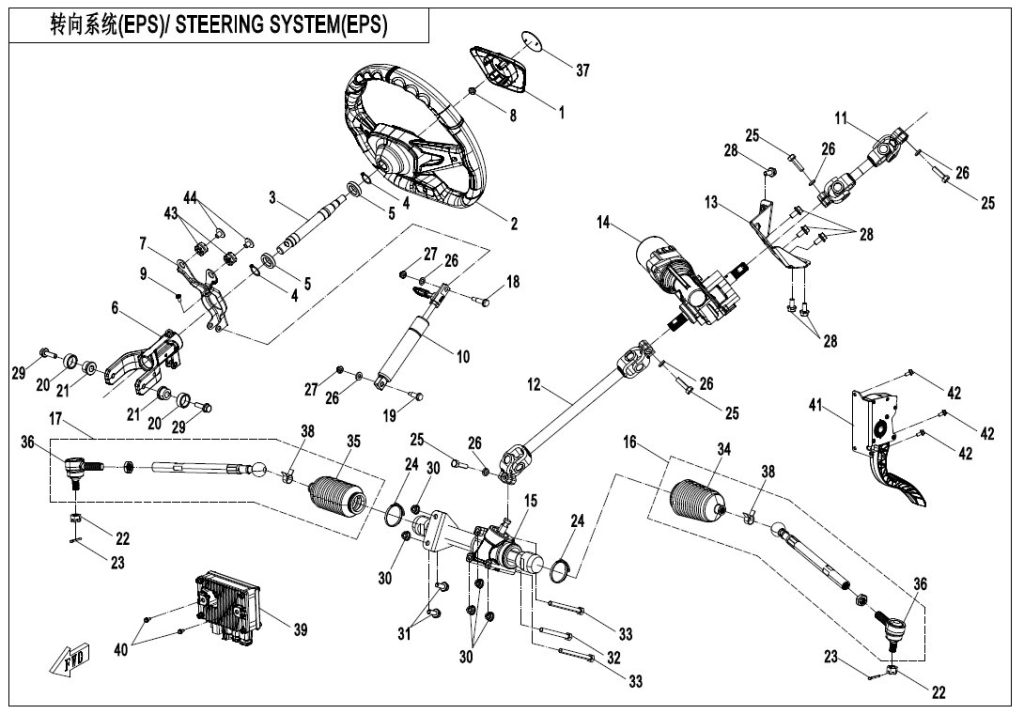

F10 STEERING SYSTEM(EPS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | PRESS COVER, STEERING WHEEL 5BYV-102001-A100 | Skladem | 155,36 Kč | ||
| 02 | STEERING WHEEL 5BYV-102100-A100 | Skladem | 3 153,89 Kč | ||
| 03 | STEERING COLUMN 5HYV-107300-6000 | Skladem | 776,82 Kč | ||
| 04 | CIRCLIPS FOR SHAFT20 30801-02005 | Skladem | 15,54 Kč | ||
| 05 | Ložisko 30400-02005 | Skladem | 77,68 Kč | ||
| 06 | STEERING WHEEL BRACKET_MIDNIGHT BLACK 5HYV-102200-6000-0BV00 | Skladem | 1 662,39 Kč | ||
| 07 | DASHBOARD BRACKET 5BWV-102301-1200-0BP00 | Skladem | 295,19 Kč | ||
| 08 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 09 | SCREW M5x10 30105-050010410 | Skladem | 15,54 Kč | ||
| 10 | GAS SPRING ASSY 5BWV-102000-5001 | Skladem | 823,43 Kč | ||
| 11 | UPPER STEERING UNIVERSAL SHAFT 5BWV-103100-5100 | Skladem | 1 522,57 Kč | ||
| 12 | LOWER STEERING UNIVERSAL SHAFT 5BWV-103200-5100 | Skladem | 2 206,17 Kč | ||
| 13 | BRACKET, EPS 5BWV-103500-5100 | Skladem | 201,97 Kč | ||
| 14 | EPS MOTOR 5BWV-150820-5101 | Skladem | 18 457,24 Kč | ||
| 15 | STEERING MOTOR ASSY 5BYV-104060-1000 | Skladem | 3 790,88 Kč | ||
| 16 | LH STEERING ROD ASSY 7000-104100-50000 | Skladem | 2 812,09 Kč | ||
| 17 | RH STEERING ROD ASSY 7000-104200-50000 | Skladem | 2 812,09 Kč | ||
| 18 | AIR SPRING UPPER FIXED BOLT 5HYV-103001-6000 | Skladem | 31,07 Kč | ||
| 19 | LOWER LOCK BOLT, GAS SPRING 9060-102003-00002 | Není skladem | 46,61 Kč | ||
| 20 | SLEEVE, MOUNT PLATE 9060-100008-00001 | Skladem | 31,07 Kč | ||
| 21 | NYLON BUSHING, STEERING COLUMN 9060-100009 | Skladem | 174,09 Kč | ||
| 22 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 23 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 24 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 25 | Šroub 30004-080030810 | Skladem | 29,02 Kč | ||
| 26 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 27 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 28 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 29 | BOLT M8x28 30006-080028810 | Skladem | 15,54 Kč | ||
| 30 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 31 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 32 | Šroub 30006-080080810 | Skladem | 31,07 Kč | ||
| 33 | Šroub 30019-080090810 | Skladem | 31,07 Kč | ||
| 34 | LH PROTECTION SLEEVE, TIE ROD 5BY0-104101 | Skladem | 341,80 Kč | ||
| 35 | RH PROTECTION SLEEVE, TIE ROD 5BY0-104201 | Skladem | 341,80 Kč | ||
| 36 | HITCH BALL ASSY SQM 5BY0-104120 | Skladem | 986,54 Kč | ||
| 37 | CFMOTO STICKER 5ASV-190019-6000 | Skladem | 295,19 Kč | ||
| 38 | CLAMP 5BY0-104102 | Skladem | 31,07 Kč | ||
| 39 | EPS CONTROLLER 5BWV-150810-5101 | Skladem | 10 797,80 Kč | ||
| 39 | EPS CONTROLLER 5BYV-150810-2500 | Skladem | 11 108,53 Kč | ||
| 40 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 41 | E-THROTTLE PEDAL 5BWV-152800-5000 | Skladem | 4 909,50 Kč | ||
| 42 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
