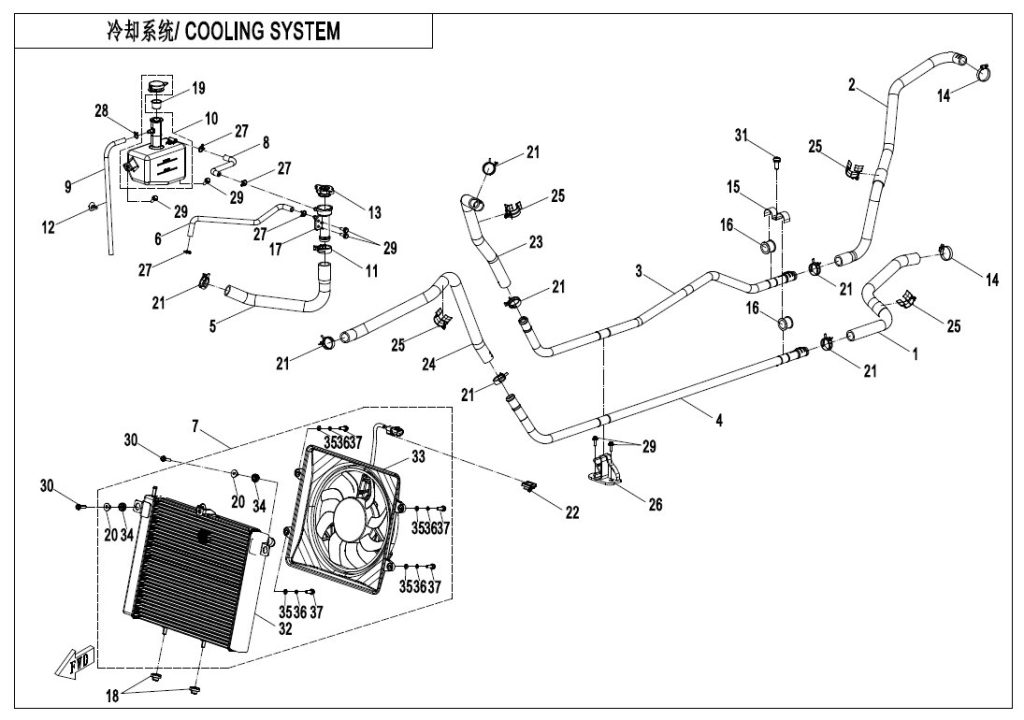

F18 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | WATER INLET PIPE, ENGINE 5BWV-180003-5000 | Skladem | 419,48 Kč | ||
| 02 | WATER OUTLET PIPE, ENGINE 5BWV-180004-5000 | Skladem | 559,31 Kč | ||
| 03 | WATER INLET PIPE, ALUMINUM 5BWV-180005-5000 | Není skladem | 559,31 Kč | ||
| 04 | WATER OUTLET PIPE, ALUMINUM 5BWV-180006-5000 | Není skladem | 528,24 Kč | ||
| 05 | JOINT PIPE, WATER FILLER 5BWV-180007-5000 | Skladem | 326,26 Kč | ||
| 06 | OVERFLOW HOSE, RADIATOR 5BWV-180008-5000 | Skladem | 116,16 Kč | ||
| 07 | RADIATOR ASSY 5BWV-181000-5000 | Skladem | 10 891,02 Kč | ||
| 08 | CONNECTING PIPE, RESERVOIR TANK 5HY0-180003 | Skladem | 62,15 Kč | ||
| 09 | OVERFLOW HOSE, RESERVOIR 5HY0-180008 | Skladem | 46,61 Kč | ||
| 10 | RESERVOIR TANK ASSY 5HY0-180010 | Skladem | 435,02 Kč | ||
| 11 | STEEL BAND CLAMP 34 7000-180007-00001 | Skladem | 101,56 Kč | ||
| 12 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 13 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 14 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 15 | CLASP,WATER HOSE 9030-180006 | Skladem | 15,54 Kč | ||
| 16 | RUBBER COLLAR,WATER HOSE 9030-180009 | Není skladem | 31,07 Kč | ||
| 17 | WATER FILLING PORT 9060-180025-1000 | Skladem | 217,51 Kč | ||
| 18 | PIN RUBBER CAP, RADIATOR 9060-180026 | Skladem | 43,52 Kč | ||
| 19 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 20 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 21 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
| 22 | CLIP CFCV-CAC002-2000-M1 | Skladem | 31,07 Kč | ||
| 23 | WATER INLET PIPE, RADIATOR 5BWV-180001-5000 | Skladem | 512,70 Kč | ||
| 24 | WATER OUTLET PIPE, RADIATOR 5BWV-180002-5000 | Skladem | 512,70 Kč | ||
| 25 | HOSE CLIP 5ASV-180008-6000 | Skladem | 46,61 Kč | ||
| 26 | BRACKET, WATER PIPE 5BWV-043054-5000 | Skladem | 116,16 Kč | ||
| 27 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 28 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
| 29 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 30 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 31 | SCREW COMP 30112-060016410 | Skladem | 31,07 Kč | ||
| 32 | RADIATOR 5BWV-181100-5000 | Není skladem | 6 028,12 Kč | ||
| 33 | FAN MOTOR 5BWV-181200-5000 | Skladem | 4 458,95 Kč | ||
| 34 | DAMPING RUBBER MAT 6KM#-181001-8001 | Skladem | 46,61 Kč | ||
| 35 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 36 | Podložka 30303-060920 | Skladem | 15,54 Kč | ||
| 37 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
