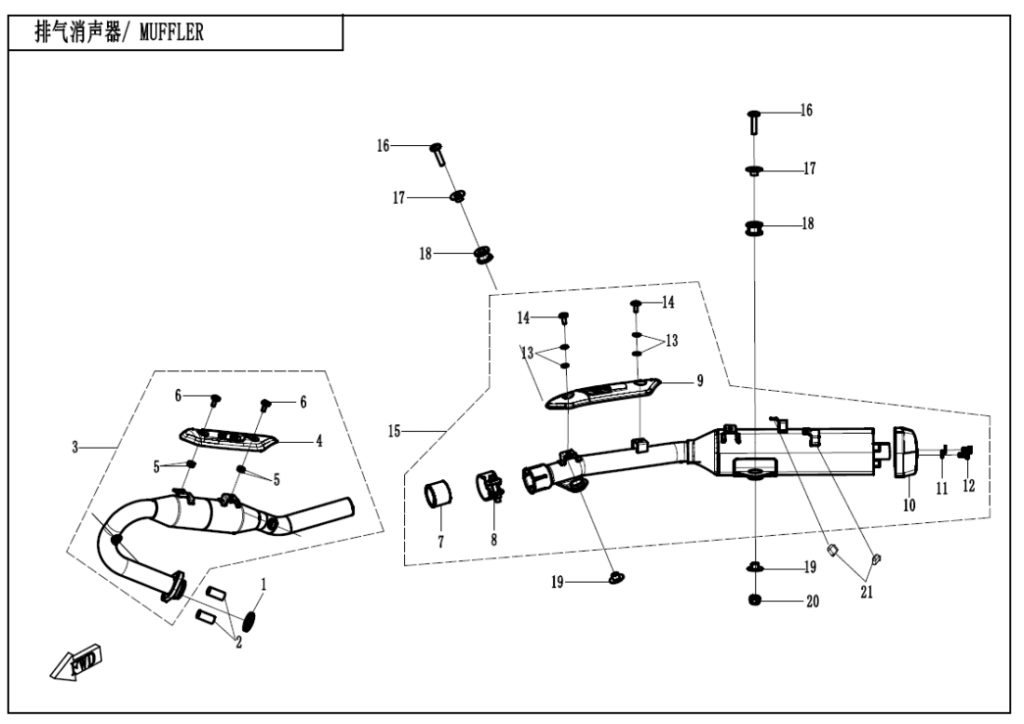

F02 MUFLLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | EXHAUST PIPE GASKET 6KIV-020001-2000 | Skladem | 31,07 Kč | ||
| 2 | EXHAUST PIPE NUT 6KIV-021001-2000 | Skladem | 31,07 Kč | ||
| 3 | EXHAUST PIPE ASSY 6KIV-021100-2000-0D700 | Skladem | 8 778,07 Kč | ||
| 3 | EXHAUST PIPE ASSY 6KIV-021100-2001-0D700 | Skladem | 10 844,41 Kč | ||
| 4 | EXHAUST PIPE GUARD 6KIV-021140-2000 | Skladem | 233,05 Kč | ||
| 5 | WIRE MESH PAD 6KIV-021100-2000-33 | Skladem | 15,54 Kč | ||
| 6 | INNER HEX SCREW M6x12 6WWV-046703-5000 | Skladem | 15,54 Kč | ||
| 7 | GRAPHITE SEAL RING 6KIV-021300-2000-40 | Skladem | 62,15 Kč | ||
| 8 | CLAMP ASSY 6KIV-021300-2000-33 | Skladem | 93,22 Kč | ||
| 9 | GUARD 6KIV-021320-2000 | Skladem | 170,90 Kč | ||
| 10 | TAIL COVER 6KIV-021301-2000 | Skladem | 559,31 Kč | ||
| 11 | CIRCLIP 6KIV-021300-2000-38 | Skladem | 15,54 Kč | ||
| 13 | WIRE MESH PAD 6KIV-021300-2000-39 | Skladem | 15,54 Kč | ||
| 15 | MUFFLER ASSY 6KIV-021300-2000-0D700 | Skladem | 4 241,44 Kč | ||
| 15 | MUFFLER BODY ASSY 6KIV-021300-2001-0D700 | Skladem | 4 241,44 Kč | ||
| 16 | SCREW 6ARV-020004-1000 | Skladem | 31,07 Kč | ||
| 17 | Pouzdro 6GU#-020002-6001 | Skladem | 31,07 Kč | ||
| 18 | DAMPER, MUFFLER A000-020004 | Skladem | 46,61 Kč | ||
| 19 | MUFFLER BUSHING 6KIV-020002-2000 | Skladem | 31,07 Kč | ||
| 20 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 21 | GUARD RUBBER SLEEVE 6GU#-021005-6000 | Skladem | 46,61 Kč | ||
