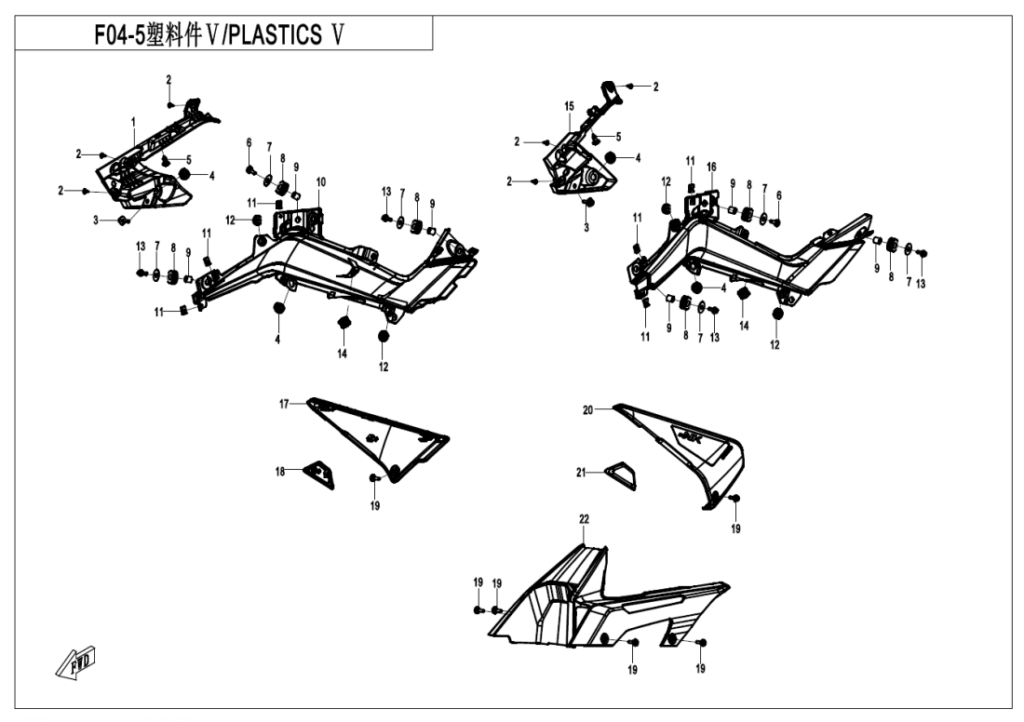

F04-5 PLASTICSⅤ
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RESERVOIR RH INNER PANEL 6KIV-041301-2000 | Skladem | 186,44 Kč | ||
| 02 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 03 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 04 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 05 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 06 | INNER HEX SCREW M6x20 A000-040703 | Skladem | 31,07 Kč | ||
| 07 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 08 | DAMPER RUBBER 6090-040302 | Skladem | 15,54 Kč | ||
| 09 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
| 10 | RH PANEL ASSY 6KIV-041710-2000 | Skladem | 1 211,84 Kč | ||
| 11 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 12 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 13 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 14 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 15 | RESERVOIR LH INNER PANEL 6KIV-041201-2000 | Skladem | 186,44 Kč | ||
| 16 | LH PANEL ASSY 6KIV-041610-2000 | Skladem | 1 211,84 Kč | ||
| 17 | FRAME RH PANEL 6KIV-043101-2000 | Skladem | 170,90 Kč | ||
| 18 | FRAME RH DECO COVER 6KIV-041501-2000 | Skladem | 31,07 Kč | ||
| 19 | MOUNTING SCREW, CHAIN GUARD 6NQ#-000205-6001 | Skladem | 29,02 Kč | ||
| 20 | FRAME LH PANEL 6KIV-043001-2000 | Skladem | 217,51 Kč | ||
| 21 | FRAME LH DECO COVER 6KIV-041401-2000 | Skladem | 31,07 Kč | ||
| 22 | REAR INNER FENDER 6KIV-060007-2000 | Skladem | 497,16 Kč | ||
