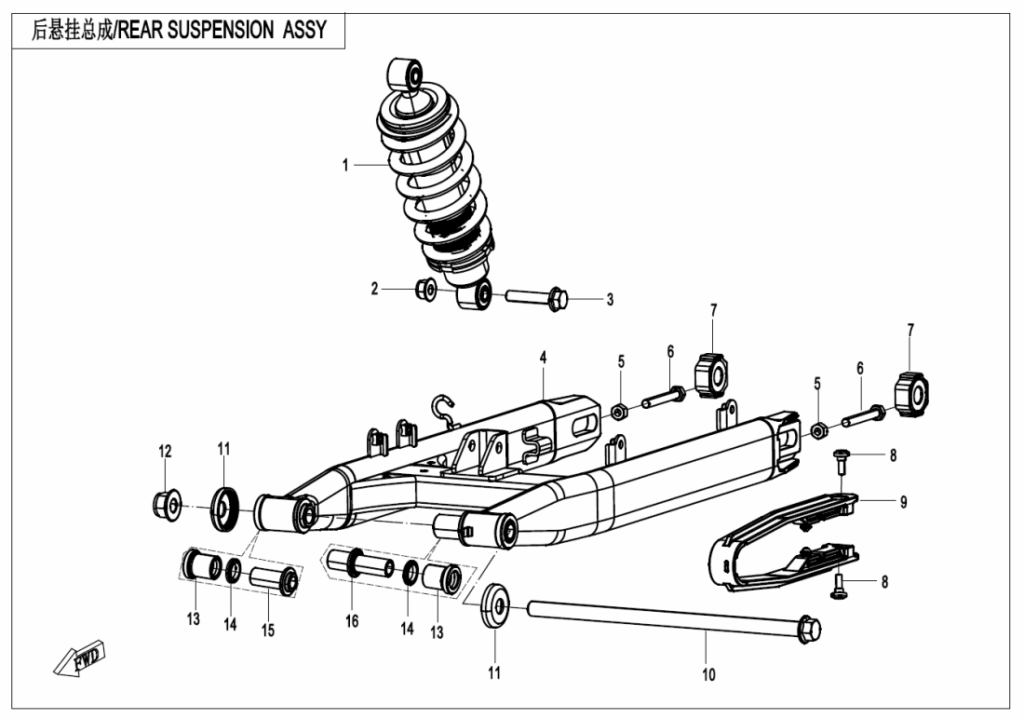

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR SHOCK ABSORBER 6KIV-060100-2000-M1 | Skladem | 4 785,21 Kč | ||
| 02 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 03 | BOLT M10x1.25×50 30006-102050810 | Skladem | 43,52 Kč | ||
| 04 | REAR FORK ASSY 6KIV-062300-2000-0BP00 | Skladem | 5 562,03 Kč | ||
| 05 | NUT M8 30200-080810 | Skladem | 29,02 Kč | ||
| 06 | BOLT M8x60 30004-080060810 | Skladem | 31,07 Kč | ||
| 07 | ADJUSTING BLOCK 6KJ0-060002-1BP00 | Skladem | 170,90 Kč | ||
| 08 | MOUNTING SCREW, CHAIN GUARD 6NQ#-000205-6001 | Skladem | 29,02 Kč | ||
| 09 | CHAIN GUARD 6KIV-060201-2000 | Skladem | 310,73 Kč | ||
| 10 | REAR FORK SHAFT 6KIV-060001-2000 | Skladem | 264,12 Kč | ||
| 11 | DUST BOOT COVER 1, REAR SWING ARM 6KMV-060010-8001 | Skladem | 116,06 Kč | ||
| 12 | NUT M14x1.5 30204-143810 | Skladem | 43,52 Kč | ||
| 13 | OUTER BUSHING, REAR SWING ARM 6100-060008 | Skladem | 108,75 Kč | ||
| 14 | ANTI-DUST RING 6090-060005 | Skladem | 62,15 Kč | ||
| 15 | RH INNER BUSHING, REAR FORK 6KJ0-060004-00001 | Skladem | 275,65 Kč | ||
| 16 | LH INNER BUSHING, REAR SWING ARM 6KJ0-060003-00001 | Skladem | 279,66 Kč | ||
